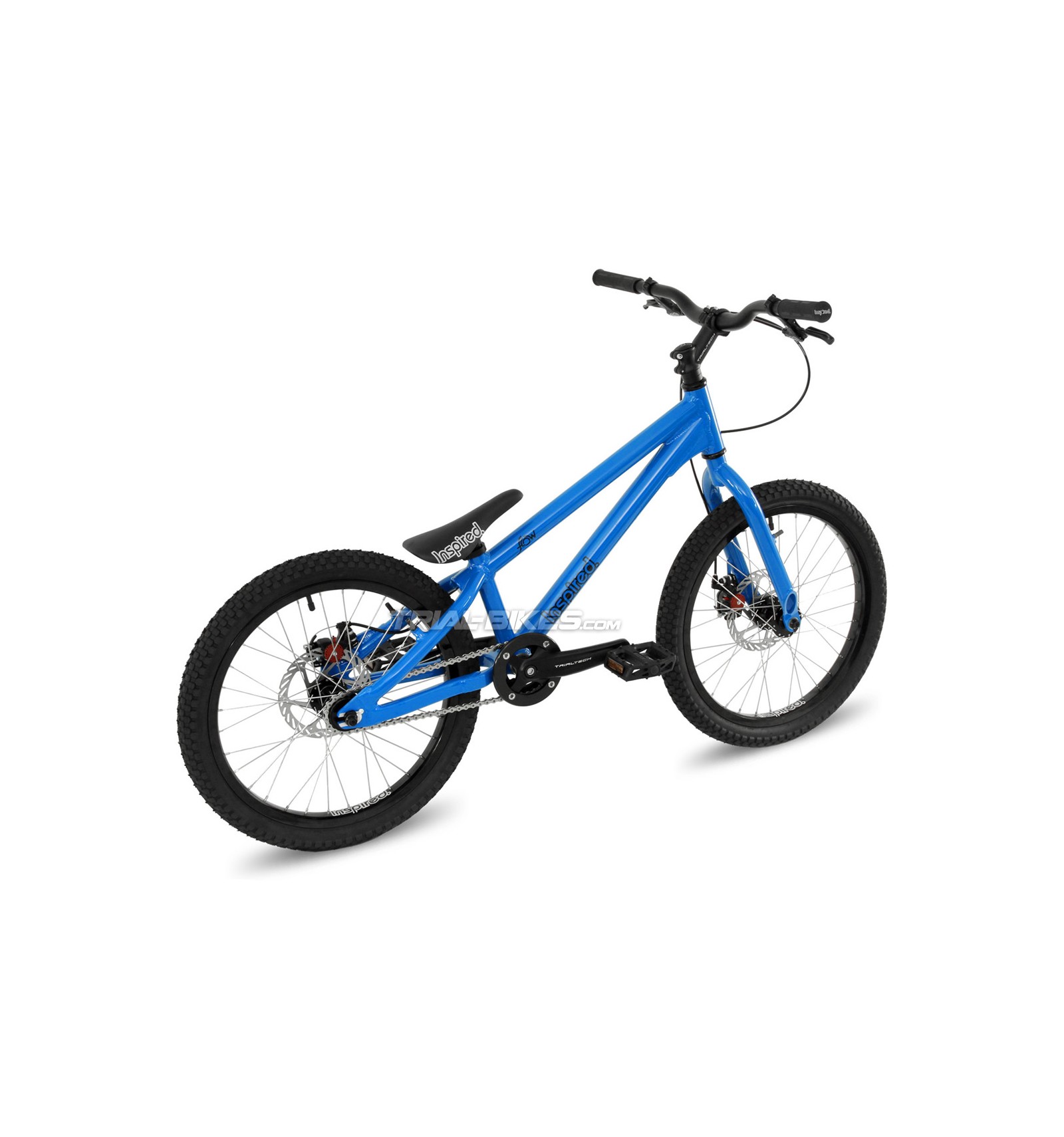

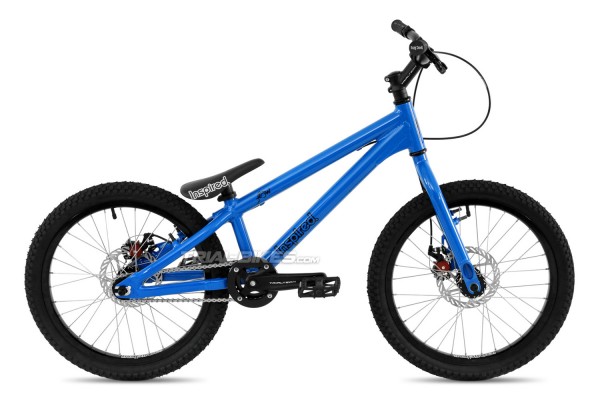

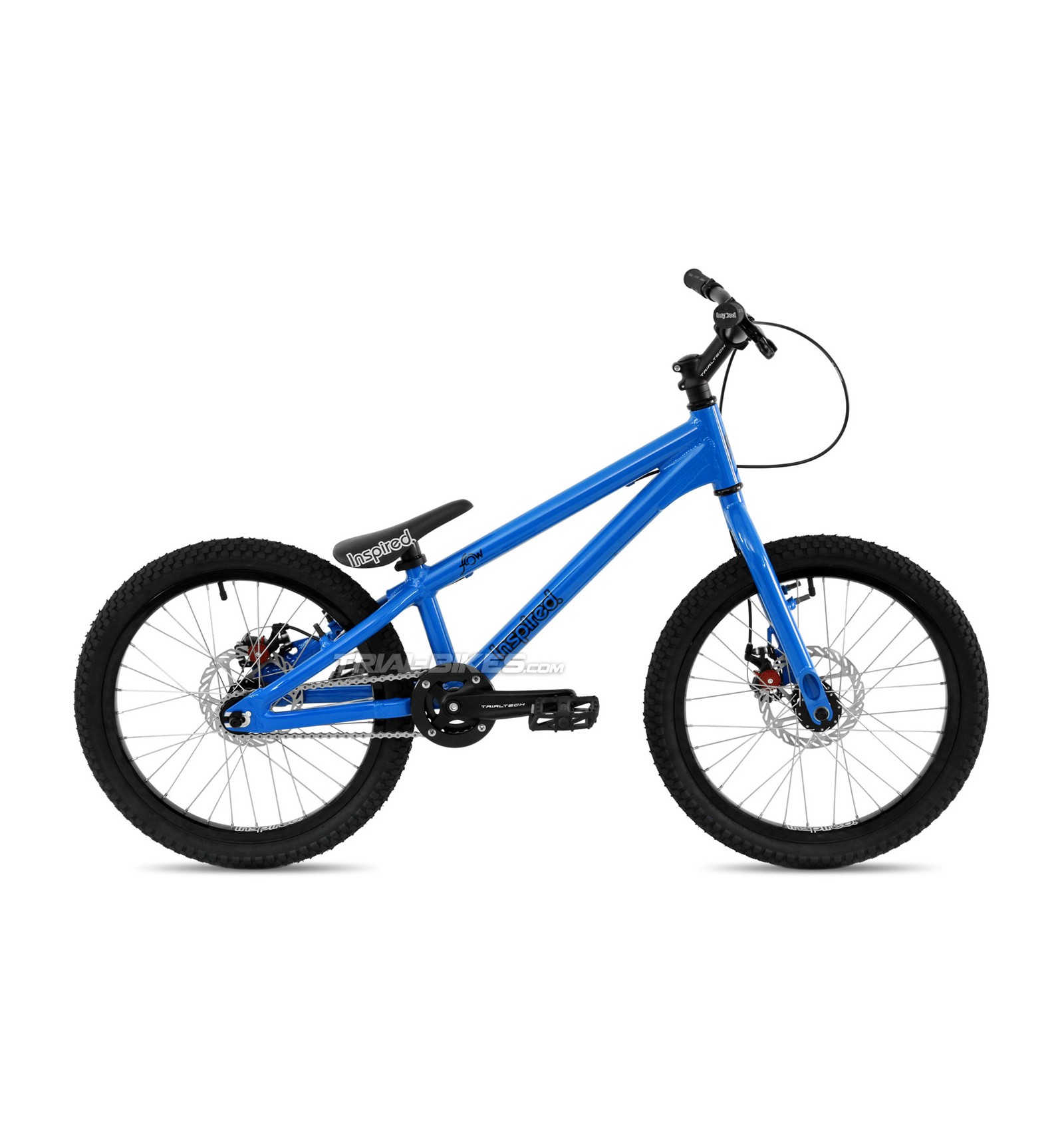

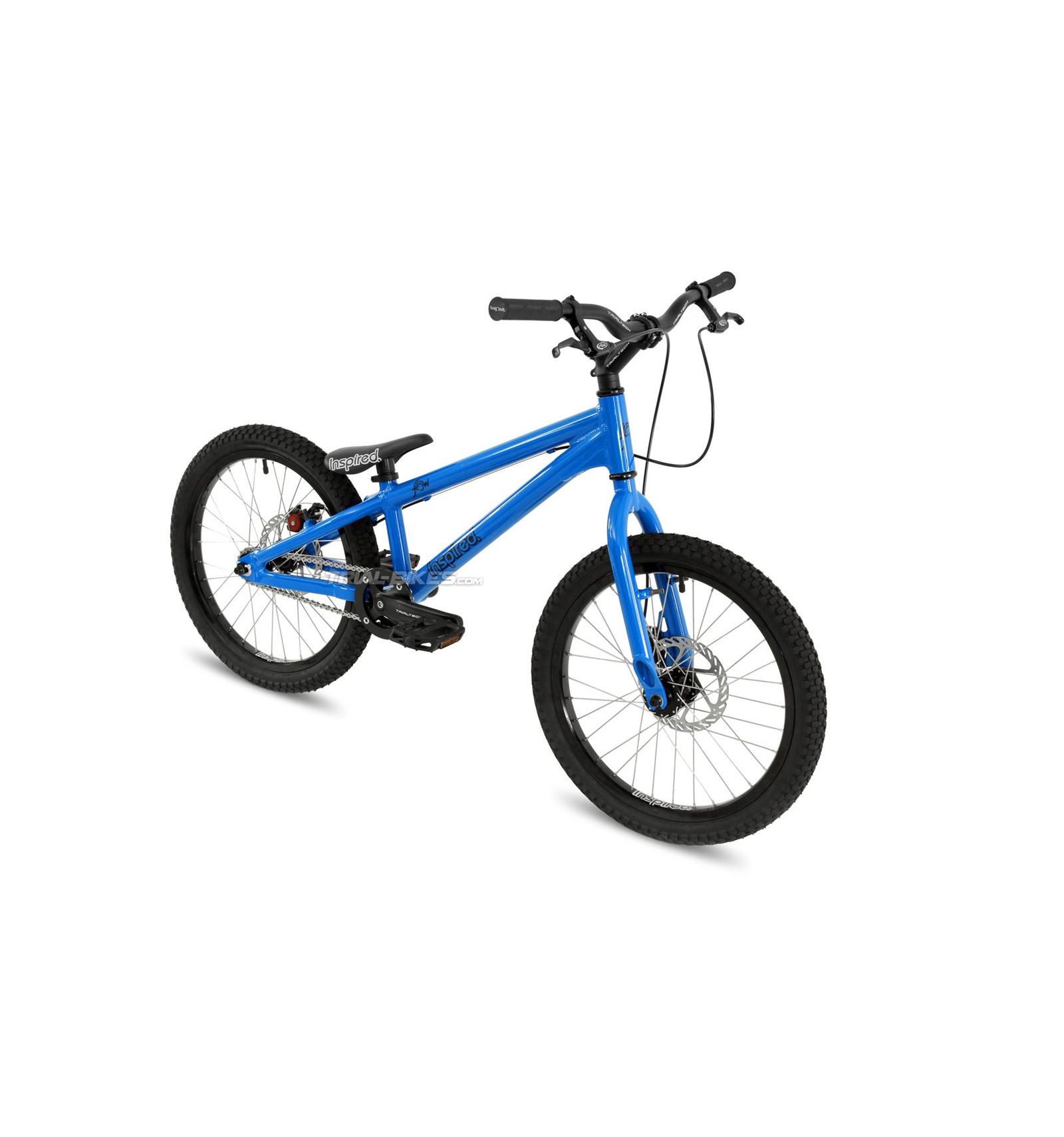

Inspired Flow 20'' 2018 Bike

The new edition of the Inspired Flow 20” bike features the popular Avid BB5 disc brakes, the kings of Street Trials! Moreover, this bike combines the great features of the 24” and 26” Inspired Street bikes, with the agility and lightness of a 20” bike. Tested and approved by Danny MacAskill himself, this bike is ideal for the young riders who want to take their first step into Street trials!

Frame and Forks

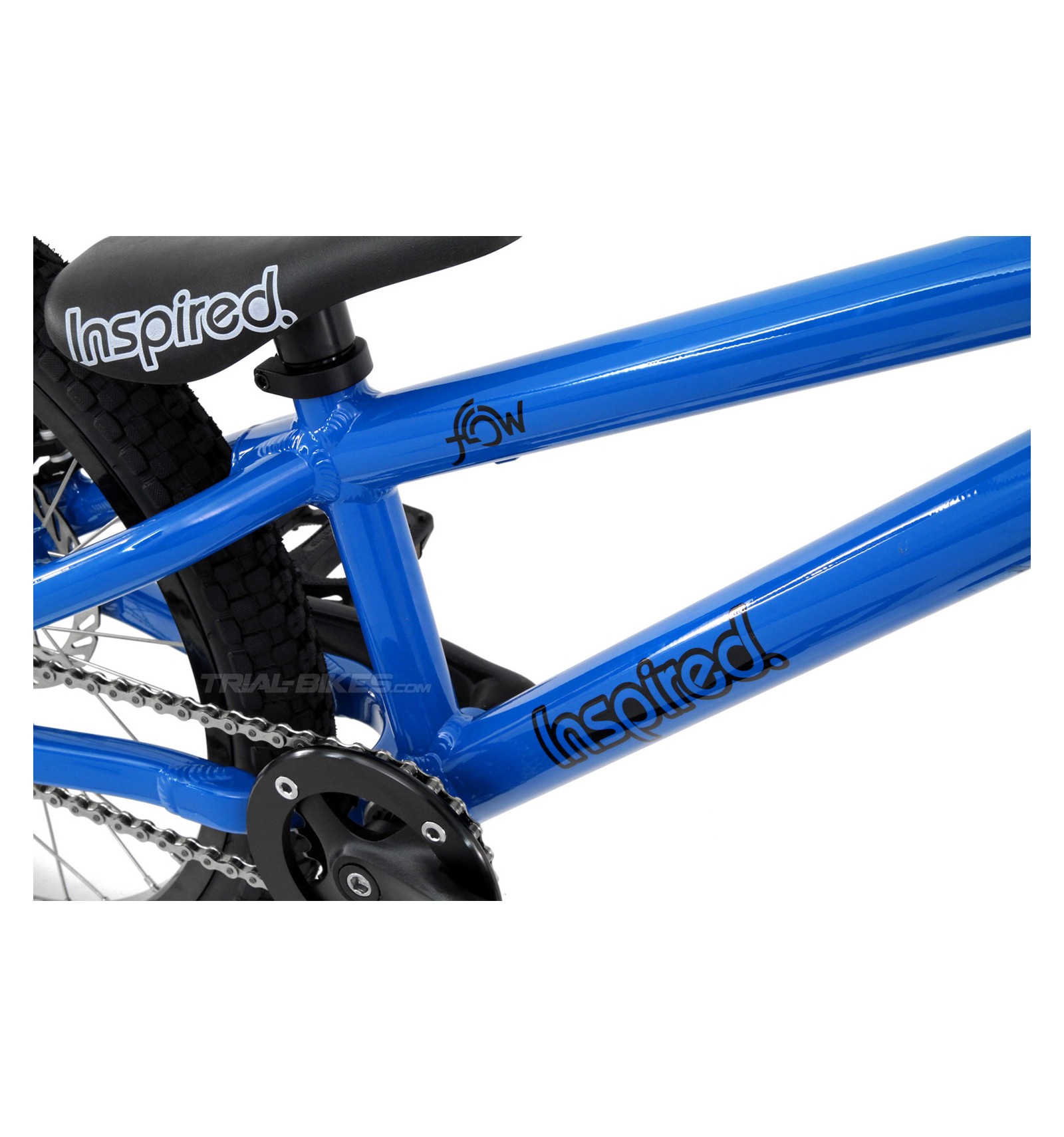

- Frame: Inspired Flow 20”, Gloss Blue
- Forks: Inspired Flow 20”, Steel, Gloss Blue

Wheels
- Front hub: Trialtech, 32h, Sealed Bearing, Black
- Rear hub: Trialtech, 32h, 135mm, Sealed Bearing, Black
- Chain tensioner: Flow Chain Tug
- Front rim: Inspired Single Wall, 20”, Black
- Rear rim: Inspired Single Wall, 20”, Black
- Spokes: Stainless PG
- Inner tube (front): Kenda
- Inner tube (rear): Kenda
- Front tyre: Kenda K-Rad 20” x 2.125”
- Rear tyre: Kenda K-Rad 20” x 2.125”

Brakes

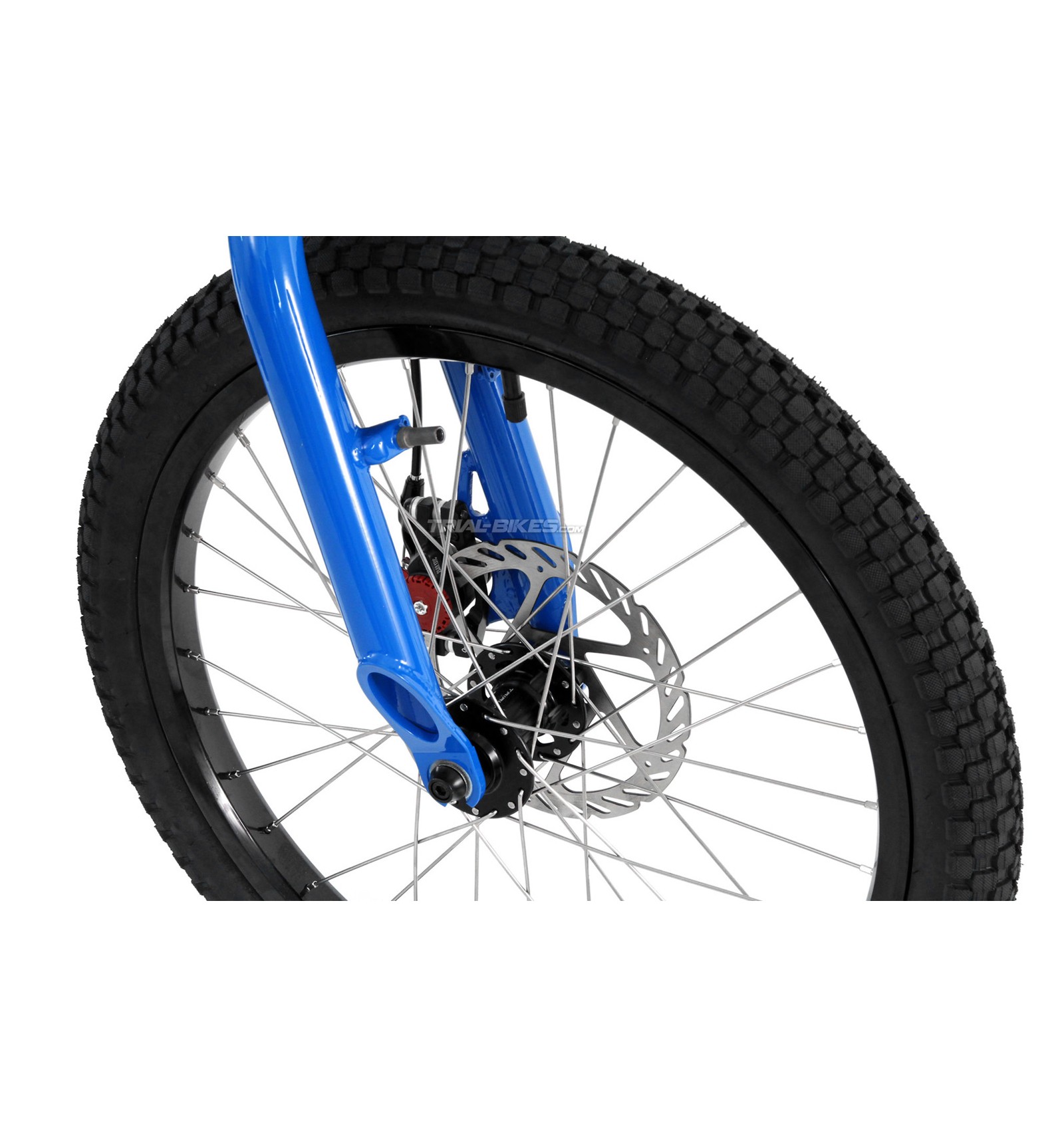

- Front brake: Avid FR5 lever, Avid BB5 caliper, 160mm rotor
- Rear brake: Avid FR5 lever, Avid BB5 caliper, 160mm rotor

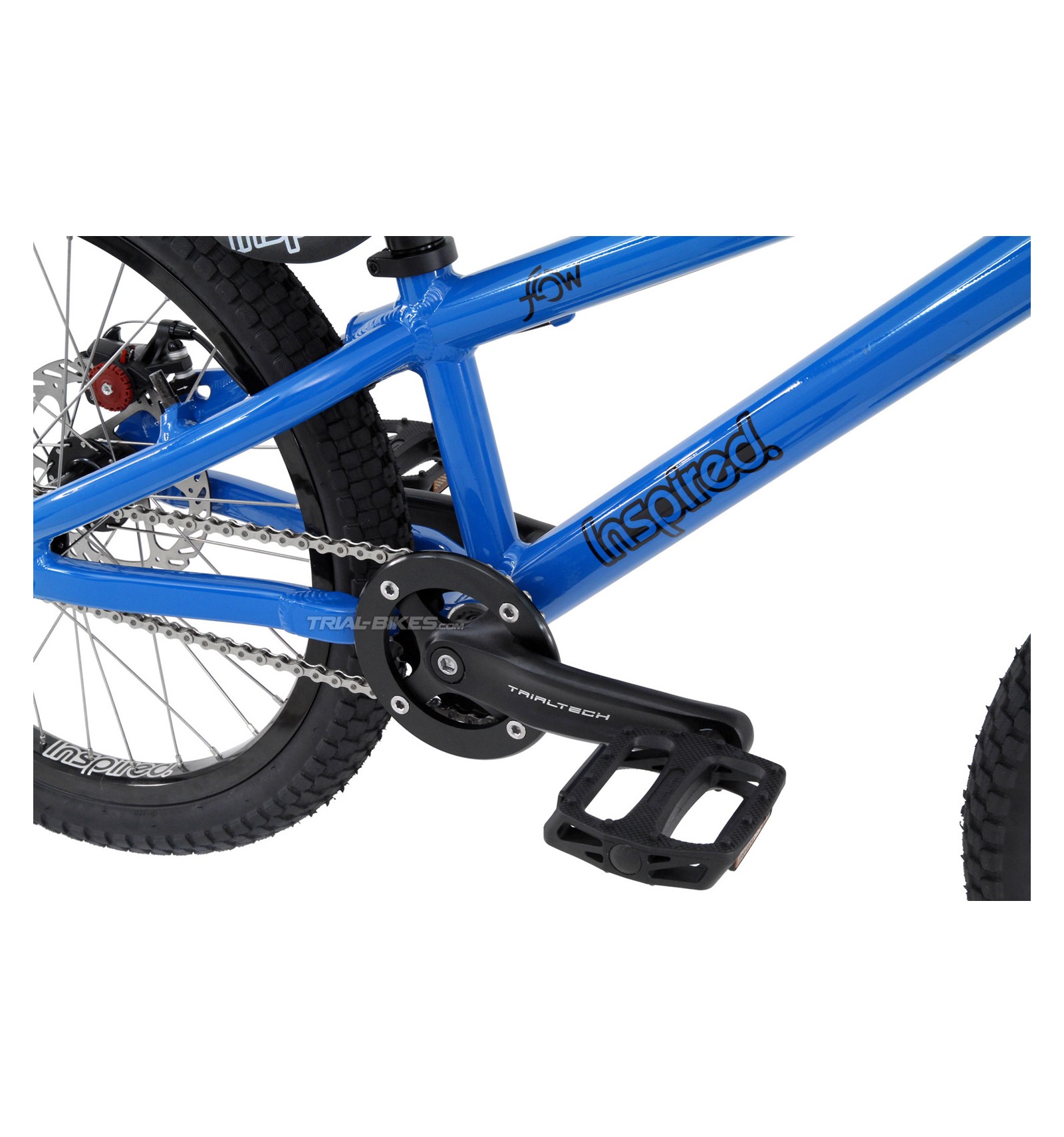

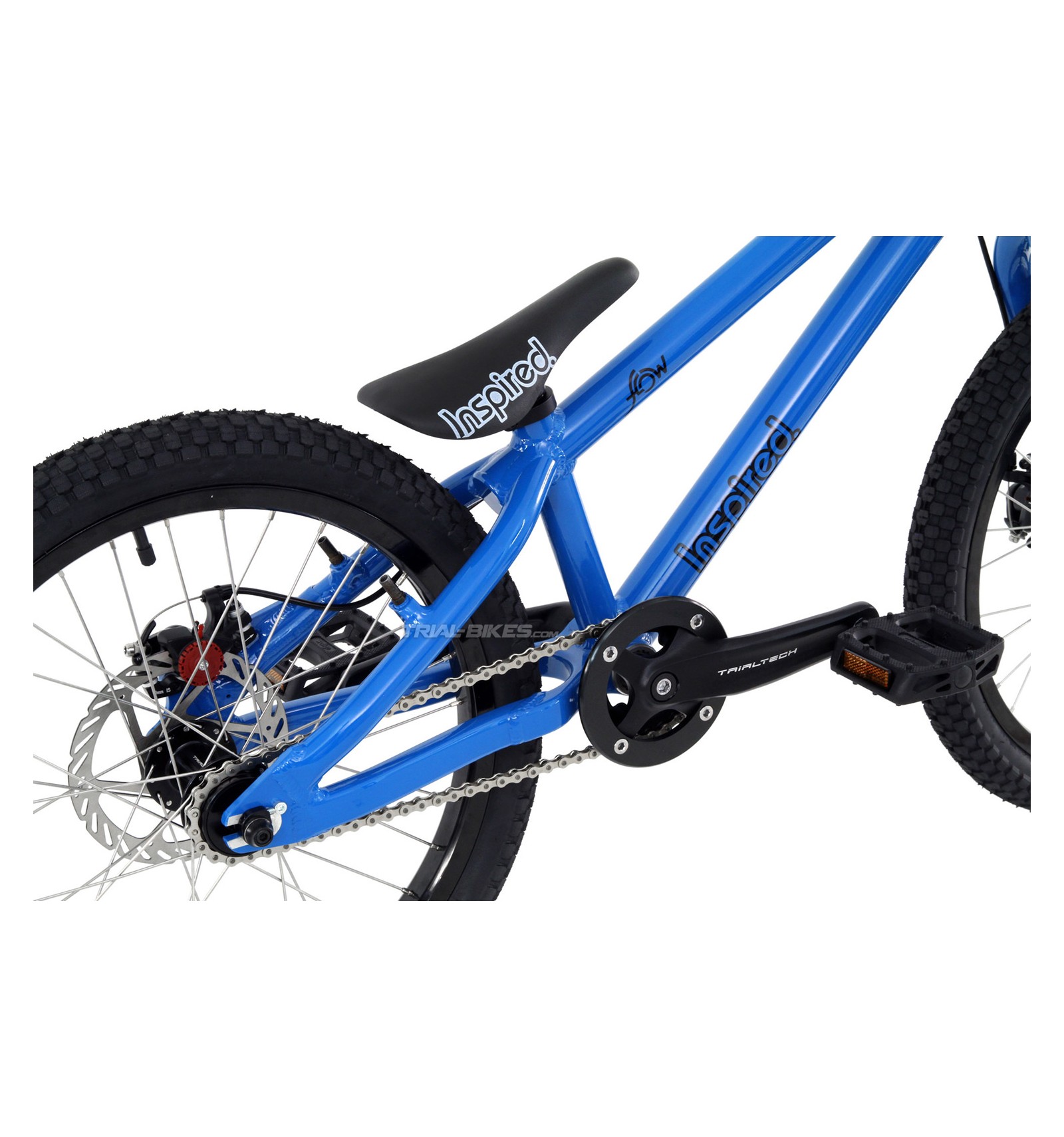

Drivetrain
- Cranks: Trialtech, 162mm, Black
- Front Sprocket: Trialtech 24T
- Chain: KMC Z410
- Freewheel: Trialtech 16T, 36 engagement points
- Pedals: Wellgo Nylon Platform, Black
- Bottom bracket: Sealed Square Taper
- Bashring: 24T Trials

Seating
- Saddle: Inspired Integrated, Black
- Seatpost: Inspired Integrated

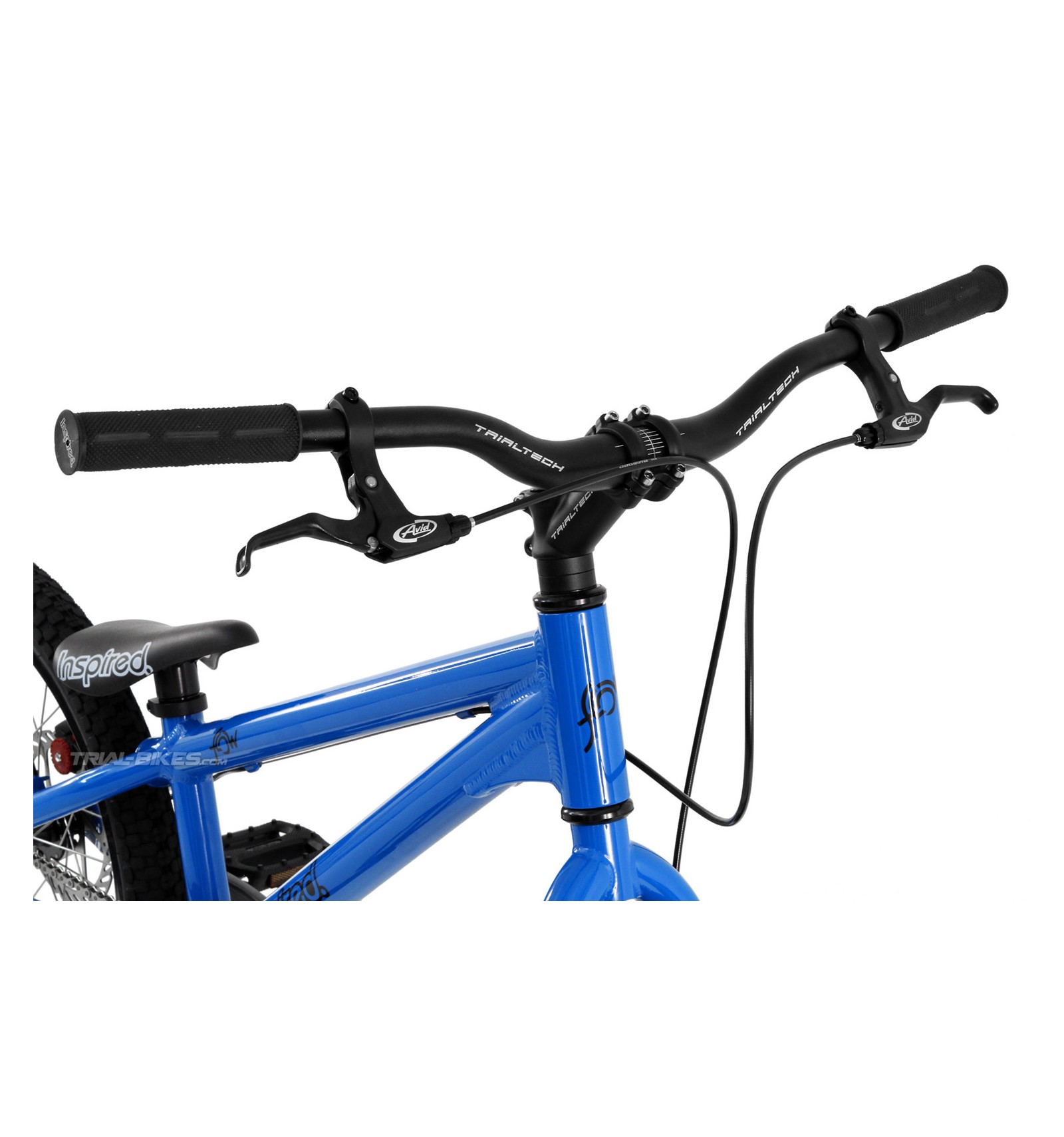

Steering
- Headset: Trialtech, 1-1/8" Standard, Black
- Stem: Trialtech Forged, 90mm x 35˚, Black
- Grips: Trialtech Race Rubber, Black
- Handlebars: Trialtech Race Riser, Black

Geometry
- Wheelbase: 850mm
- Chainstay: 320mm
- BB Height: +15mm
- Head Angle: 73˚

Weight
- 10.15kg (including pedals)

Additional information:
Some pictures may not match the item described, so please read the description carefully.
This bike is partially set up by our workshop.
If you have any doubts, please contact us on info@trial-bikes.com .
