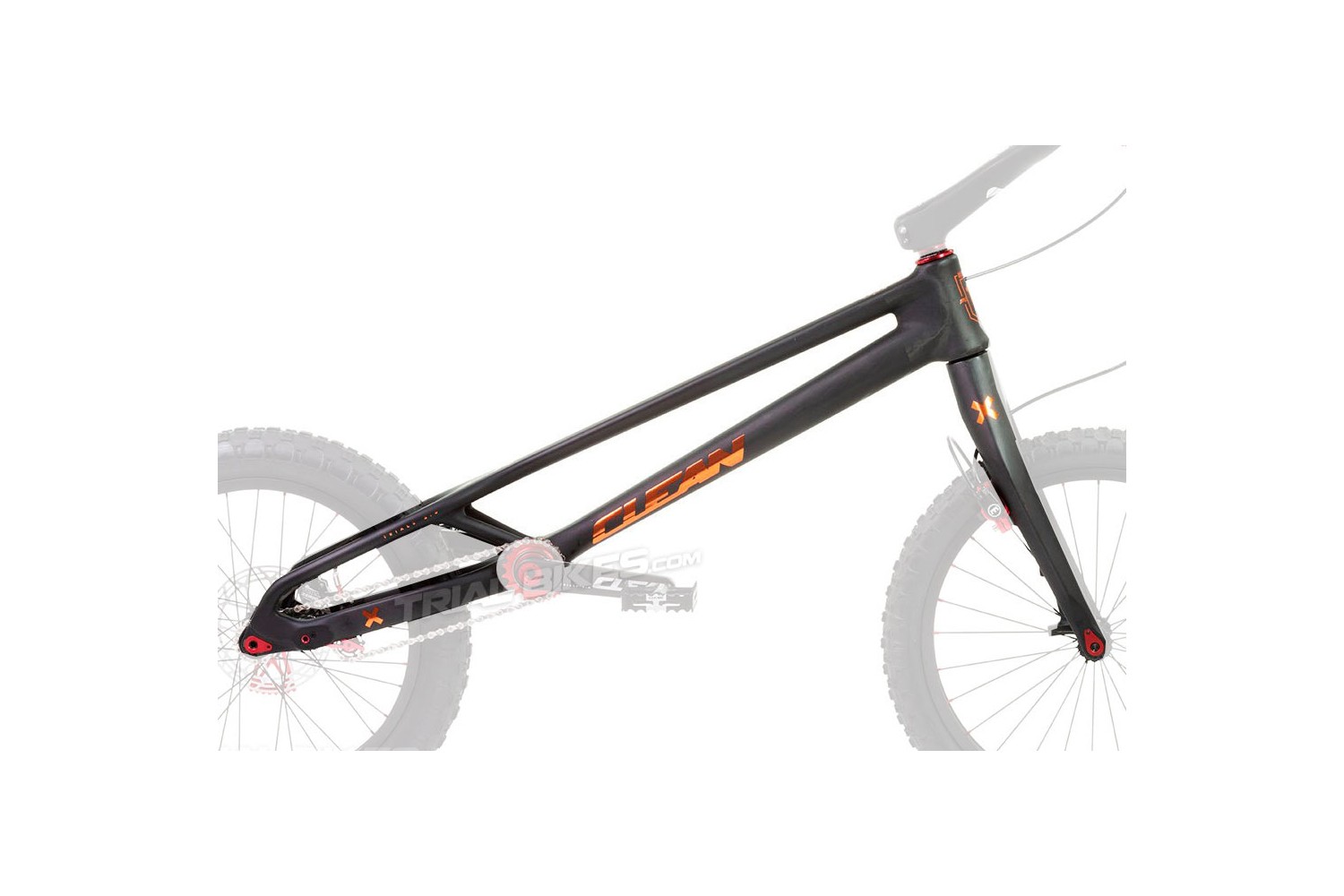

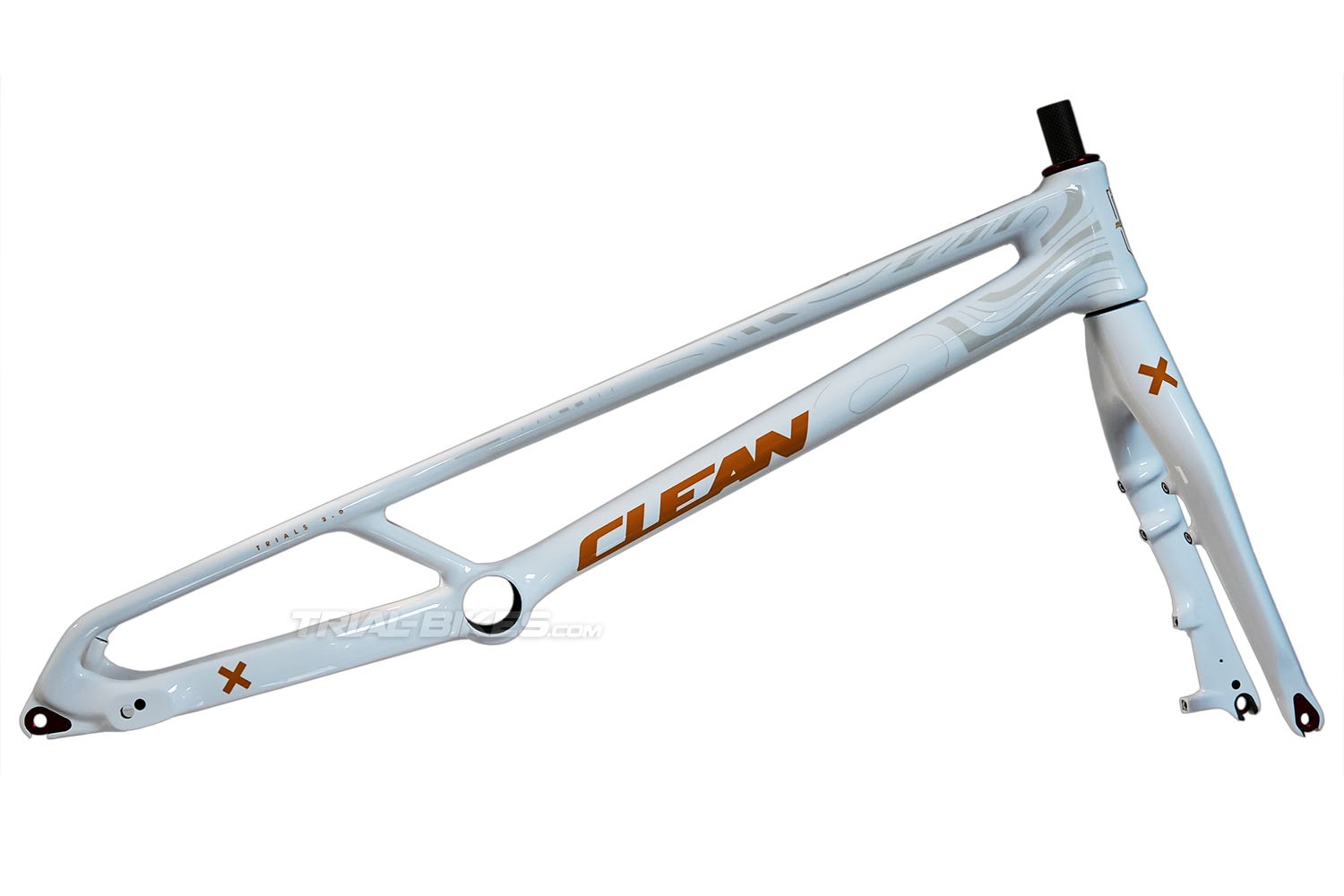

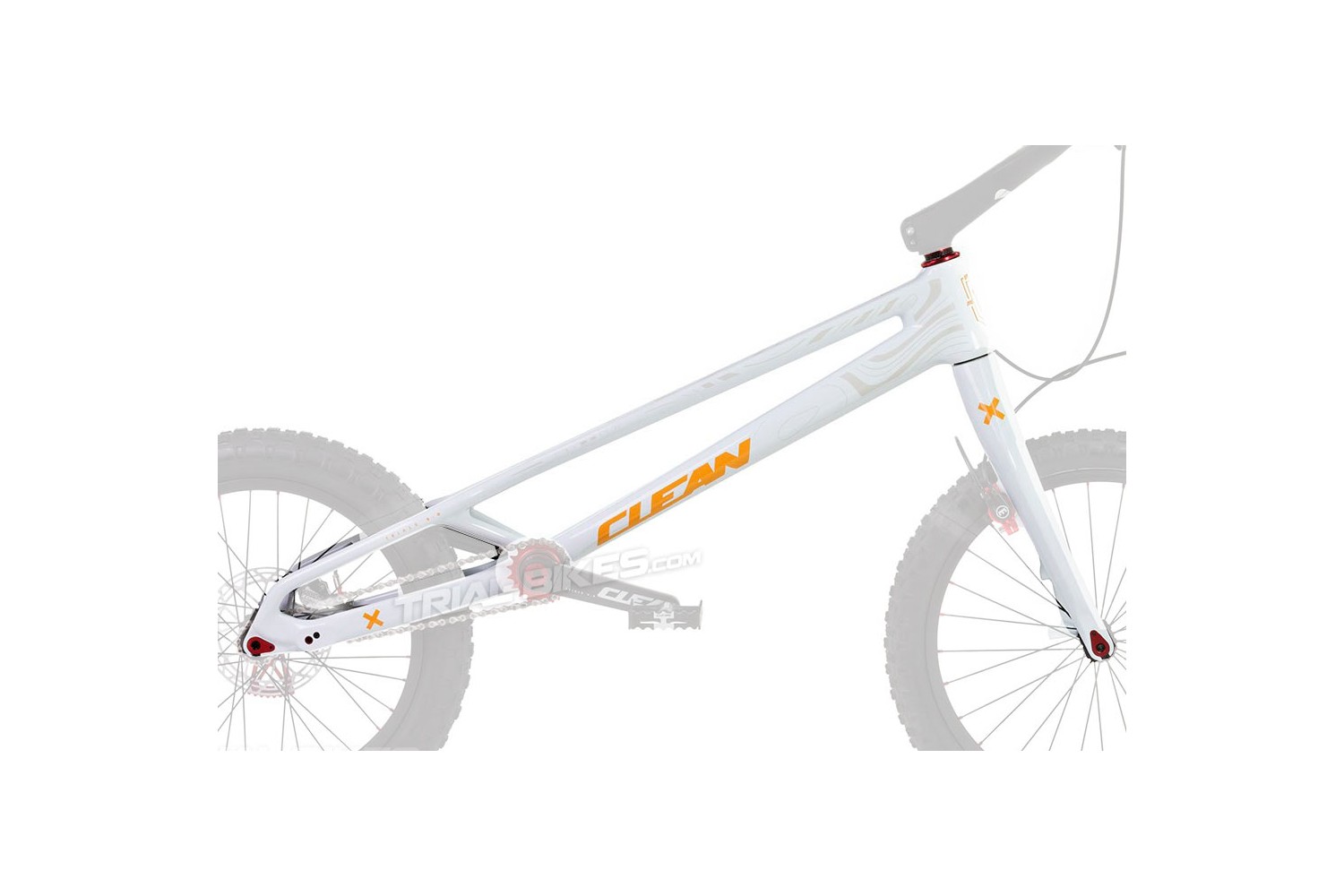

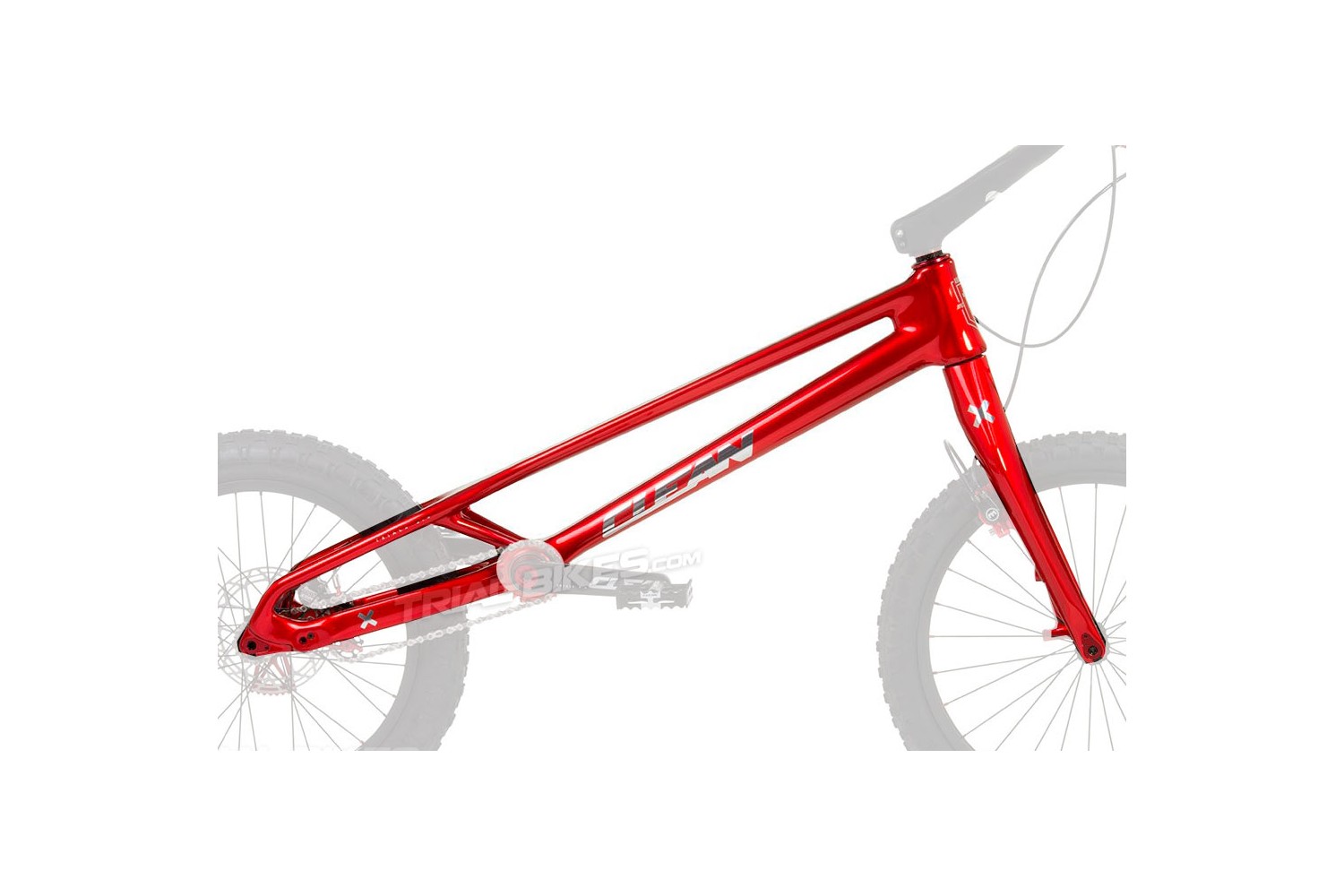

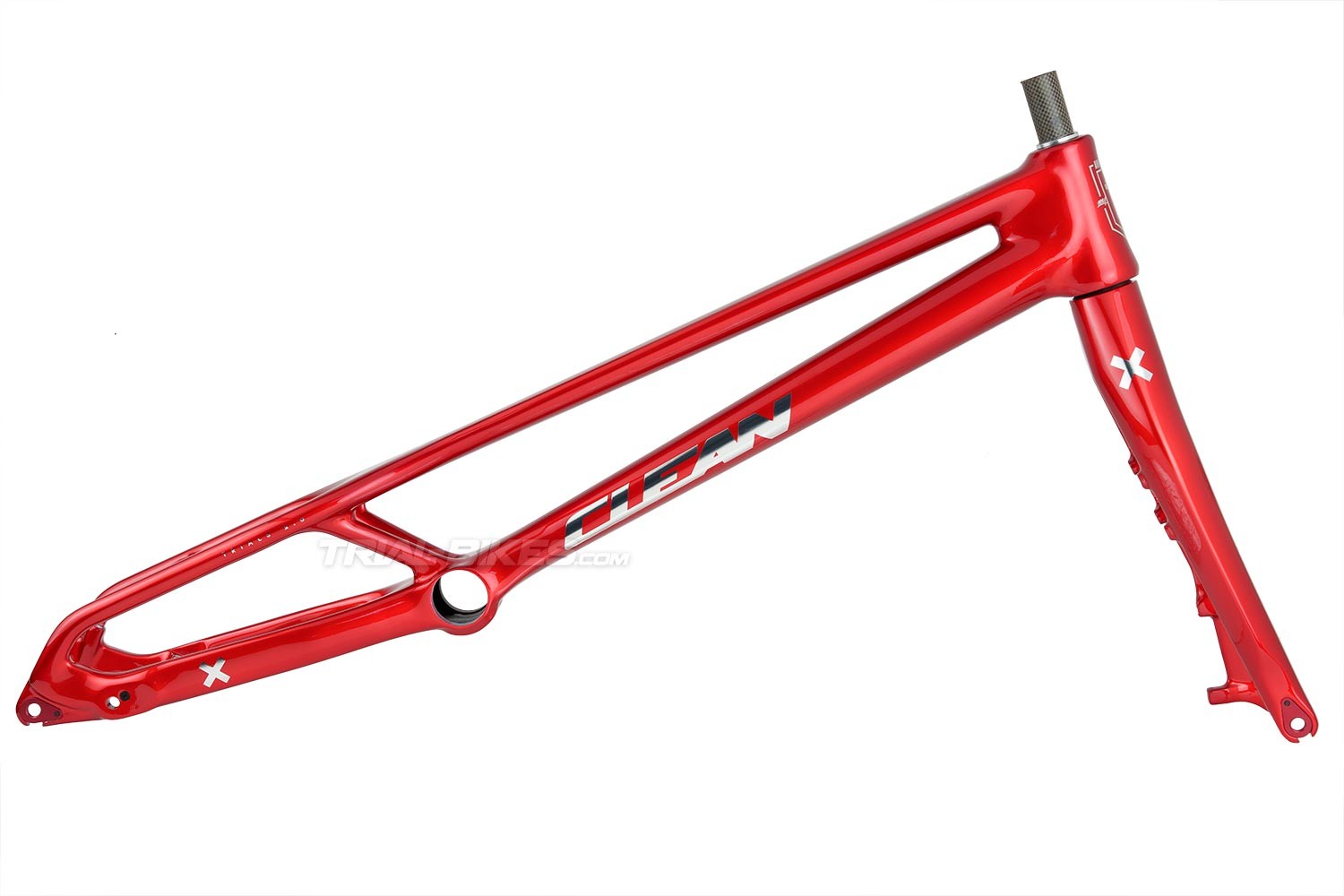

Clean K1 20" Frame Kit (heaset included)

Clean K1 20" Frame Kit (heaset included)

The Clean K1 20" kit includes a frame, fork, and integrated headset, providing a complete solution for those looking to make the most of their existing parts in good condition. It is perfect for riders who want to update their frame while maintaining compatibility with existing components.

Compatible with all Clean X3 parts, such as X3 hubs and the Clean BB30 3-piece bottom bracket kit, ensuring great versatility for customizing your bike setup.

The Kit Includes
- Clean K1 20" frame, known for its success and performance in recent years.
- Clean K1 carbon fork, equipped with mounts for rim brakes (HS) and disc brakes.
- Clean K1 integrated headset, without cups, for precise adjustments.

Compatibility
- Fully compatible with all Clean X3 series parts, including hubs and the BB30 3-piece bottom bracket kit.

Geometry
- Rear dropout width: 120 mm
- Bottom bracket shell: 68 mm
- Head tube length: 120 mm

- Wheelbase: 1005 mm
- Bottom bracket/rear axle distance: 350 mm
- Bottom bracket height: +87 mm
- Head angle: 72.0º

Fork dimensions
- Length: 370 mm
- Offset: +40 mm
- Hub length: 105 mm
- Steerer tube: 180 mm

- HS mount spacing: 91 mm.

Finishes

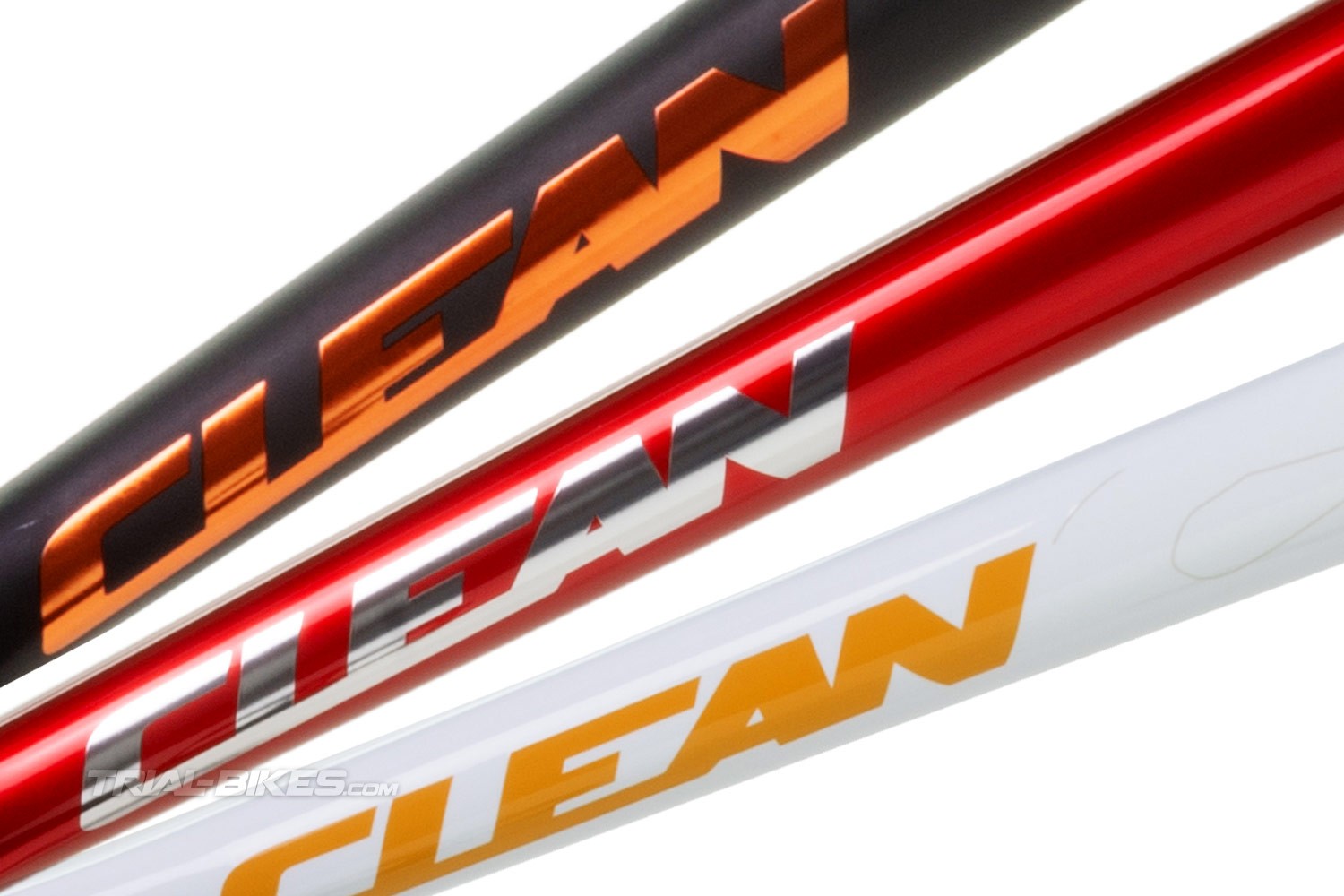

- Available in three exclusive colors: white, candy red, and black, with an elegant design that celebrates Clean Trials' X anniversary.

Weight
- Total 1795.94 g: 1160 g (frame) + 560 g (fork) + 75.94 g (headset).
