This is a very interesting kit for upgrading your existing frame and some key components for compatibility (bottom bracket, headset and bashplate). You can keep using any parts compatible with the Jitsie Varial frame (more info below).
Overall description

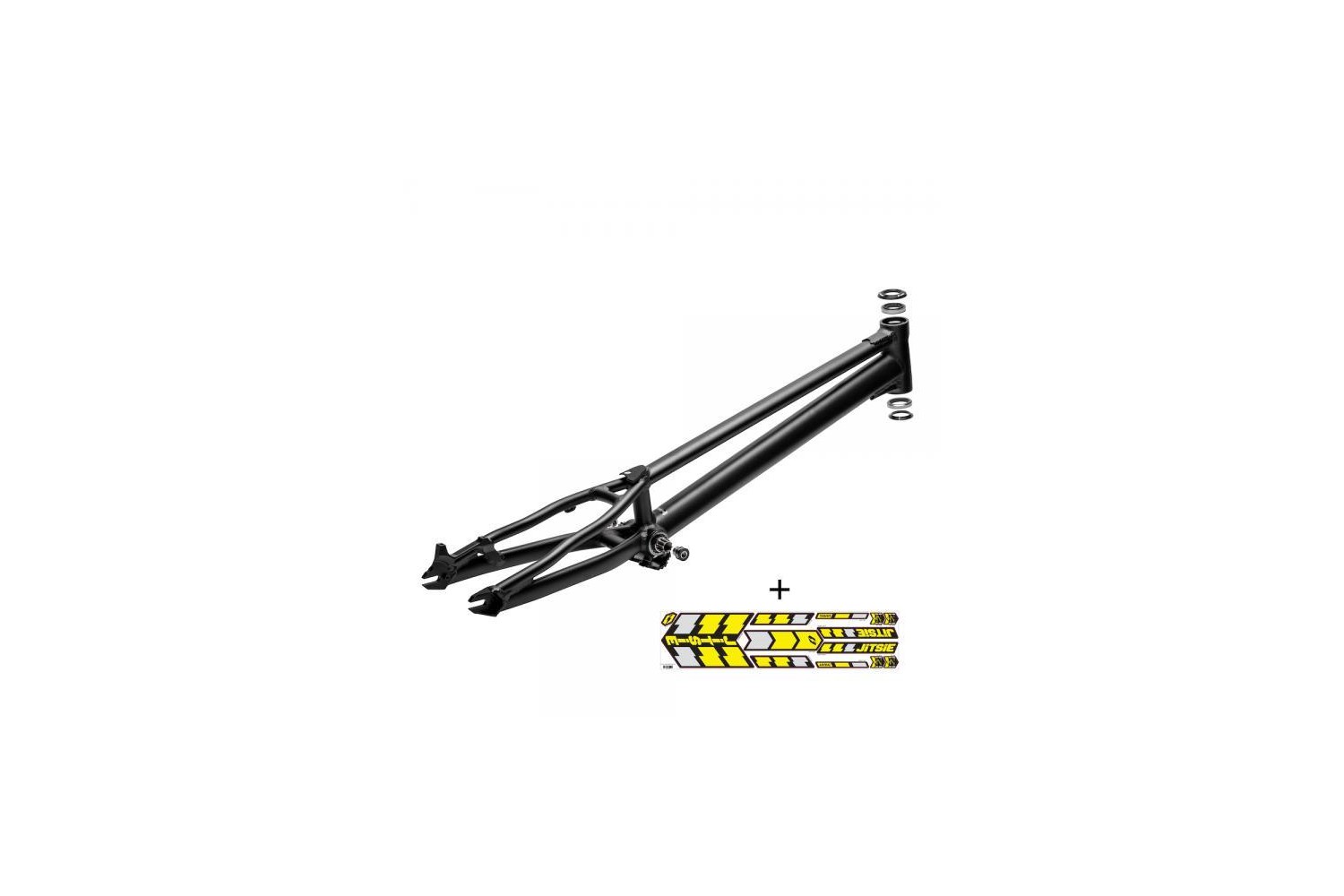

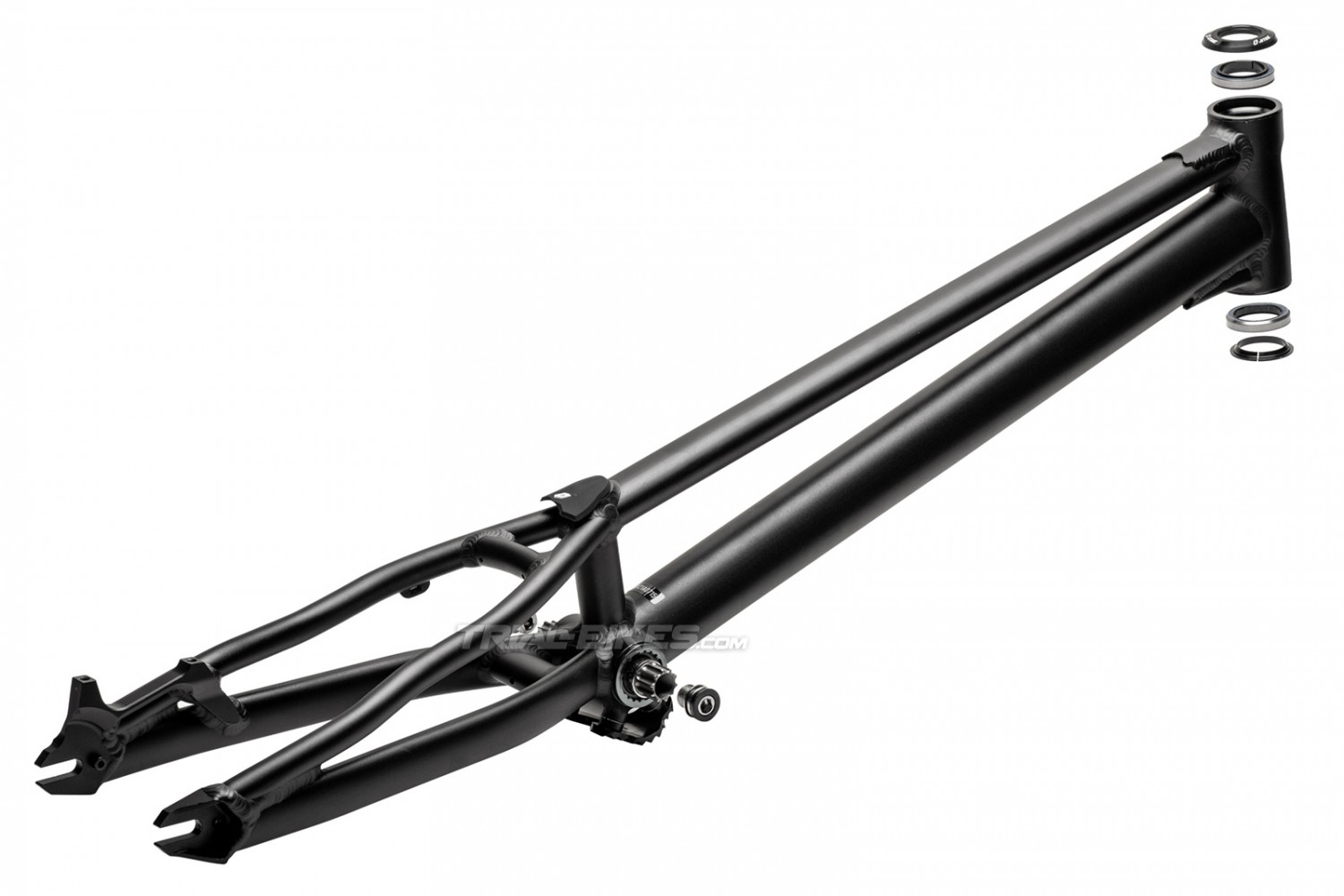

- Jitsie Varial 20" frame kit.
- This kit includes:
· 1x Jitsie Varial 20" frame. Available separately here.
· 1x Jitsie 1 1/8" internal headset, with sealed bearings (installed). Available separately here.
· 1x Jitsie mini bashplate (installed). Available separately here.
· 1x Jitsie ISIS bottom bracket (installed).
· 1x Jitsie silicon seat plug (installed). Available separately here.

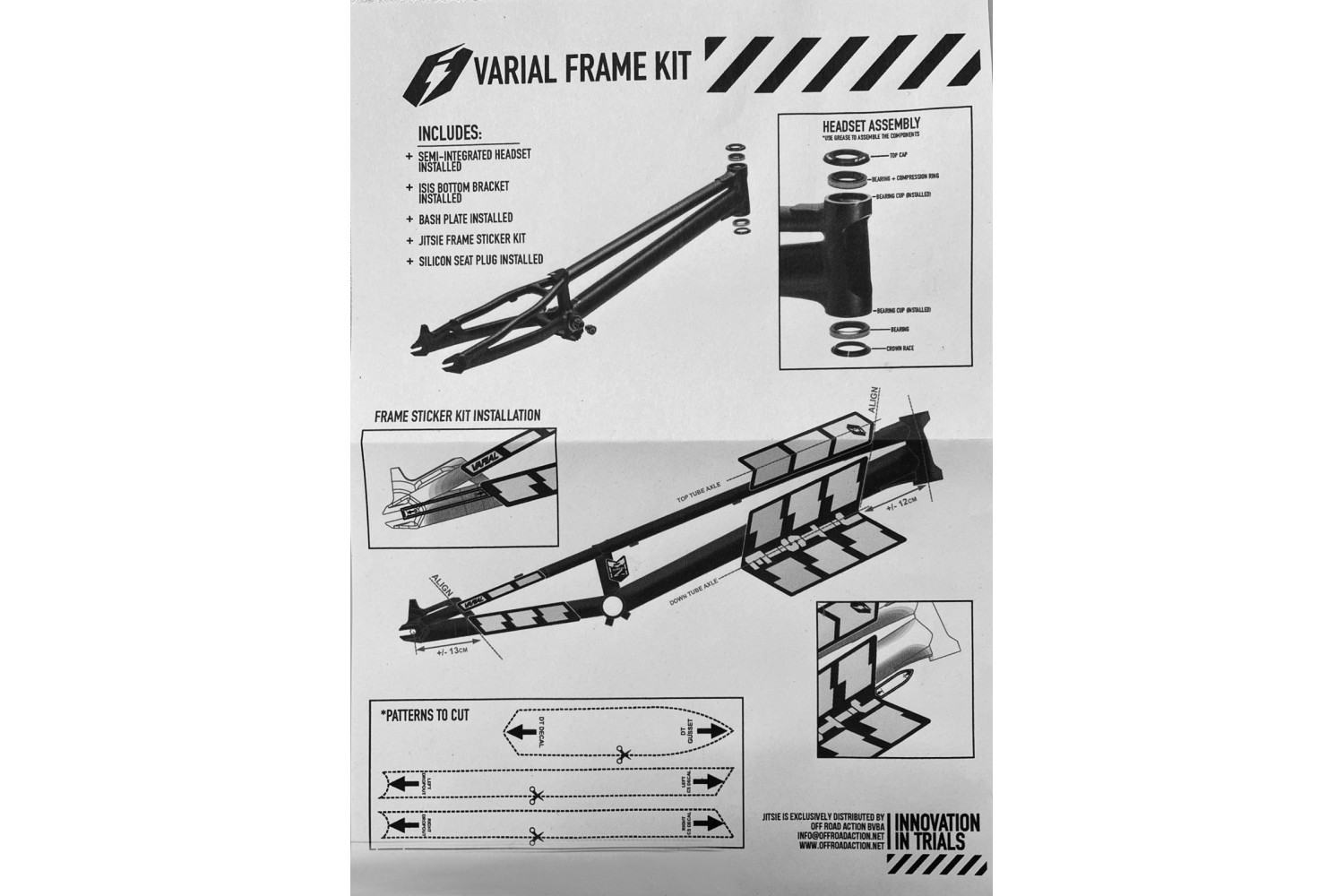

· Jitsie frame stickers (not installed), with installation guide.

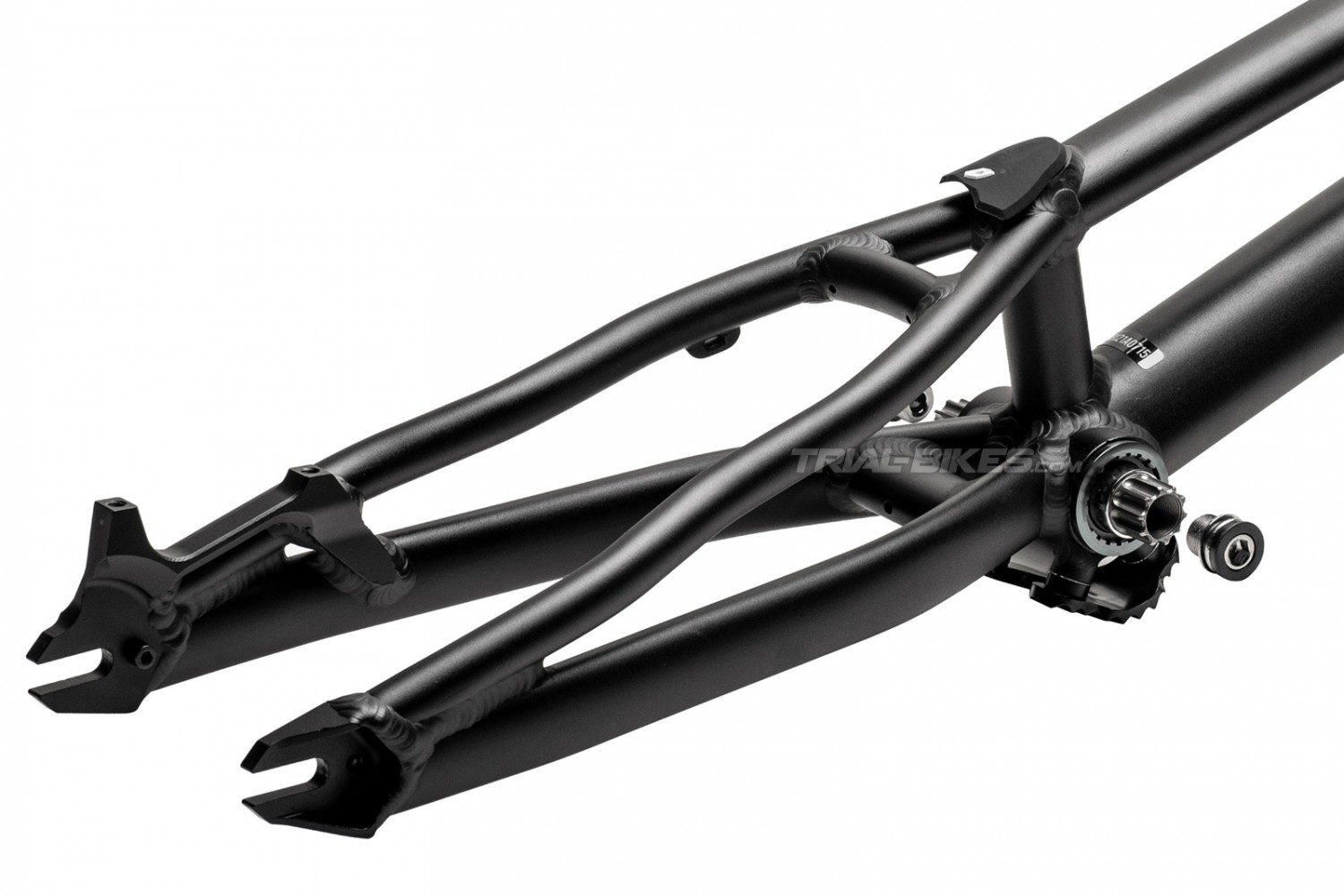

Main features of the Jitsie Varial frame
- Made of high quality, ultralight 6061-T6 aluminium alloy.
- 120mm long steerer tube, designed for a 1 1/8" internal headset (already included).
- 68mm bottom bracket shell, for traditional 1.37"x24tpi screw-on bottom brackets (already included).
- It comes with 4-bolt mini-bashplate mounts on the BB tube, compatible with Jitsie, Clean, Bonz and similar mini-bashplates.
- Dropouts are spaced at 116mm and are designed to use snail cams.
- Comes with Post Mount disc brake mounts.
- More info here.

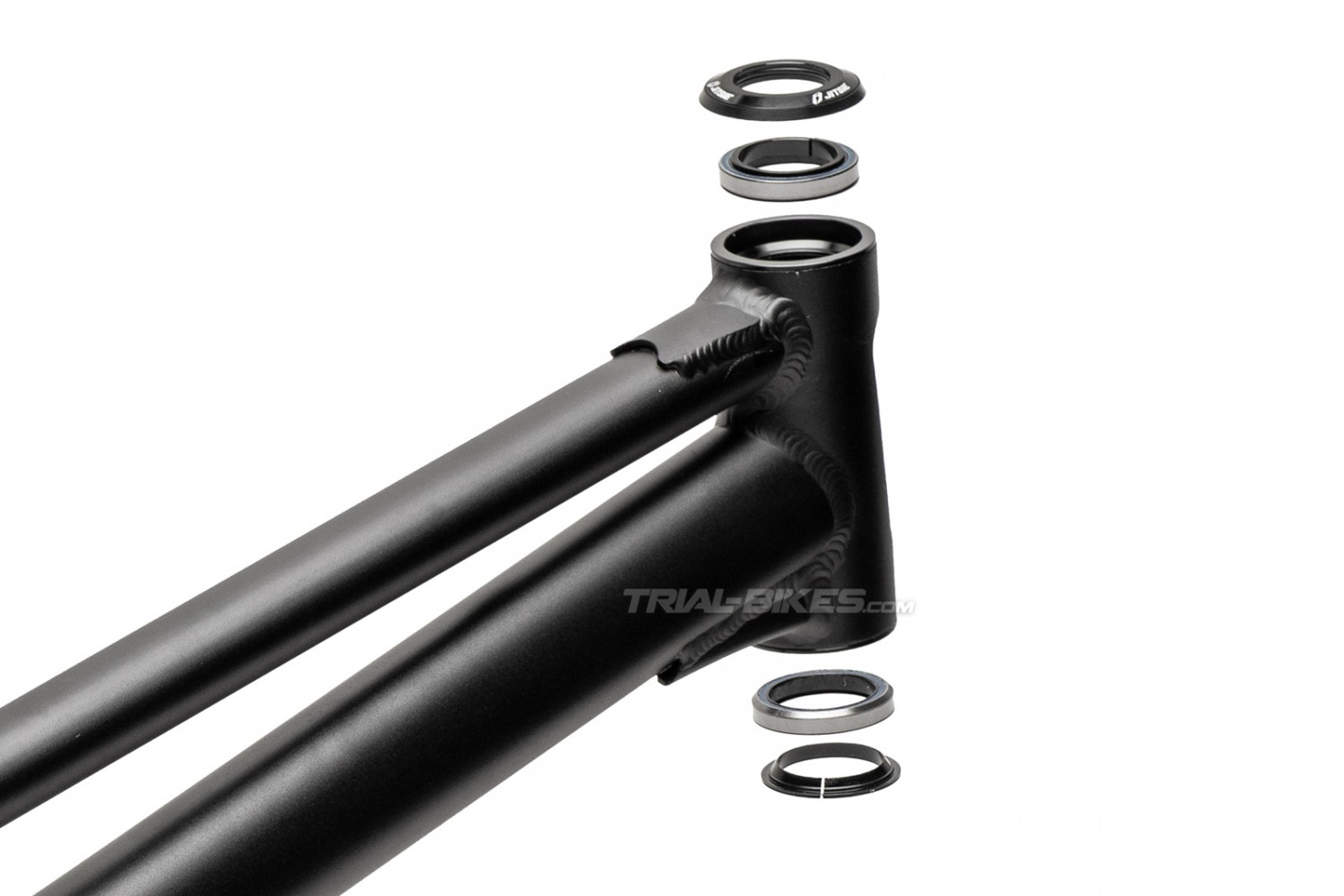

Main features of Jitsie’s 1 1/8" headset
- Jitsie’s 1 1/8" internal headset.
- Super light aluminium cups and sealed bearings.
- More info here.
Main features of Jitsie’s ISIS BB
- ISIS bottom bracket by Jitsie, 123mm long.
- Super light yet very strong and durable.
Colour
- Anodized black finish.
- Silver and yellow Jitsie Varial stickers (included but not installed).
Geometry (measured with a 370mm x 45mm fork)
- Wheelbase: 1010mm
- Chainstays: 350mm
- BB rise: +80mm
- Head angle: 71.5º
Weight
- 1.862Kg (complete kit)
| BRAKE MOUNTS | Post Mount Disc |
| TYPE OF HEADSET | Standard 1 1/8" |
