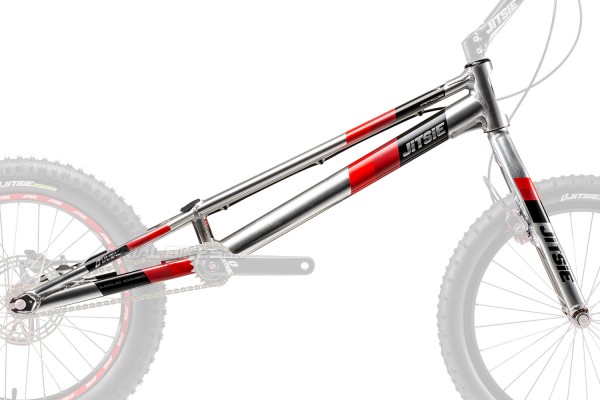

Jitsie Race 20” Frame Kit (headset included)

Jitsie Race 20" Frame Kit (headset included)

Jitsie Race 20” Alejandro Montalvo’s replica trials frame and fork. Featuring a special Alejandro Montalvo Replica silver finish and graphics!

Overall description
- Jitsie Race Alejandro Montalvo Replica frame, fork and headset kit.
- These are the Jitsie Race frame, fork and headset used by Alejandro Montalvo, with the new Alejandro Montalvo Replica colour and graphics.
- This kit includes:
· 1x Jitsie Race Alejandro Montalvo Replica frame.
· 1x Jitsie Race Alejandro Montalvo Replica fork.
· 1x Jitsie 1 1/8 internal headset, with sealed bearings.

Main features of Jitsie’s Alejandro Montalvo Replica frame
- Based around Jitsie’s 20” Varial 1010mm frame.
- Made of high quality, ultralight 6061-T6 aluminium alloy.
- 120 mm long steerer tube, designed for a 1 1/8” internal headset (already included).
- 68 mm bottom bracket shell, for traditional 1.37”x24tpi screw-on bottom brackets.
- It comes with 4-bolt mini-bashplate mounts on the BB tube, compatible with Jitsie, Clean, Bonz and similar mini-bashplates.
- Dropouts are spaced at 116 mm and are designed to use snail cams.
- Comes with Post Mount disc brake mounts.
- More info here.

Main features of Jitsie’s Alejandro Montalvo Replica fork
- Based around Jitsie’s 20” Varial HS fork.
- Made of high quality, ultralight 7005-T6 aluminium alloy.
- 185mm long steerer tube, designed for a 1 1/8” internal headset.
- Dropouts are spaced at 100mm, so they’re compatible with most trials hubs.
- Features 4-bolt rim brake mounts, spaced at 100 mm at the back of the legs.
- Does not include a star nut (requires the large, 23 mm (1”) version, available here).
- More info here.

Main features of Jitsie’s 1 1/8” headset
- Jitsie’s 1 1/8” internal headset.
- Super light aluminium cups and sealed bearings.
- More info here.

Colour
- Polished silver finish, with Jitsie’s Alejandro Montalvo Replica red and black stickers.

Geometry
Fork:

(1) Length: 370 mm.
-----------------------------------------------
(2) Offset: +45 mm.
-----------------------------------------------
(3) Steerer tube length: 185 mm.
-----------------------------------------------

Frame:

(1) Wheelbase: 1010 mm
-----------------------------------------------
(2) Rear End: 350 mm
-----------------------------------------------
(3) Bottom Bracket Height: +80 mm.
-----------------------------------------------
(4) Head Angle: 71.5°.
-----------------------------------------------


Weight
- 2.27 Kg (total weight of frame + fork + headset).
