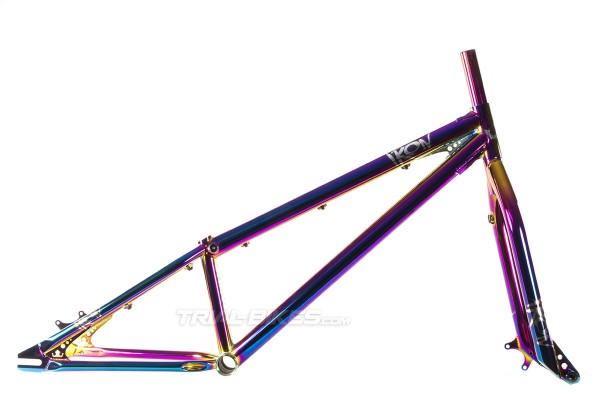

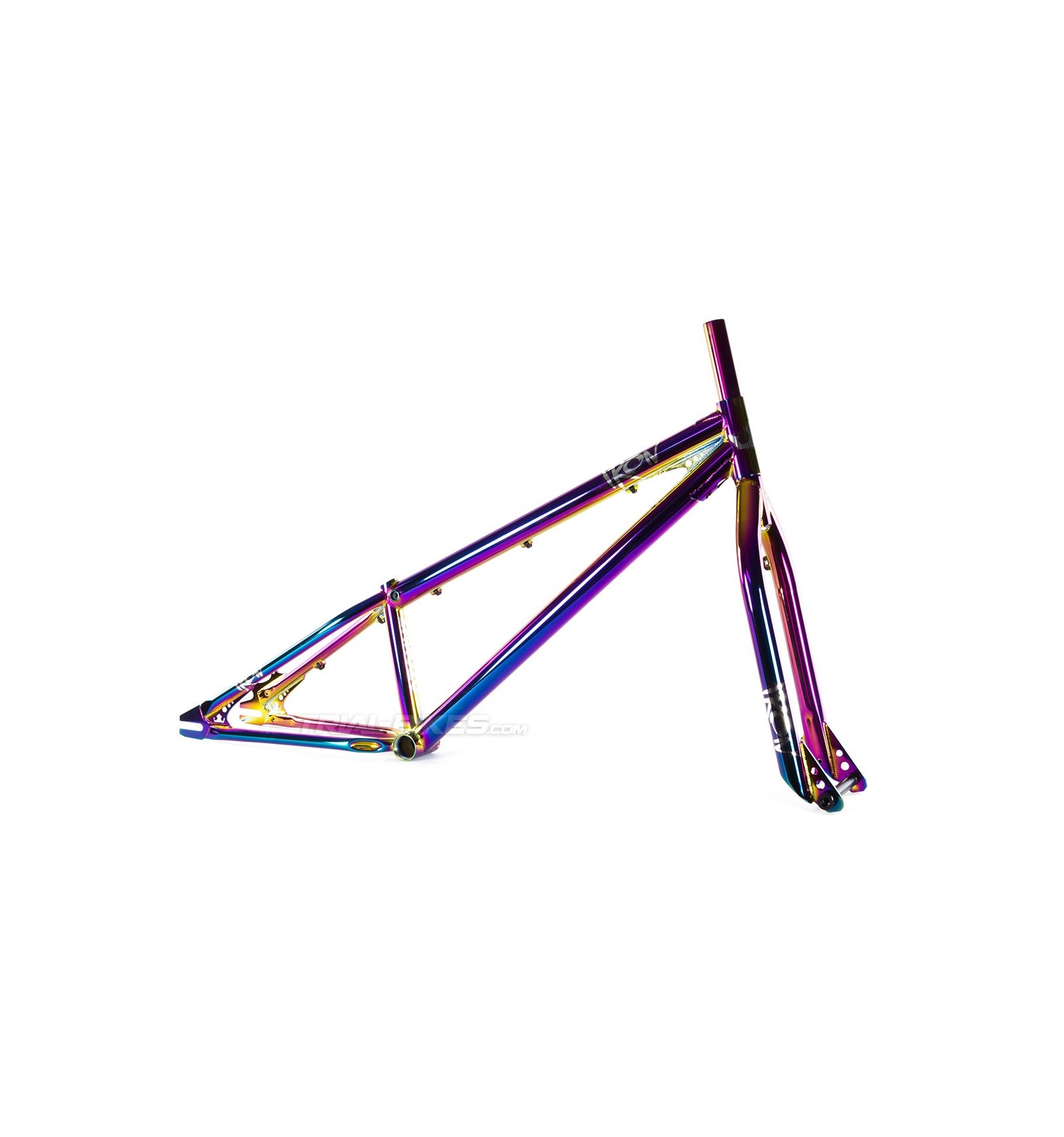

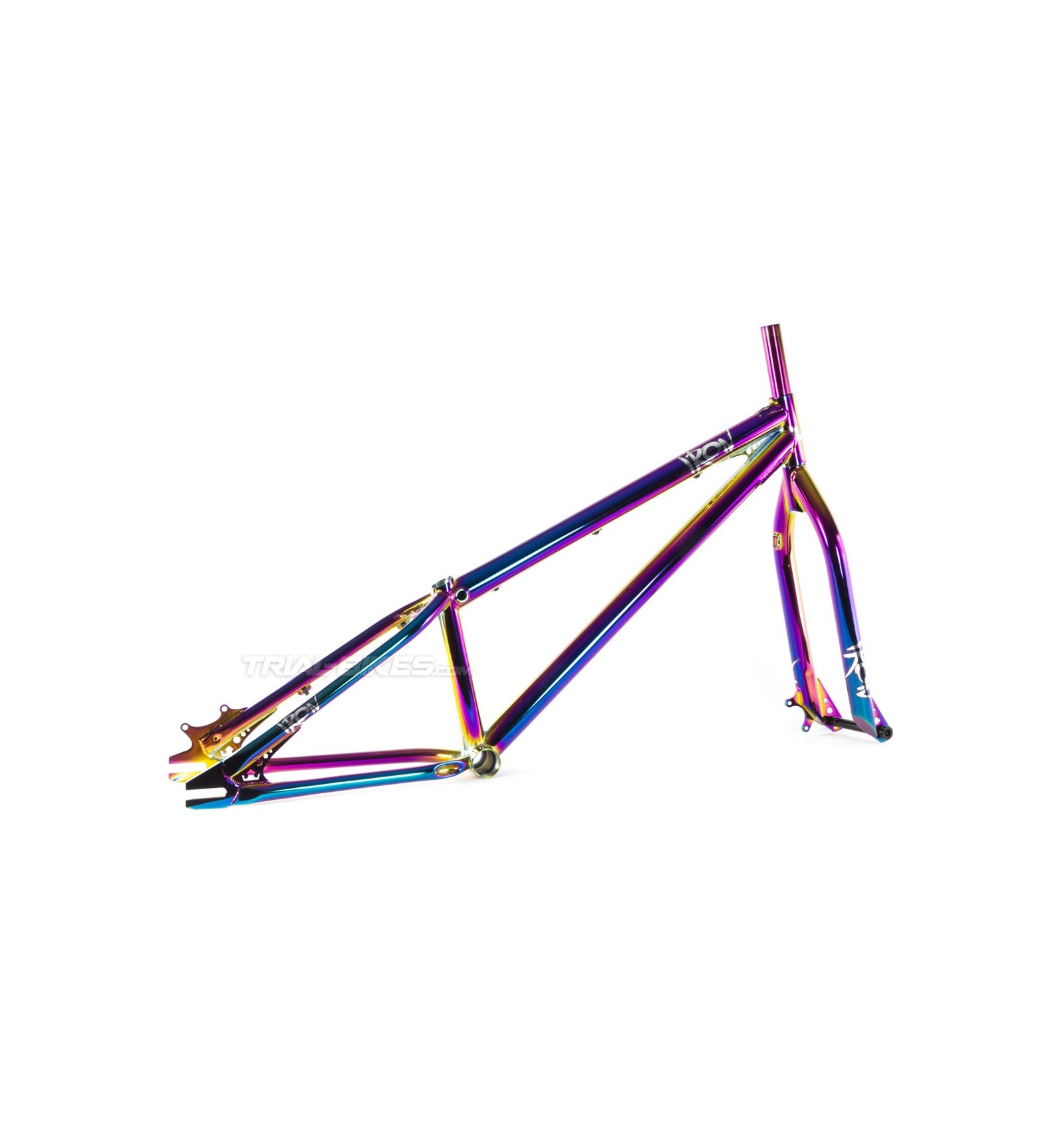

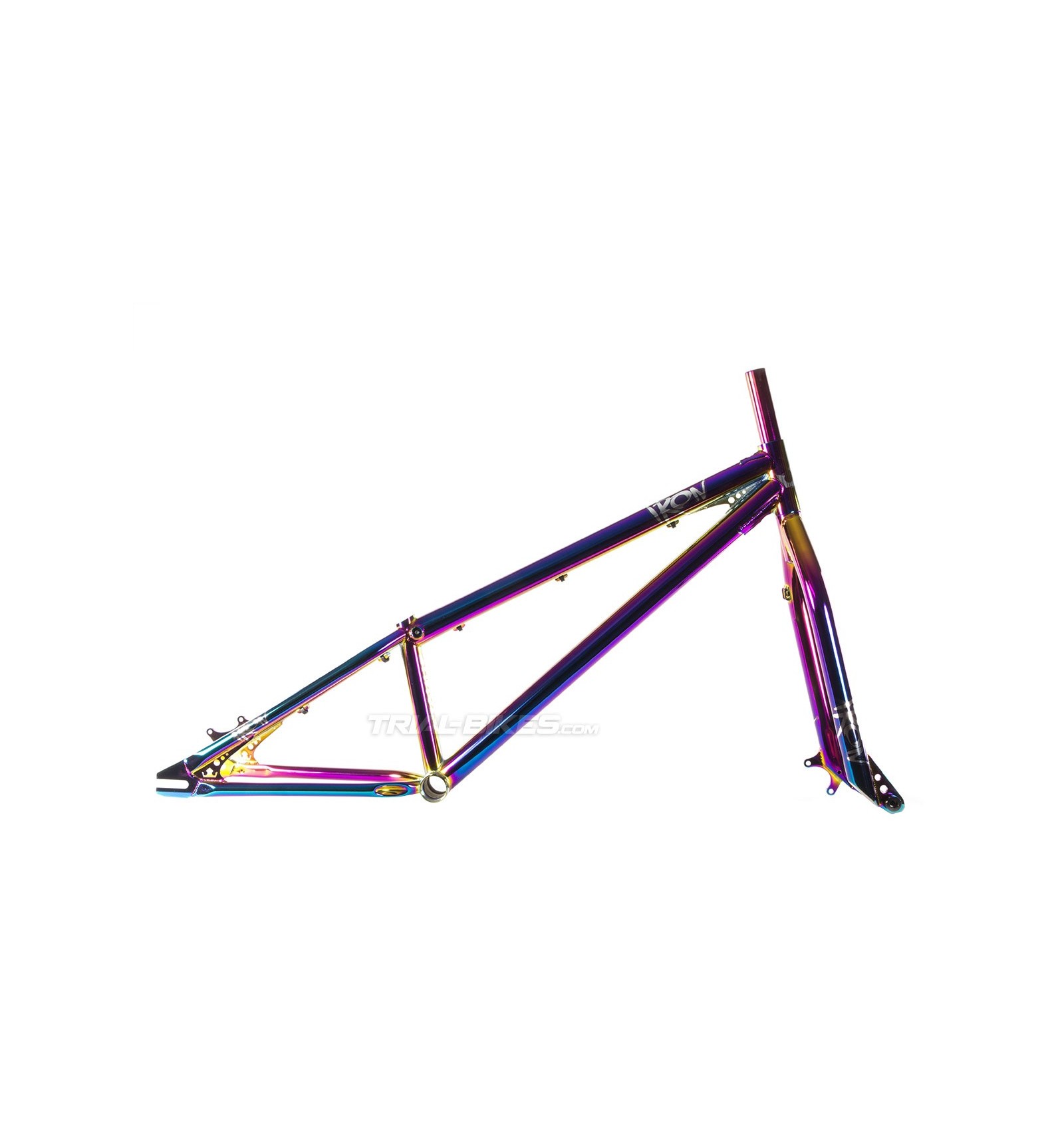

Ozonys Iron 24'' Frame & Fork Kit

Description and materials
- New Iron 24” frame + fork kit, the top-of-the-range model specially designed for Street trials from French brand Ozonys.
- Includes the new Ozonys Iron 24” frame and fork, not available separately in our web.
- It’s a unique, special edition for Street trials, with multiple updates like the new Rainbow finish in frame and fork, a treatment 30 times stronger than anodizing that makes this a unique kit.
- Now, the seat tube doesn’t need an external clamp since it features a bolt that allows an easy setup of the seat.
- Developed and tested for months by the Ozonys FREESTYL’AIR Street team riders, like Yohan Triboulat.

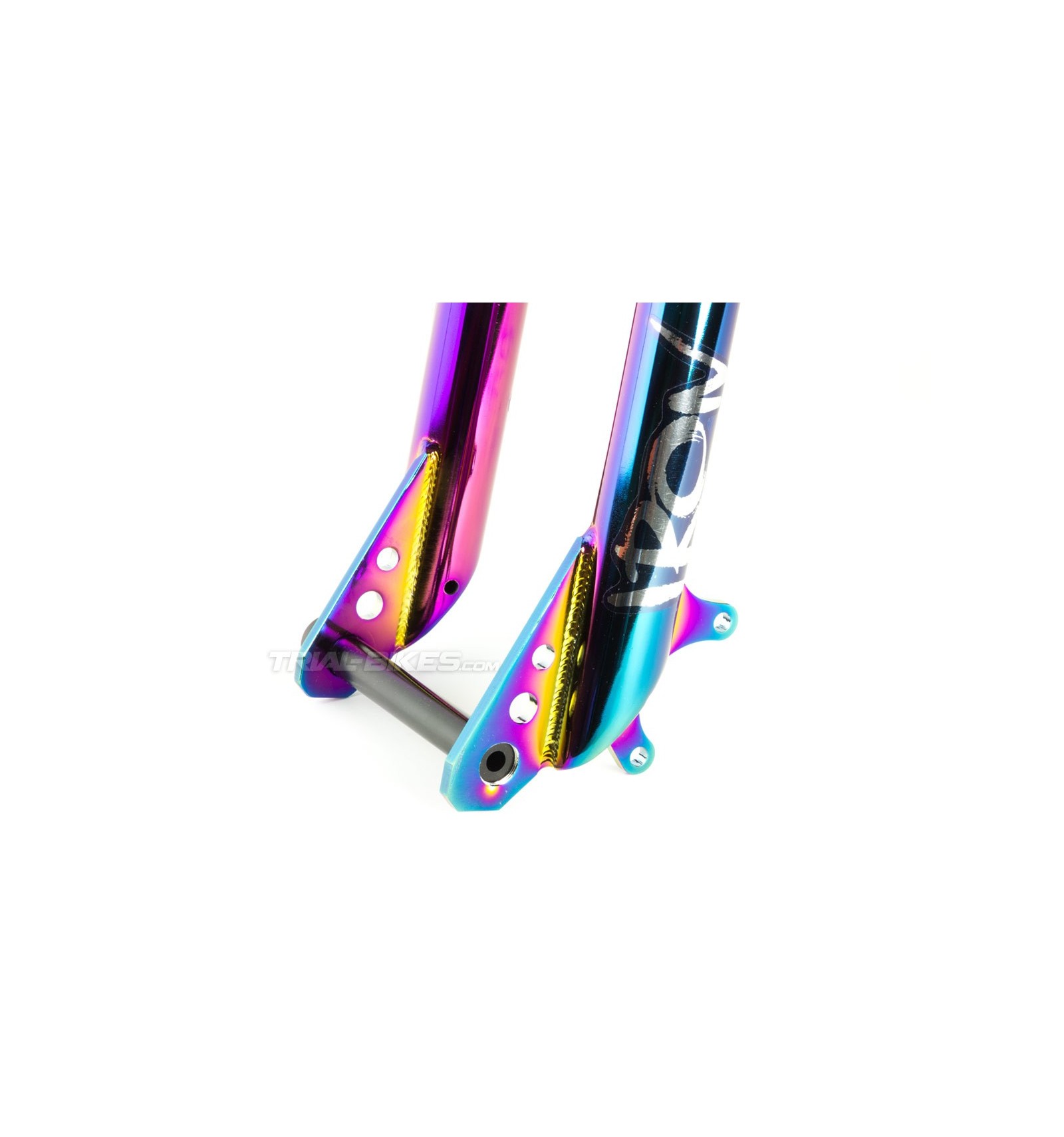

- Exclusive Iron fork design, made from high quality CR-Moly steel, designed for using with a 15mm thru-axle (included in this kit), which provides extraordinary stiffness when compared to quick release. Tested and 100% certified with a Hope hub, that fits perfectly. If you own a standard-axle Hope hub, it’s very easy to convert it into a 15mm thru-axle by using a Hope adaptor.
- Both the frame and fork are made from high quality CR-Moly steel, which provides the necessary strength required in a Street bike.
- Dedicated design and manufacturing make this a high quality Street trials frame.

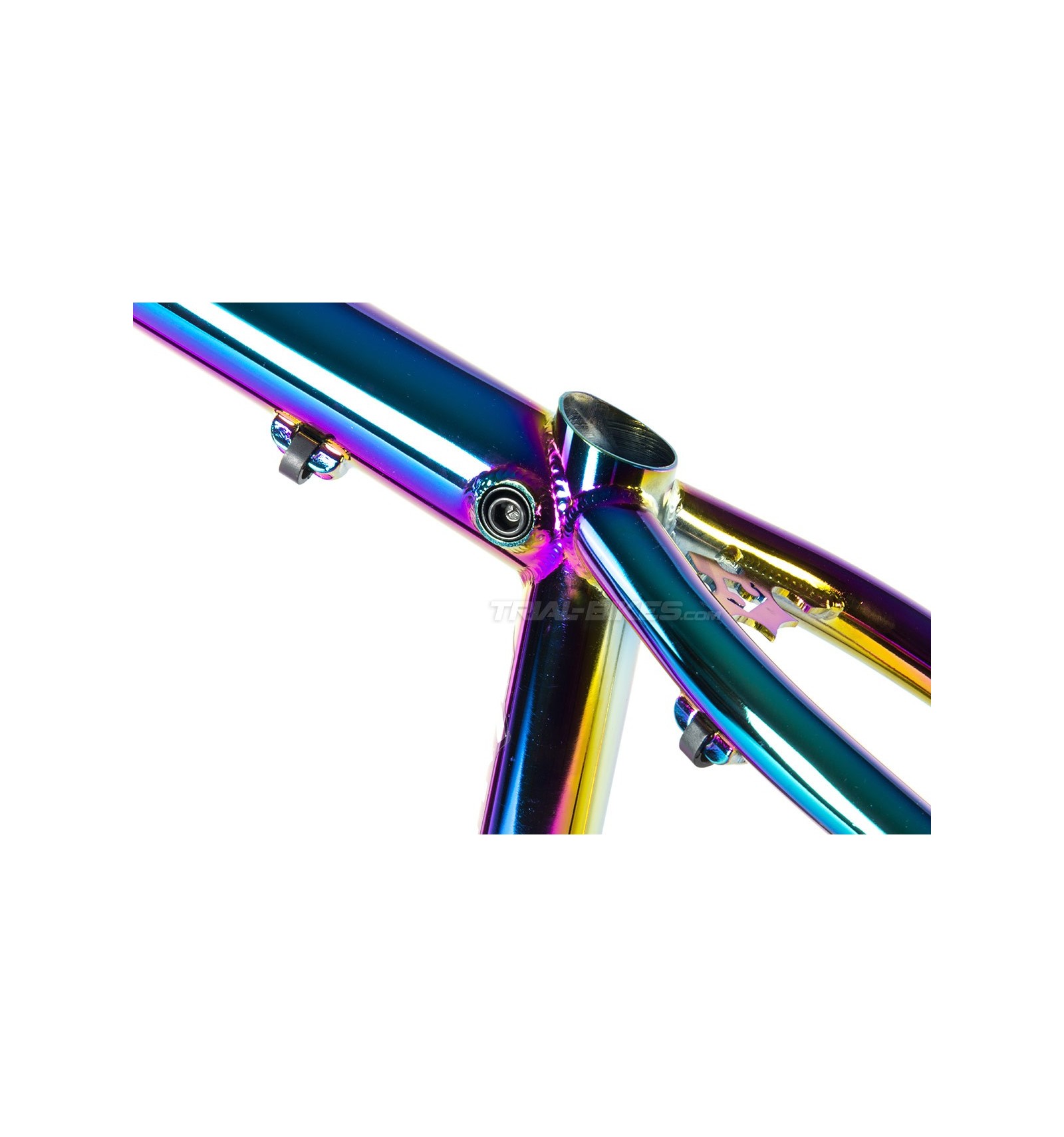

- The head tube is gusseted to the top and down tubes to increase its strength.
- The frame has a +20mm IS disc mount, for using with Ø180mm rotors, mechanized in one single piece with the non-drive side dropout.
- The fork features a 160mm IS (international Standard) disc mount, with a 200mm long steerer tube.

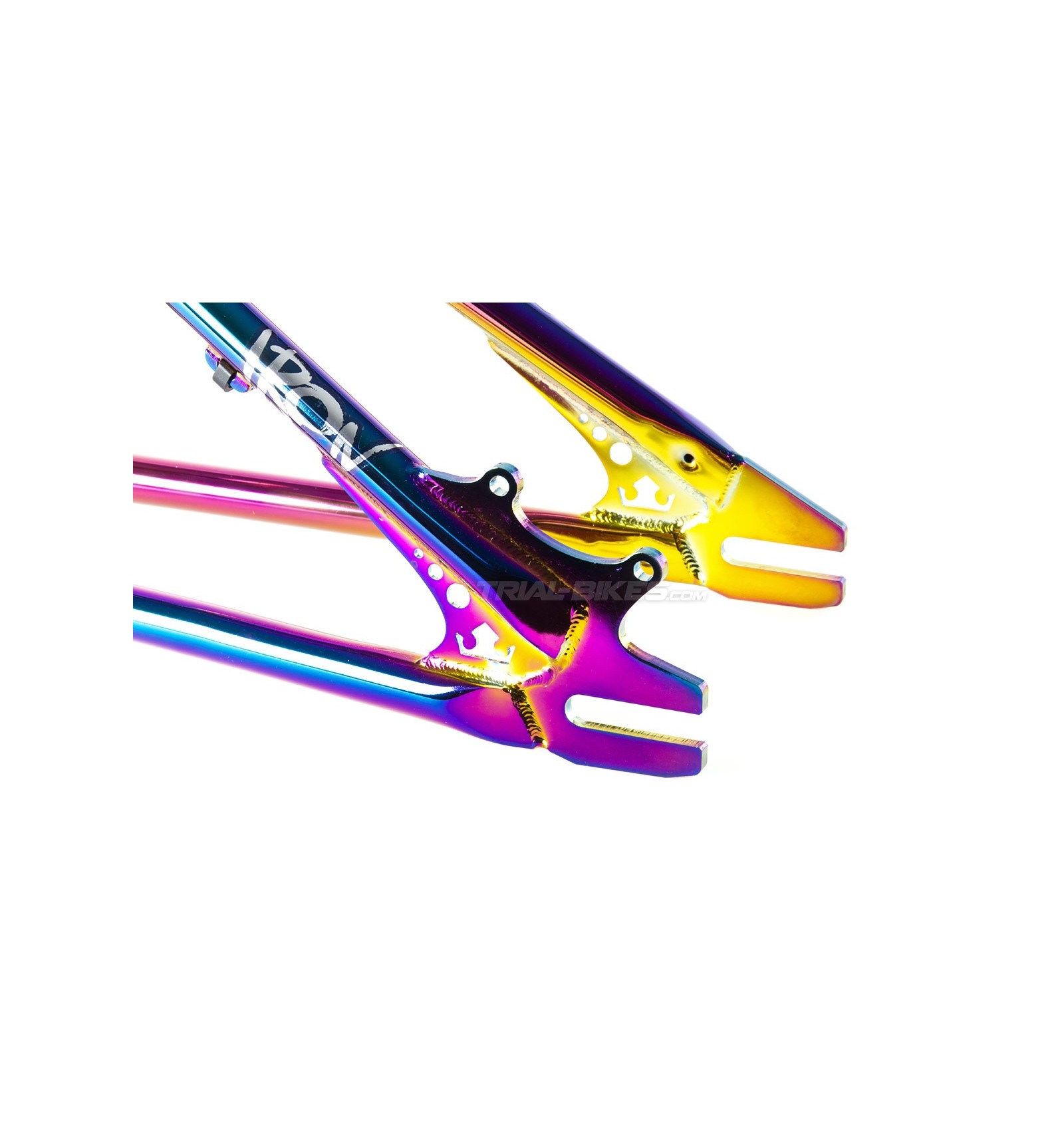

- Extra long dropouts, specifically designed for chain tugs (not included with the kit, available in our web here).
- 100mm long, 1 1/8” head tube, for using with external headsets.
- A 27.2mm in diameter seat tube must be used.

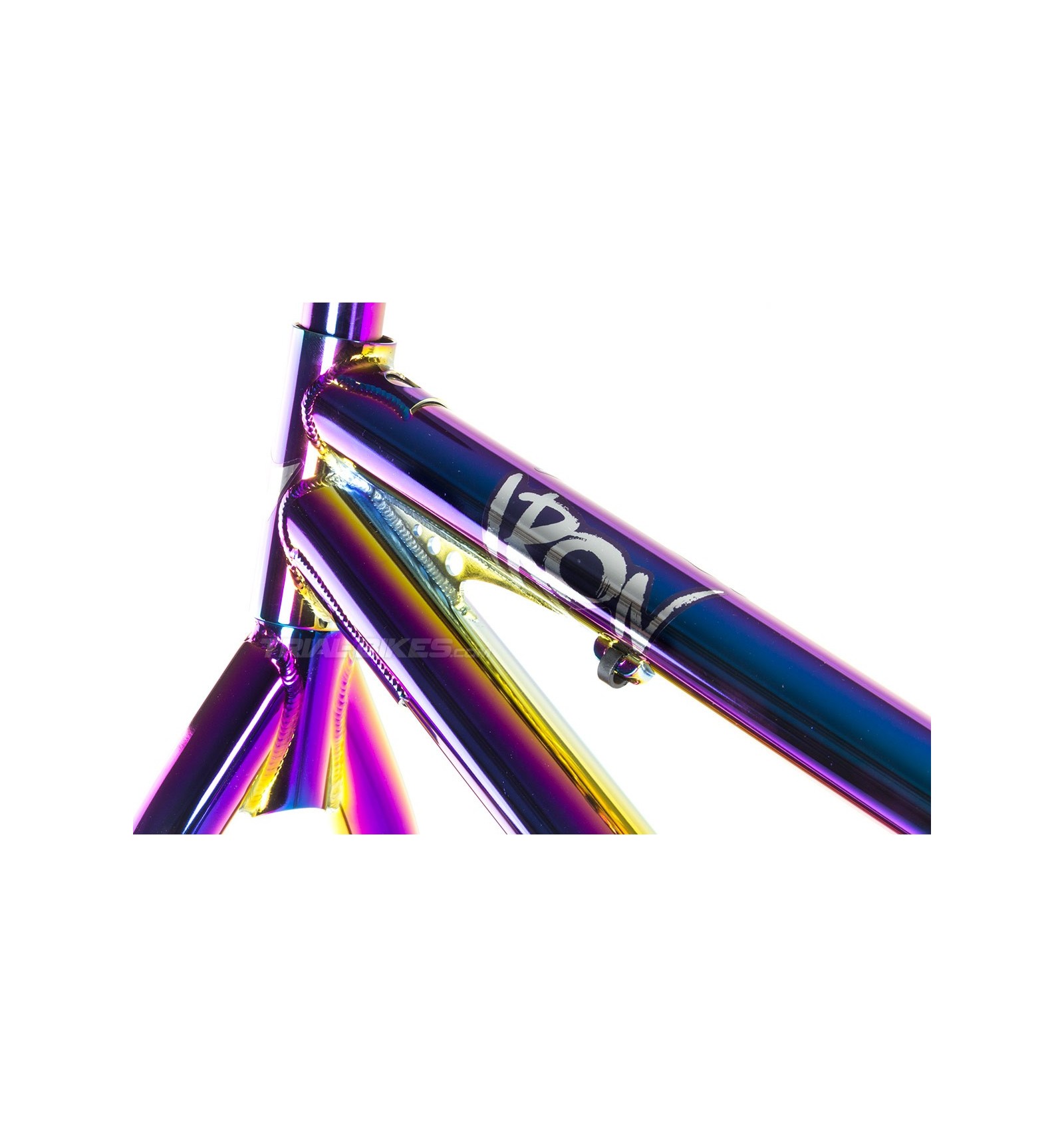

- High quality Rainbow finish, with white Ozonys Iron graphics.

Geometry
- Space between dropouts: 135mm
- Bottom bracket shell: 68mm
- Head tube: 100mm

- Wheelbase: 980mm
- Chainstay Length: 360mm
- BB Rise: +0mm
- Head Angle: 74.5º

Fork dimensions
- Hub length: 100mm
- Steerer tube length: 200mm
- Offset: +35mm

Finishes
- High quality Rainbow finish.
- White Ozonys Iron graphics.

Complete Weight
- 3,558Kg (2.303g (frame) and 1.255g (fork))

Additional information
This frame comes with 12 months warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
