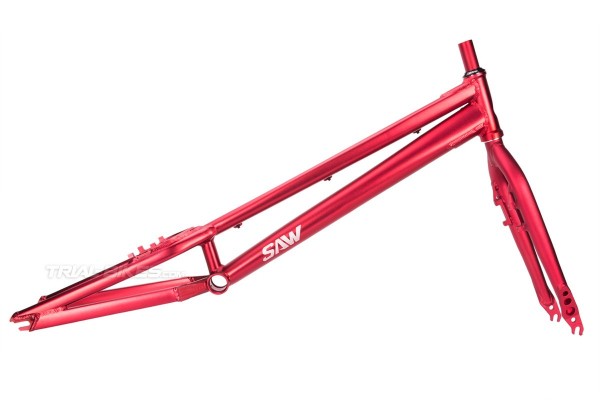

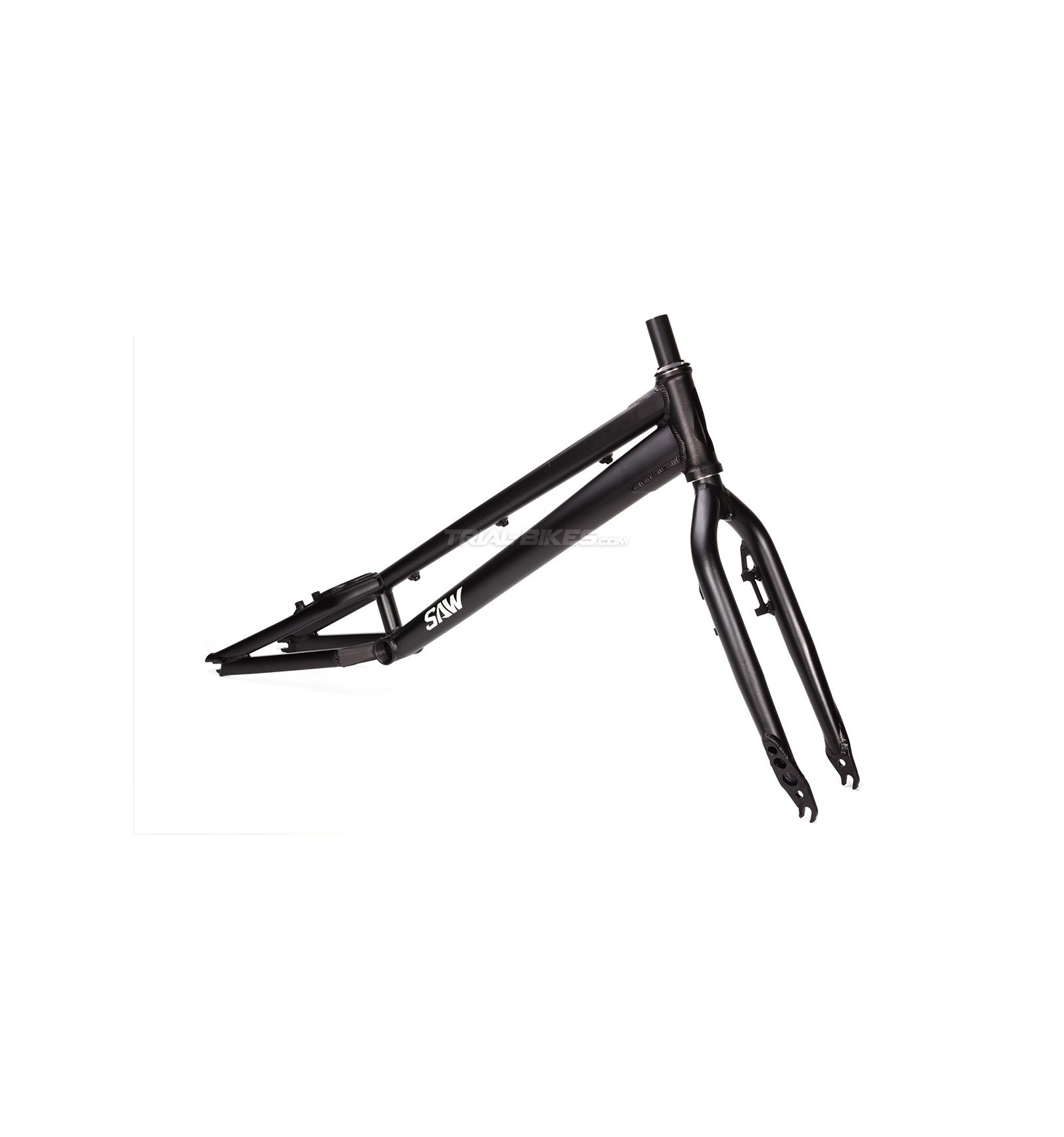

SAW 26'' Frame & Fork Kit

Description and materials
- New SAW 26” frame + fork kit, the top-of-the-range 26” Trials bike from young manufacturer SAW.
- Includes the new SAW 26” frame and fork, not available separately in our web.
- The fork features an exclusive SAW design, made from high quality 6061 T6 aluminium.
- This high-quality aluminium guarantees the quality performance any Trials bike must provide.
- Dedicated manufacturing and designing have been essential to make this high-end frame.

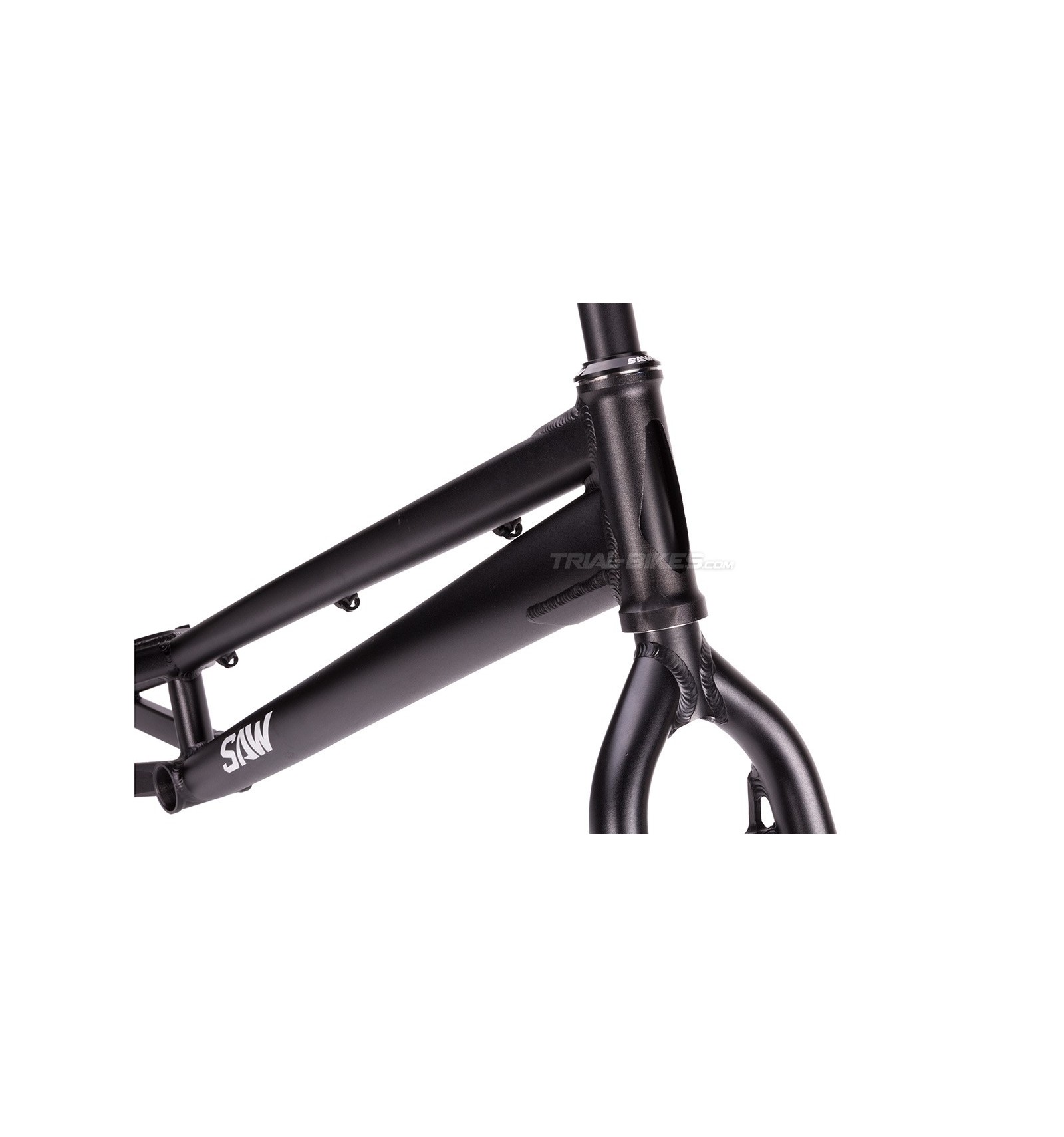

- The top and down tubes are reinforced at the head tube joint, which provides extra stiffness.
- The frame features dedicated 4-bolt brake mounts (with built-in booster).
- The fork features 4-bolt mounts too, with a 200mm long steerer tube.
- 1 1/8” 130mm long head tube, for internal headsets.
- Supplied with sealed bearing headset.

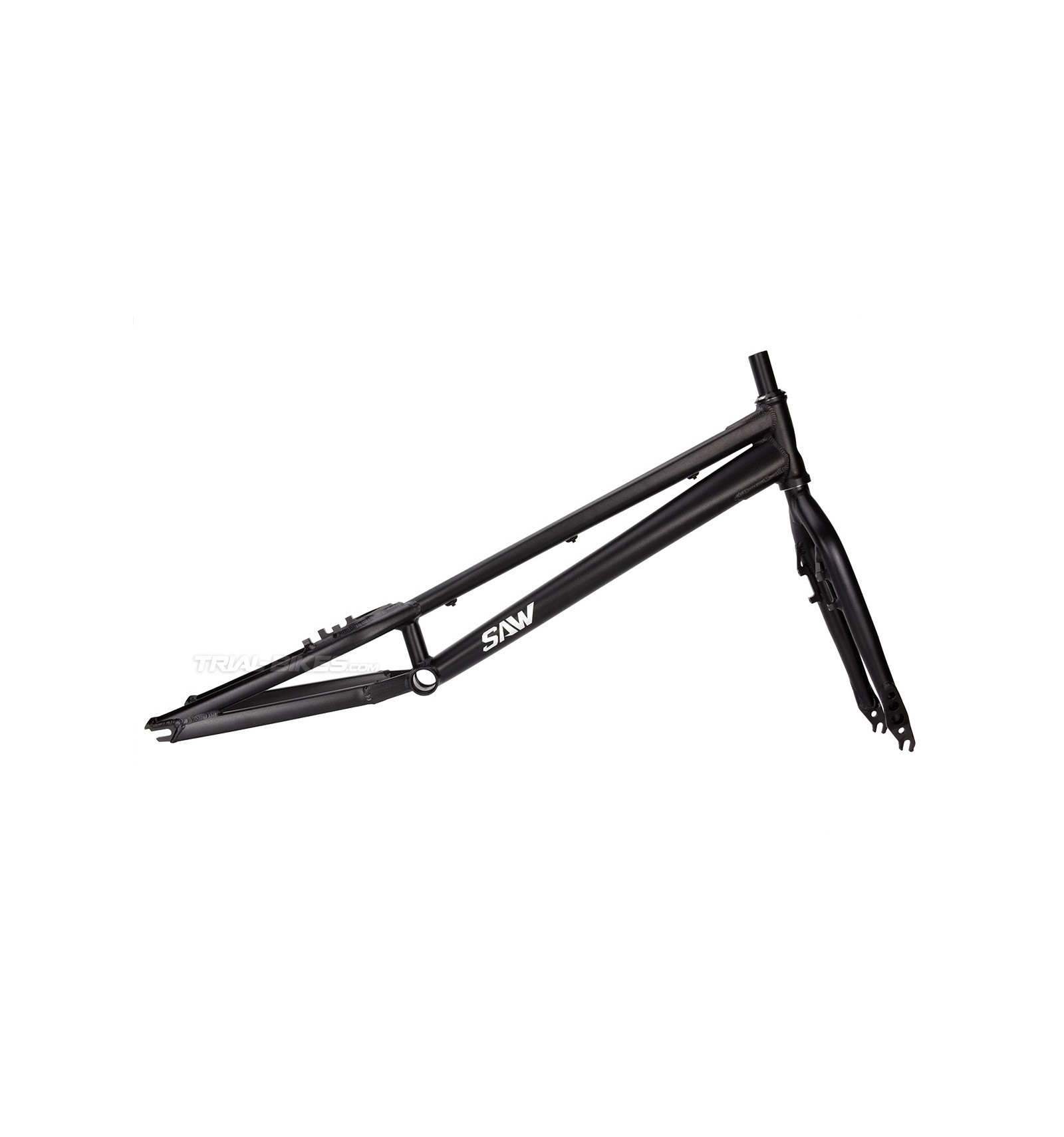

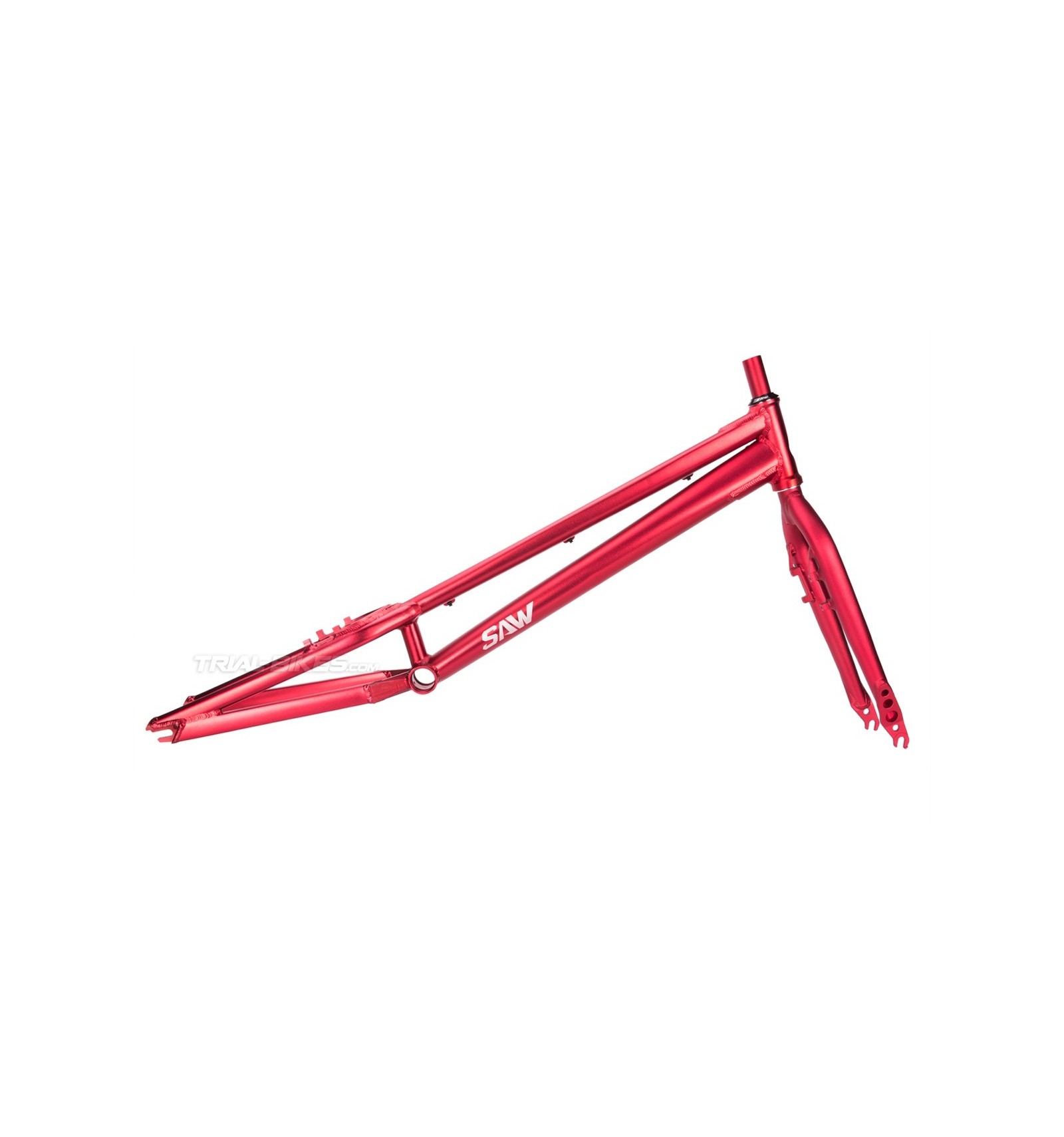

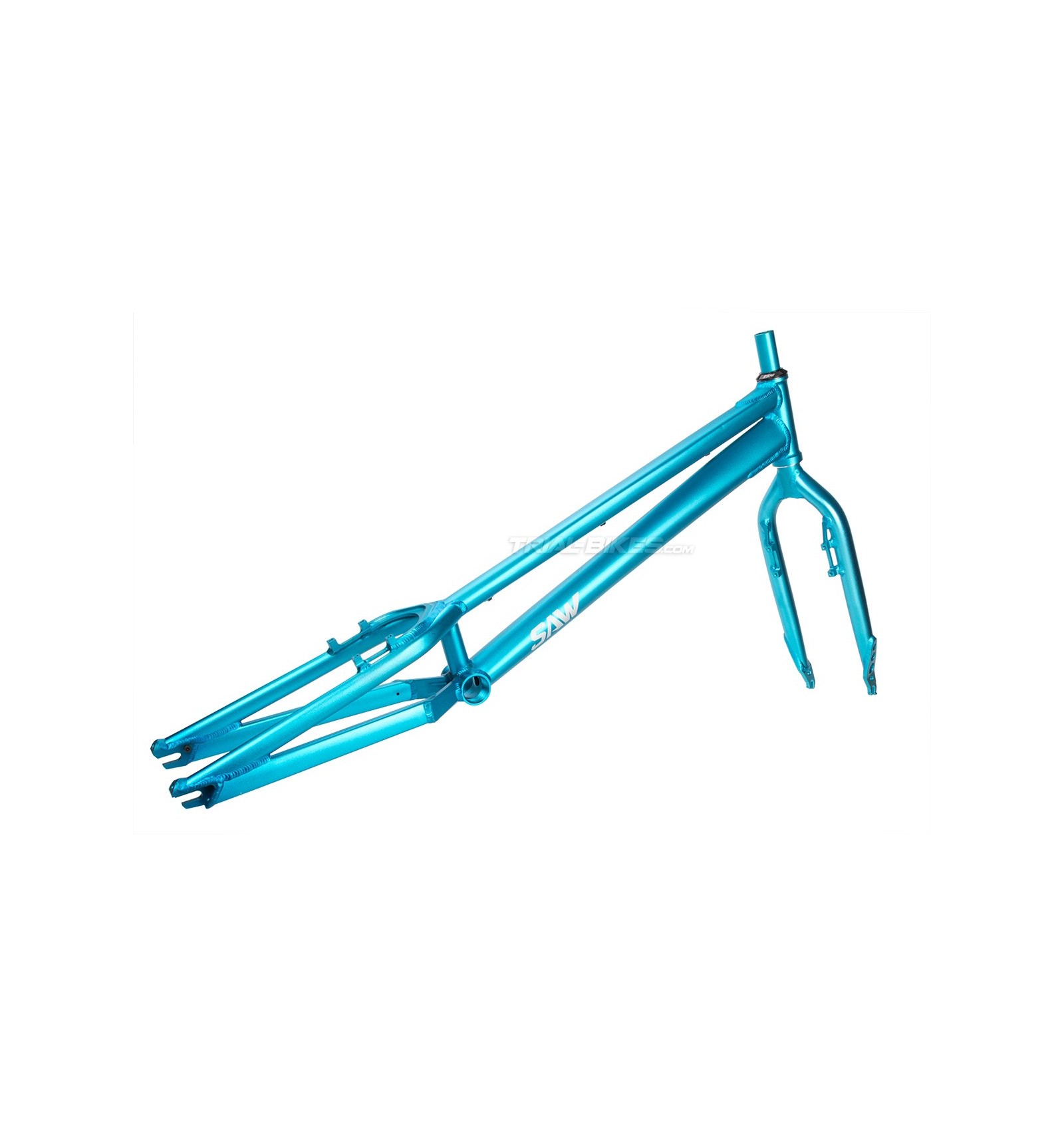

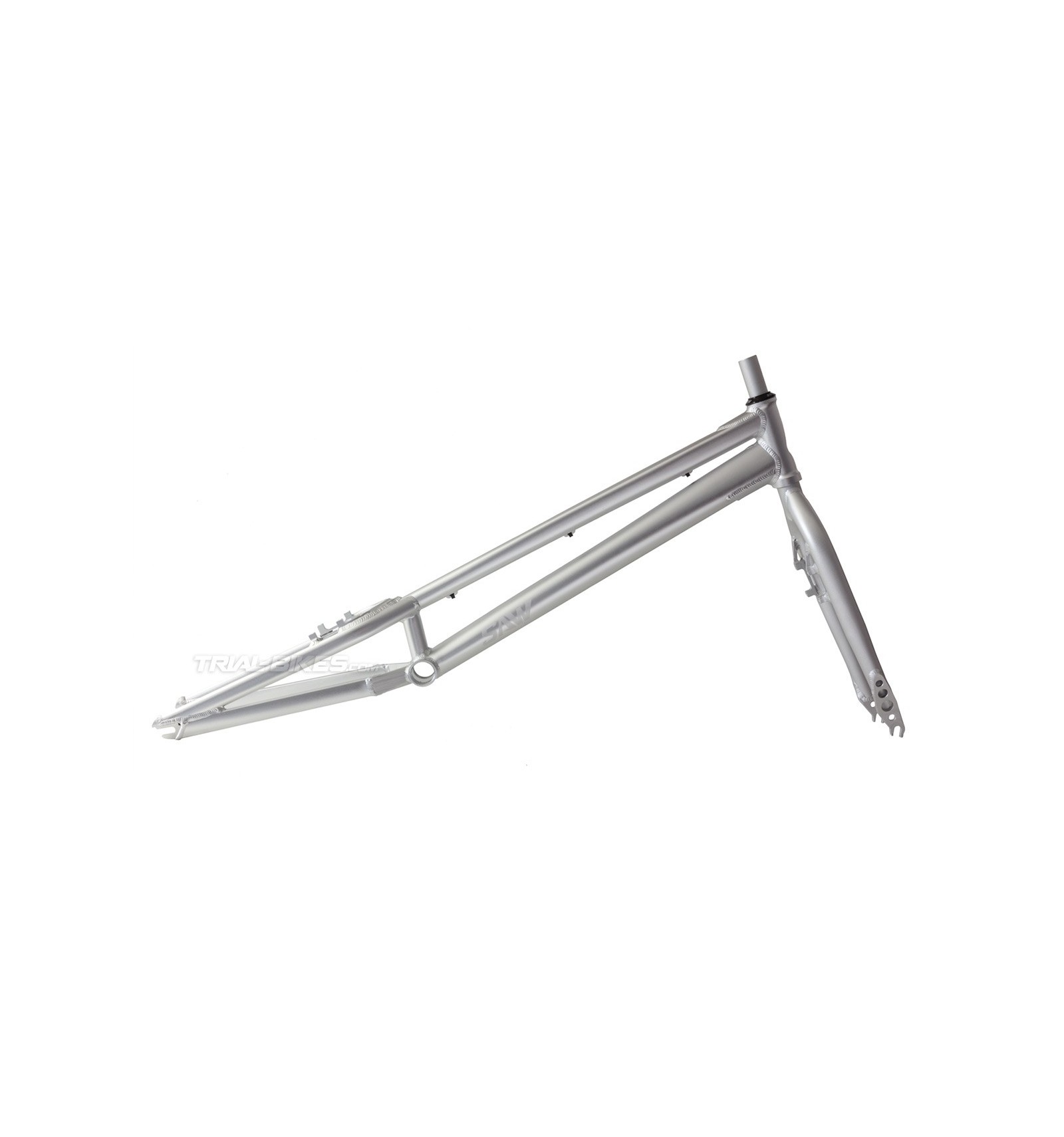

- High quality finish, available in silver, red, blue or black, with silver SAW graphics.

Geometry
- Space between dropouts: 135mm

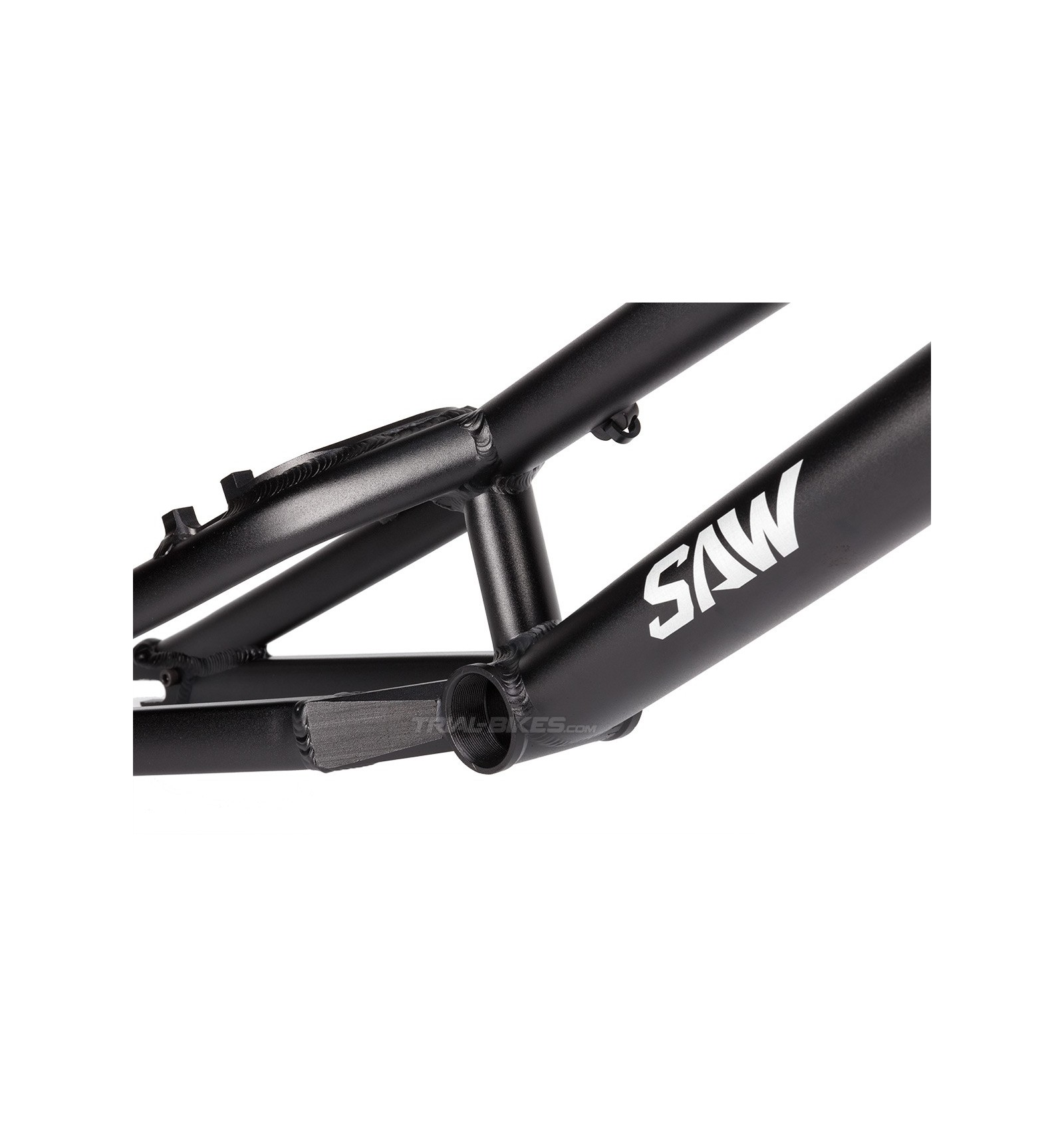

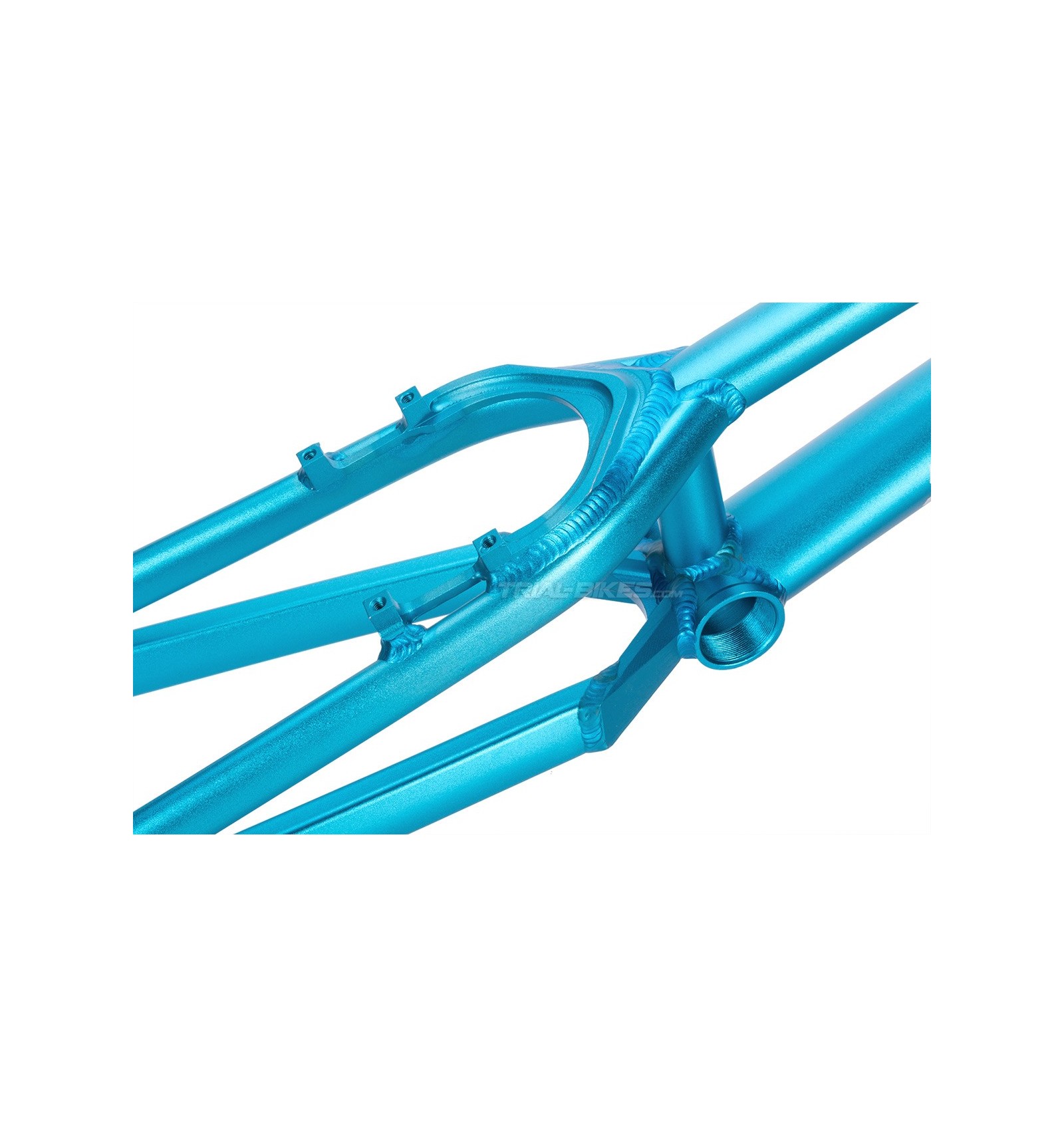

- Bottom bracket shell: 68mm
- Head tube: 130mm

- Wheelbase: 1065mm (short version) and 1085mm (long version)
- Chainstay Length: 380mm
- BB Rise: +85mm (short version) and +80mm (long version)
- Head Angle: 73.0º (short version) and 71.5º (long version)

Fork dimensions
- Length: 405mm
- Offset: +35mm
- Hub length: 100mm
- Steerer tube length: 200mm

Finishes
- Frame and fork are available in anodized silver, black, blue and red
- Silver SAW graphics.

Complete Weight
- 2478g  (1650g (frame) + 767g (fork) + 61g (headset)).

Additional information
This frame comes with a 6-month warranty covering manufacturing and materials defects. Damage incurred from collisions and impacts with obstacles may have a negative effect on the outcome of any guarantee claim.
If you have any doubts, please contact us on info@trial-bikes.com
