Try-All BB30 Crankset

Description and materials
- New high quality Try-All BB30 bottom bracket, which offers a significant improvement in comparison to the current ISIS system with screw-on sprocket or freewheel. This design avoids any chain swaying.
- Suitable for all trials frames with a standard 1.37x24T thread and a 68mm shell.
- Big increase in rigidity, therefore getting a much precise, agile drive train.
- Mechanized cranks and axle, made from CNC 7075-T6 aluminium.
- The right-hand crank is attached to the 30mm axle and it’s not detachable; the left-hand crank is embedded with a toothed system and affixed with a 6mm Allen bolt.
- Classy cups come in anodized red color, with 42mm external sealed bearings, which ensure a smooth running and intense protection against water, mud and dust.
- Includes the new 120.9 18T freewheel (120 engagement points and 9 pawls), now designed to fit a cassette-type attachment system.

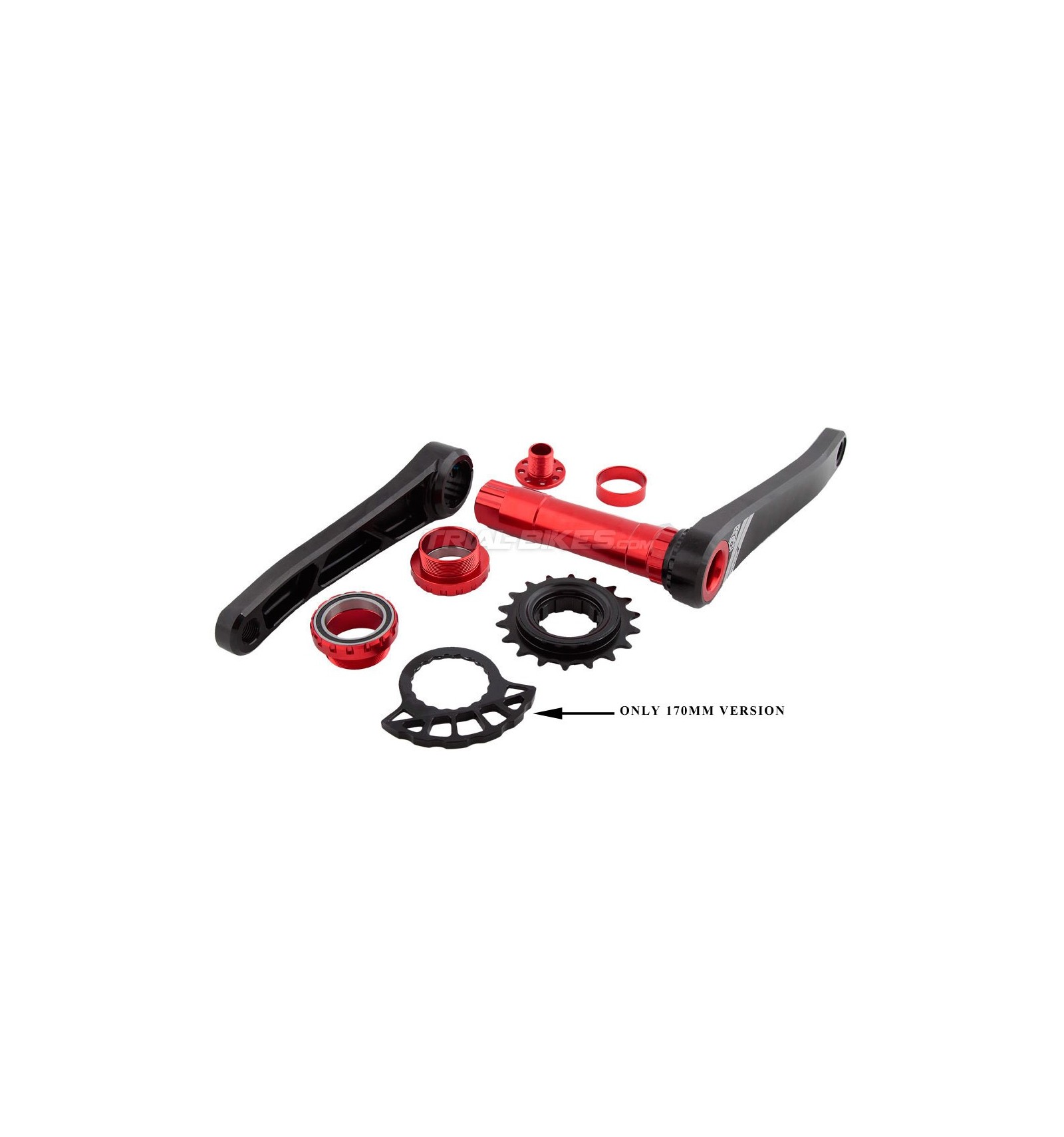

- Ultra light, CNC mechanized Try-All Symetric bashring (only supplied with the 170mm version).

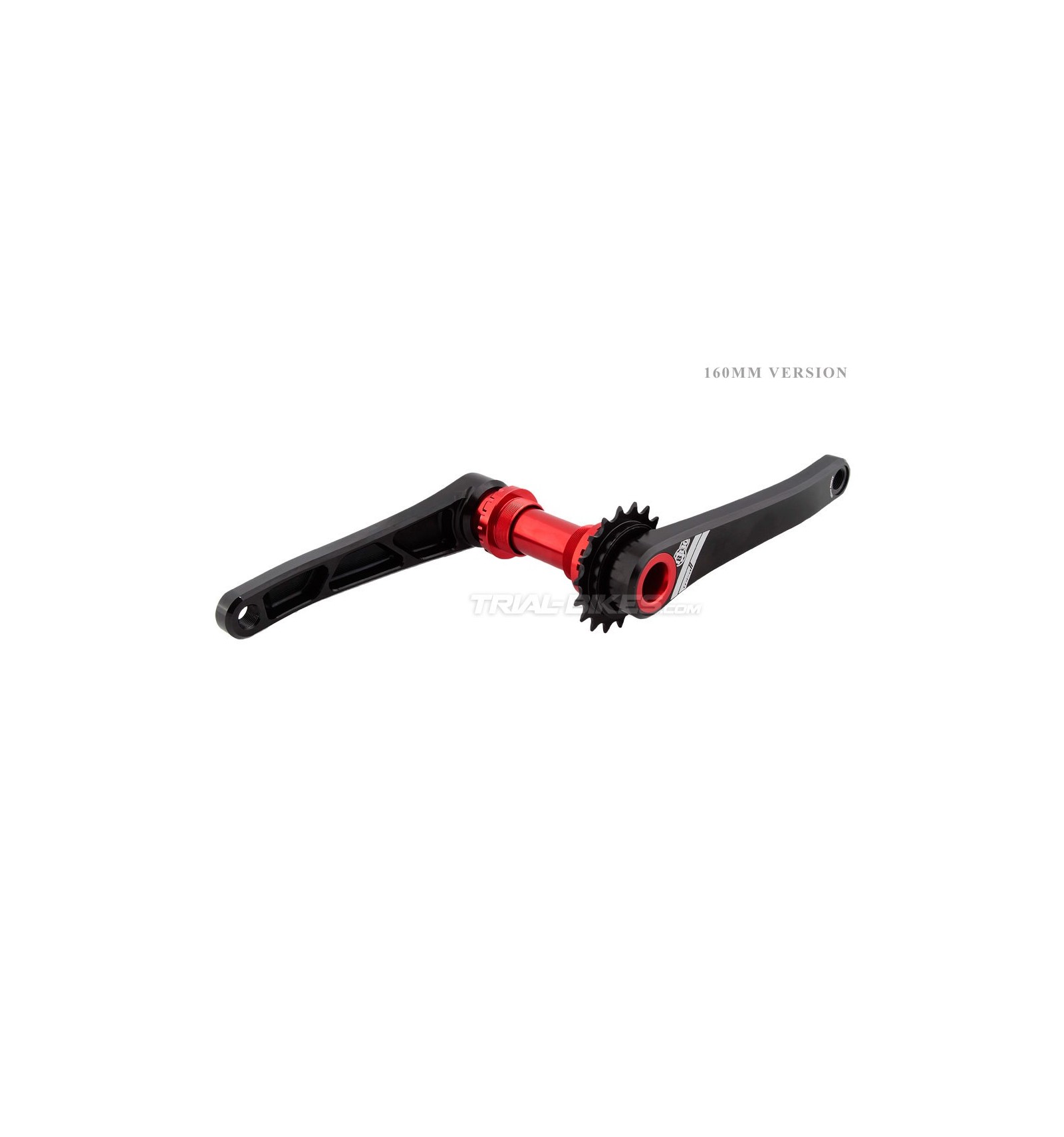

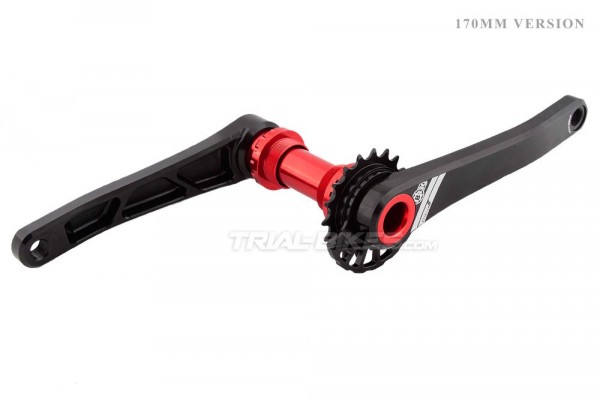

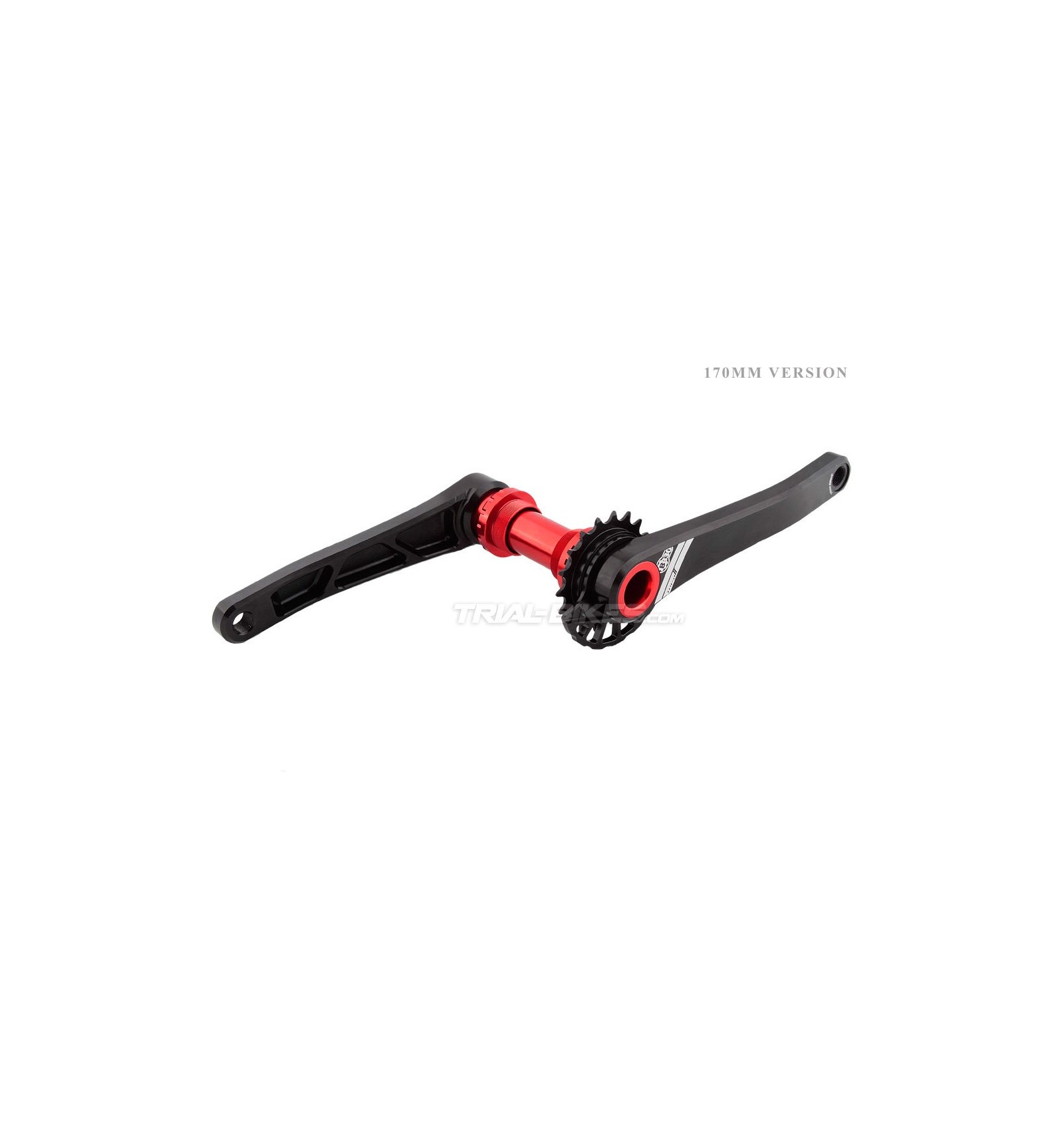

- 2 options available: 160mm or 170mm.

Dimensions
- Length: 160mm or 170mm

Finishes
- Anodised black cranks
- Cups and axle in anodized red

Weight
- 785.90g (160mm) and 825.3g (170mm, bashring included)

Additional information
Please note: when fitting or removing these cups, you must use an open BB30 key, and not the usual bottom bracket key.
