Chorrillas RR Pedals

Chorrillas RR Pedals

Bike Trials Pedals from the Spanish brand Chorrillas, featuring a single cage design and sealed bearings that ensure high durability and smooth rotation by preventing dirt entry.

- Chorrillas bike trials pedals, specially made for trials bikes.
- The axle is made from high quality steel, and can be tightened with a 15 mm spanner or a 6 mm Allen key.
- The cage is made of 7075-T6 high impact strength aluminium alloy, with several drills to reduce weight.
- The body of the pedal is forged from one piece of aluminium and features reinforcement ribs that multiply strength.
- Sealed bearings ensure smooth spinning and prevent dust, mud and dirt from getting into the axle.
- Each pedal comes with four M5 x 12 mm steel bolts with bi-tapered head for a 2.5 mm Allen key.
- The axle has a standard 9/16” thread, compatible with most trials cranks
- Sold as a pair.

Compatible with:
- Cranks with 9/16” pedal thread (most bike trials cranks).
- Chorrilas RR cages and other brands’ cages with the same dimensions as stated below.

Cage Dimensions
- Length: 96 mm.
- Width: 86 mm.
- Depth: 11 mm (lowest point) and 28 mm (highest point).
- Thickness: 2.5 mm.
- Distance between bolt holes: 64 mm (measured from center to center).

Colour

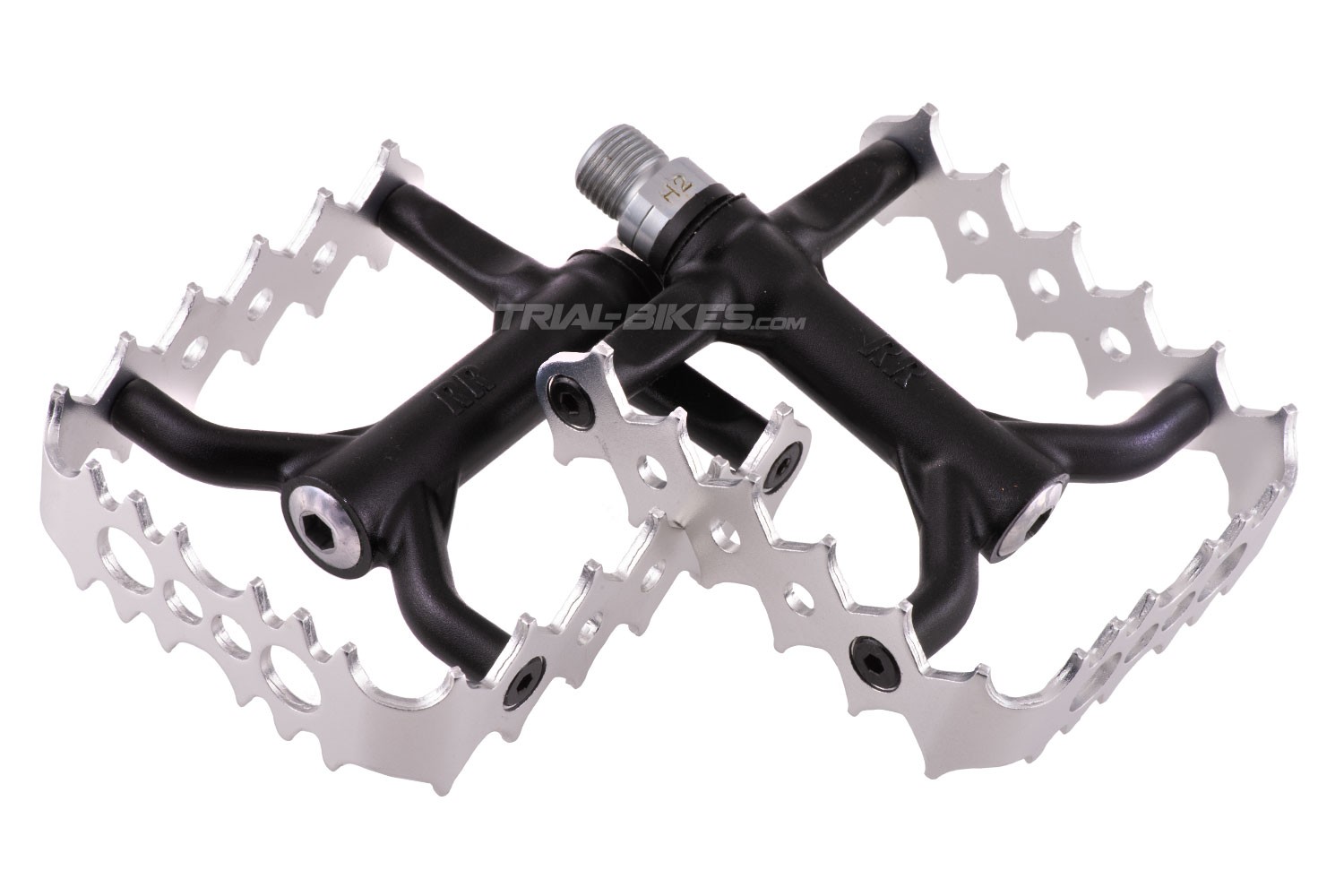

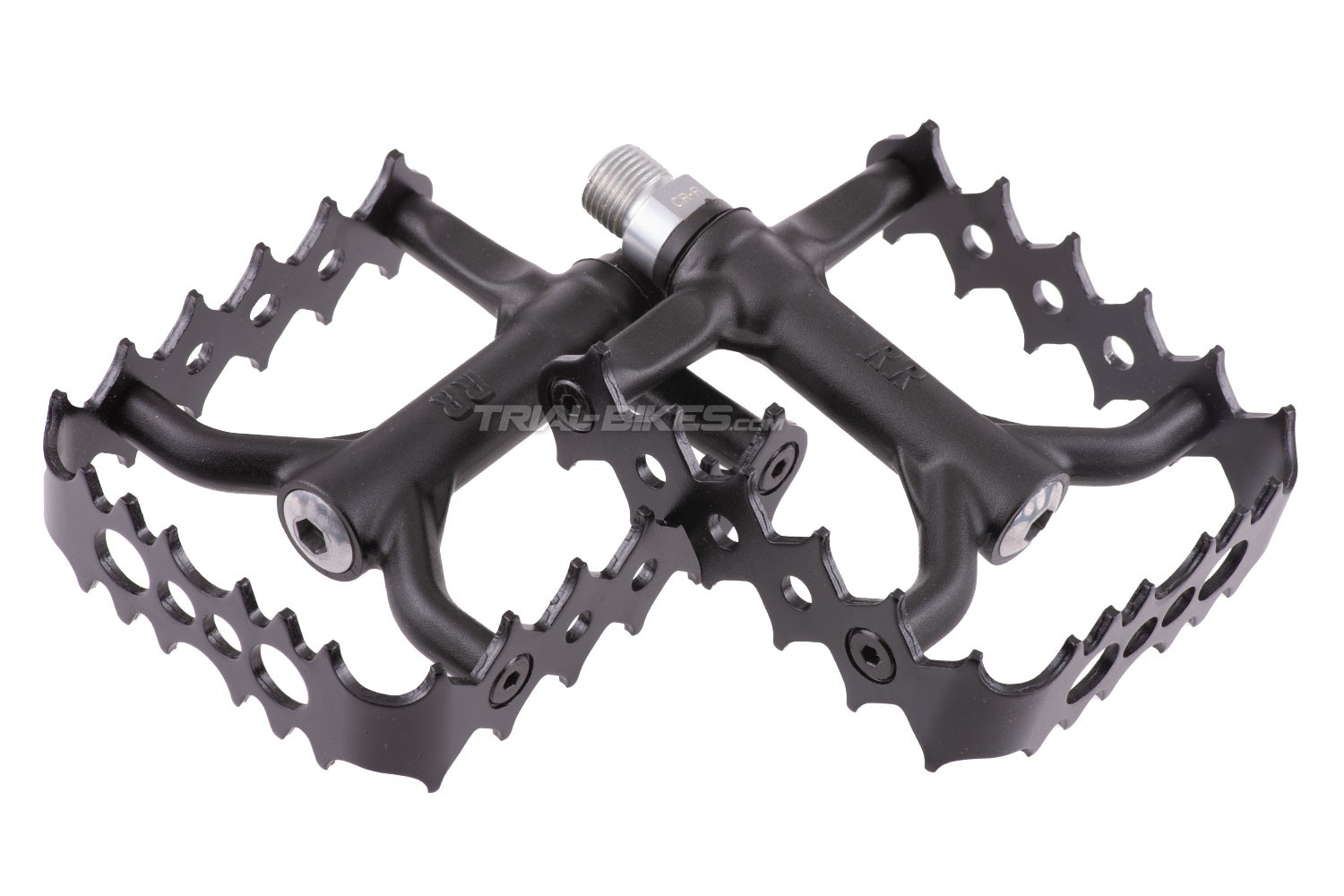

- Black with black or silver cages.

Weight
- 318.80 g (pair).

Additional information
When installing them on the cranks, both pedals screw towards the front of the bike.
Each pedal is marked with R-L for differentiation (R: right pedal, L: left pedal).
