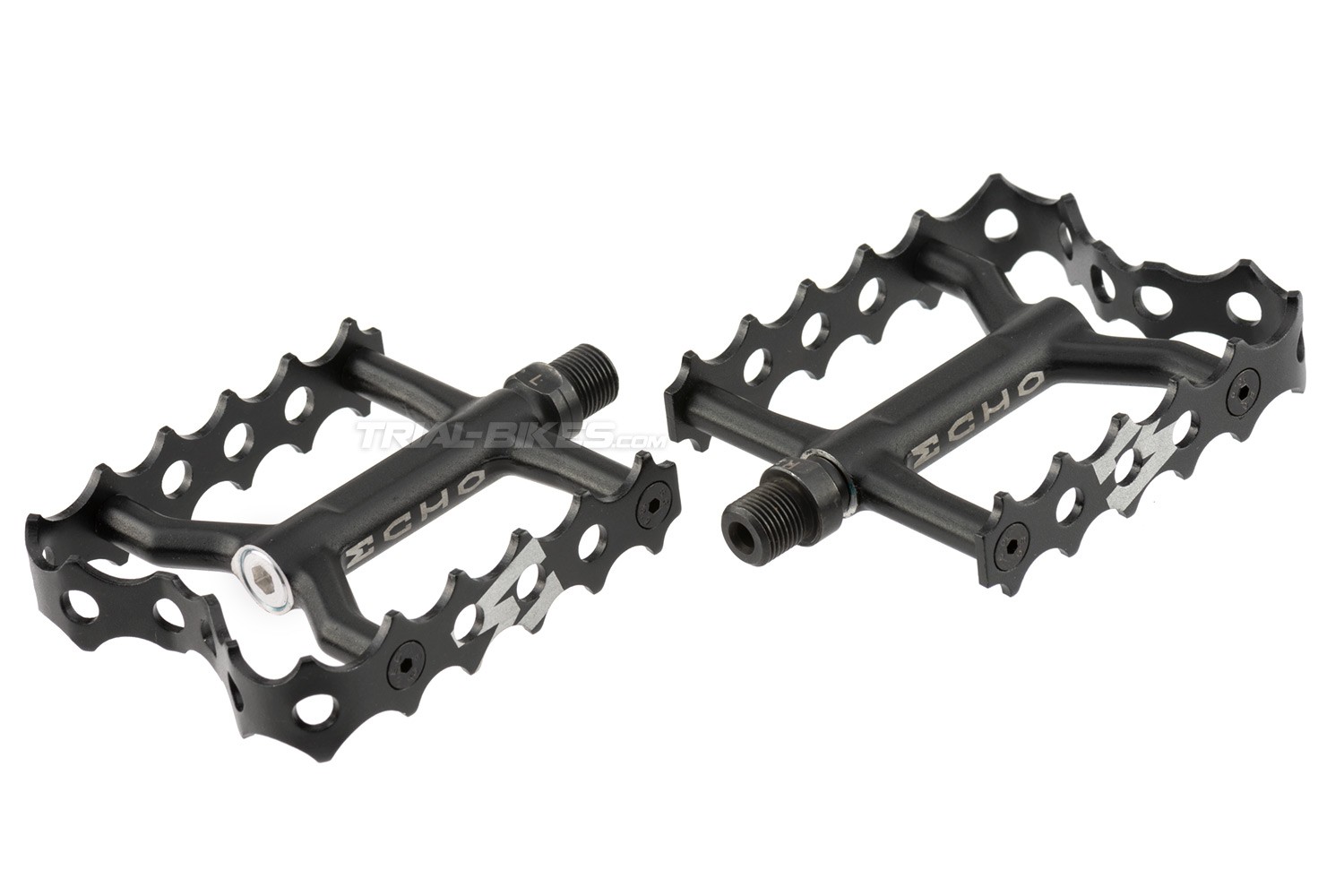

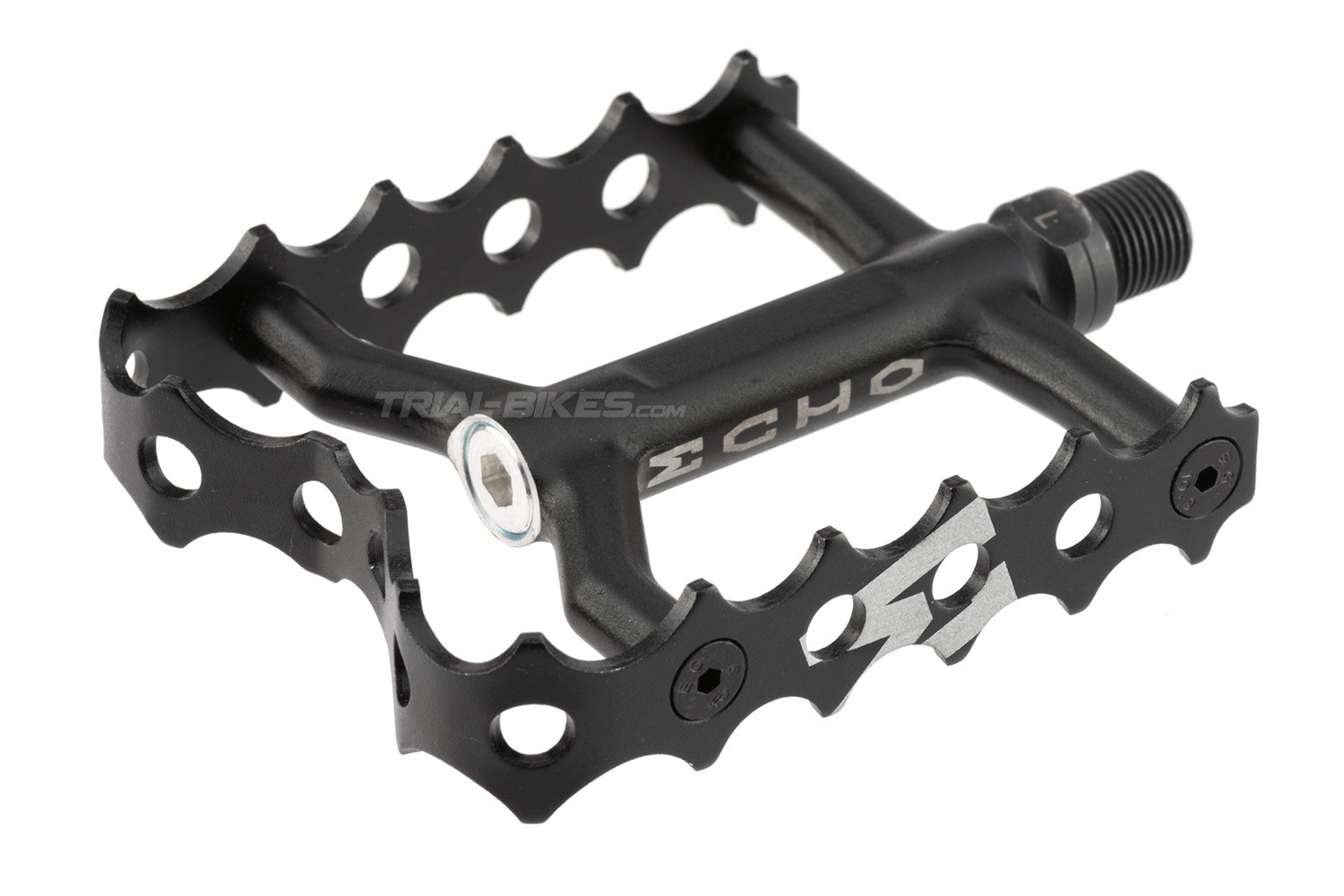

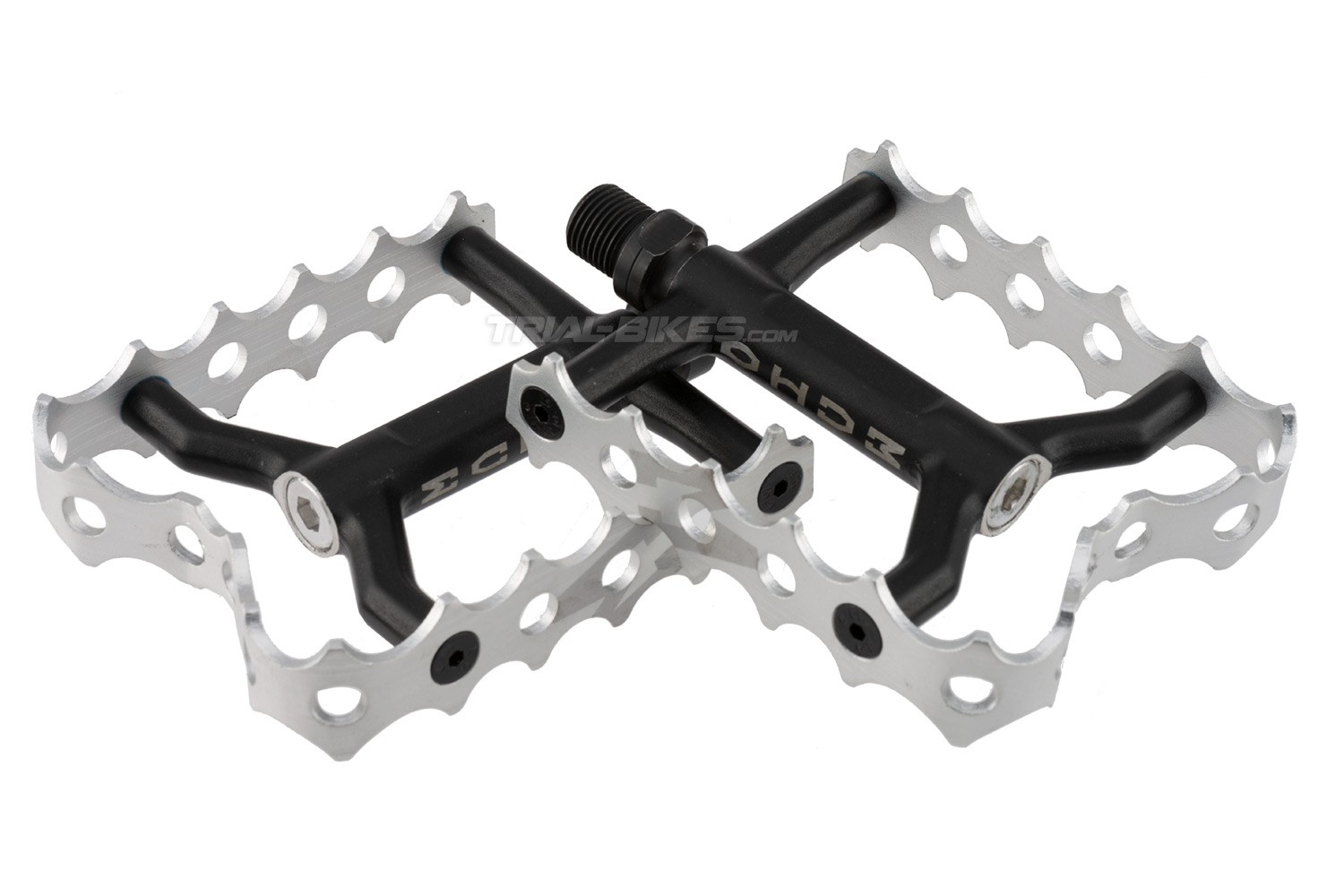

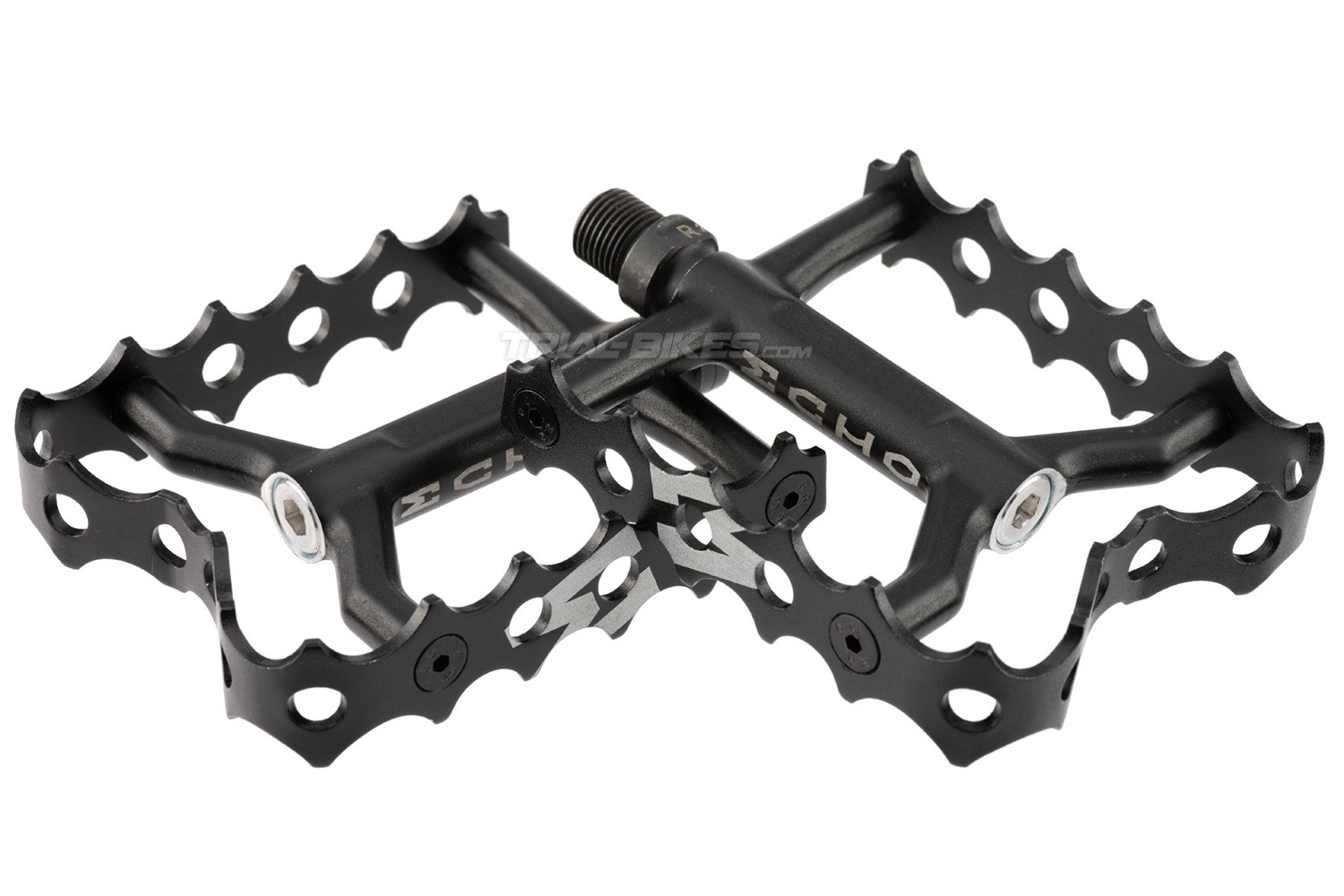

Echo TR M19 Pedals

Echo TR M19 Pedals

Description and materials
- New version of the popular Echo TR trials pedals, updated with a new M-shaped cage.
- The body is forged from 6061-T6 aluminium alloy.
- The cage is made of 7075-T6 aluminium alloy, which ensures higher resistance when hit against obstacles.
- The cage’s M-shape increases the foot’s range of movement without losing any grip.
- Super strong Chrome-Molybdenum (Cr-Moly) steel axle.
- Sealed bearings ensure extended durability and smooth rotation by keeping dirt out.
- These pedals can be easily fitted to the cranks with a 15mm spanner.
- Larger contact surface than most other trials pedals.

Compatibility
- These pedals use a standard 9/16”, so they’re compatible with any cranks with this thread type (most trials cranks).

Cage Dimensions
- Length: 103,5mm
- Width: 90mm
- Depth: 24mm
- Thickness: 2.6mm

Colour
- Black or Silver, with white laser etched Echo graphics.

Weight
- 307g (pair)
