Echo TR 2016 Platform Pedals

Description and materials
- New version of the popular Echo TR platform pedals, as a novelty from Asian brand Echo.
- These pedals have been completely re-designed, aiming to reduce its weight while also improving grip and strength.
- Uses a slim CNC-machined platform, made of high quality 6061-T6 aluminium alloy.
-The outer edges are joined to the centre through several nerves that add extra strength with almost no weight addition.
- 100mm wide design, which ensures a large contact area at all times.
- High quality, replaceable sealed bearings guarantee a smooth, reliable performance.
- High quality Cr-Moly steel axle ensures more than enough strength.
- Each pedals has 16 replaceable pins (8 on each side), optimally placed to provide maximum grip.
- They can be installed with a 15mm spanner.

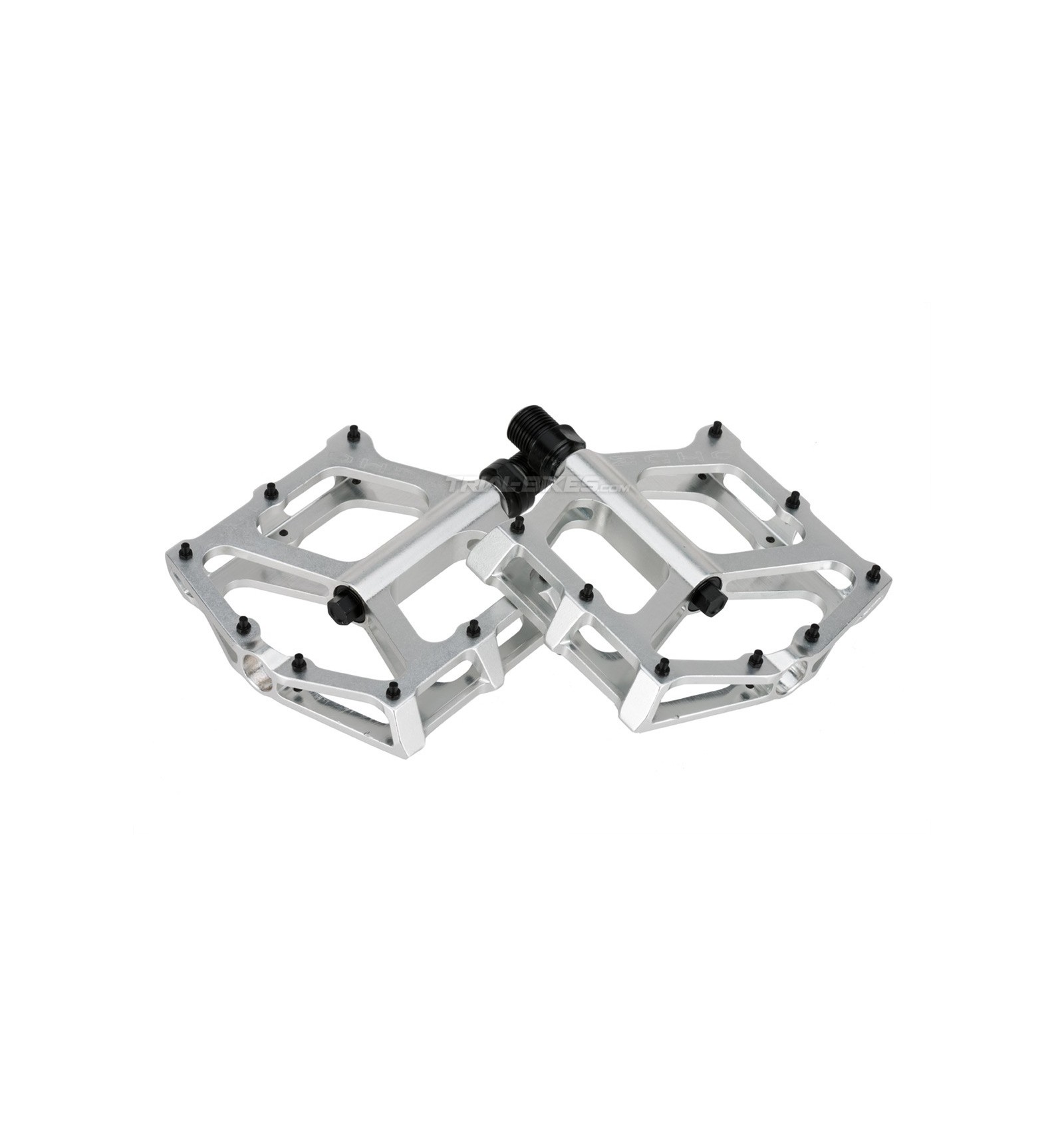

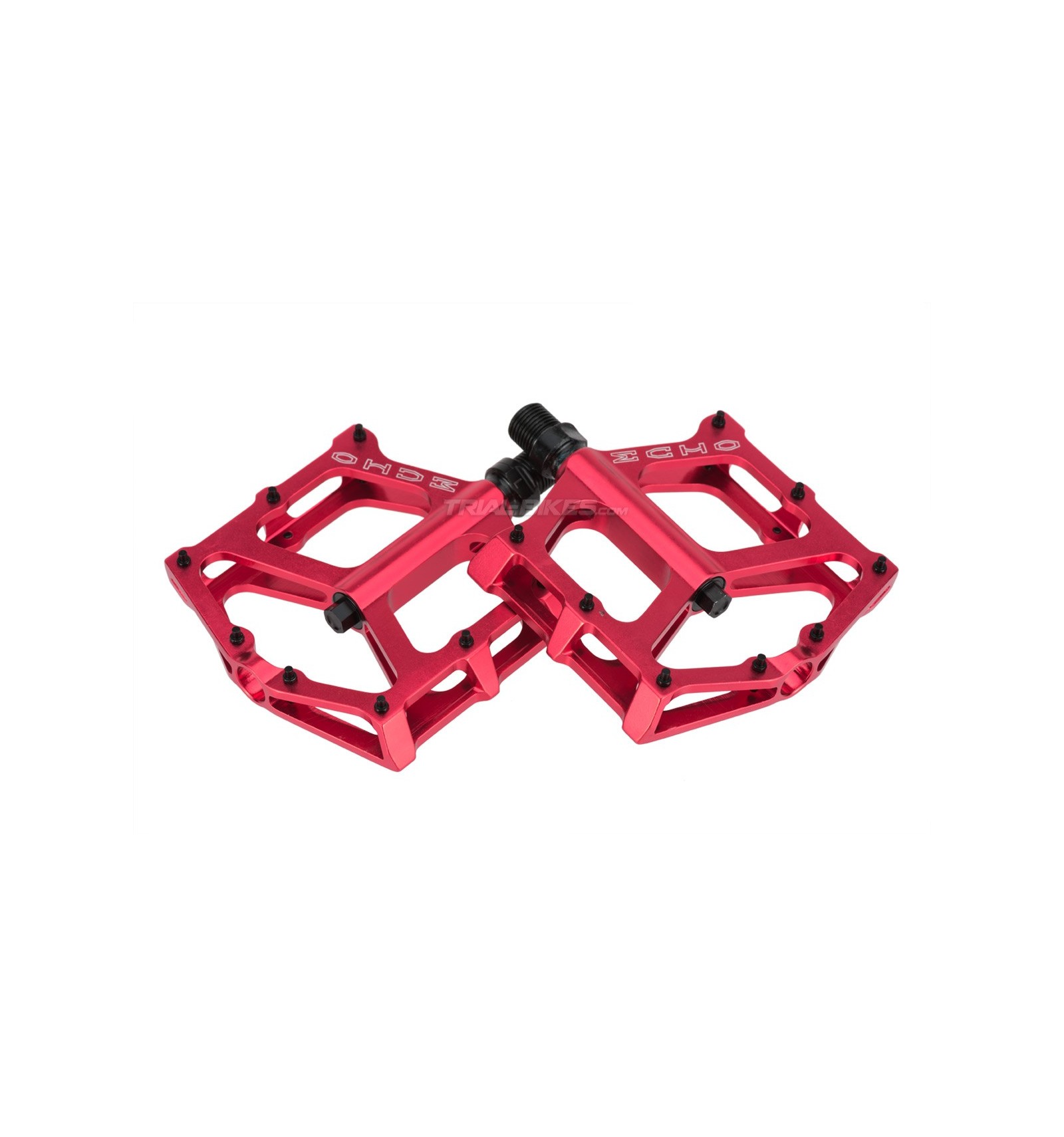

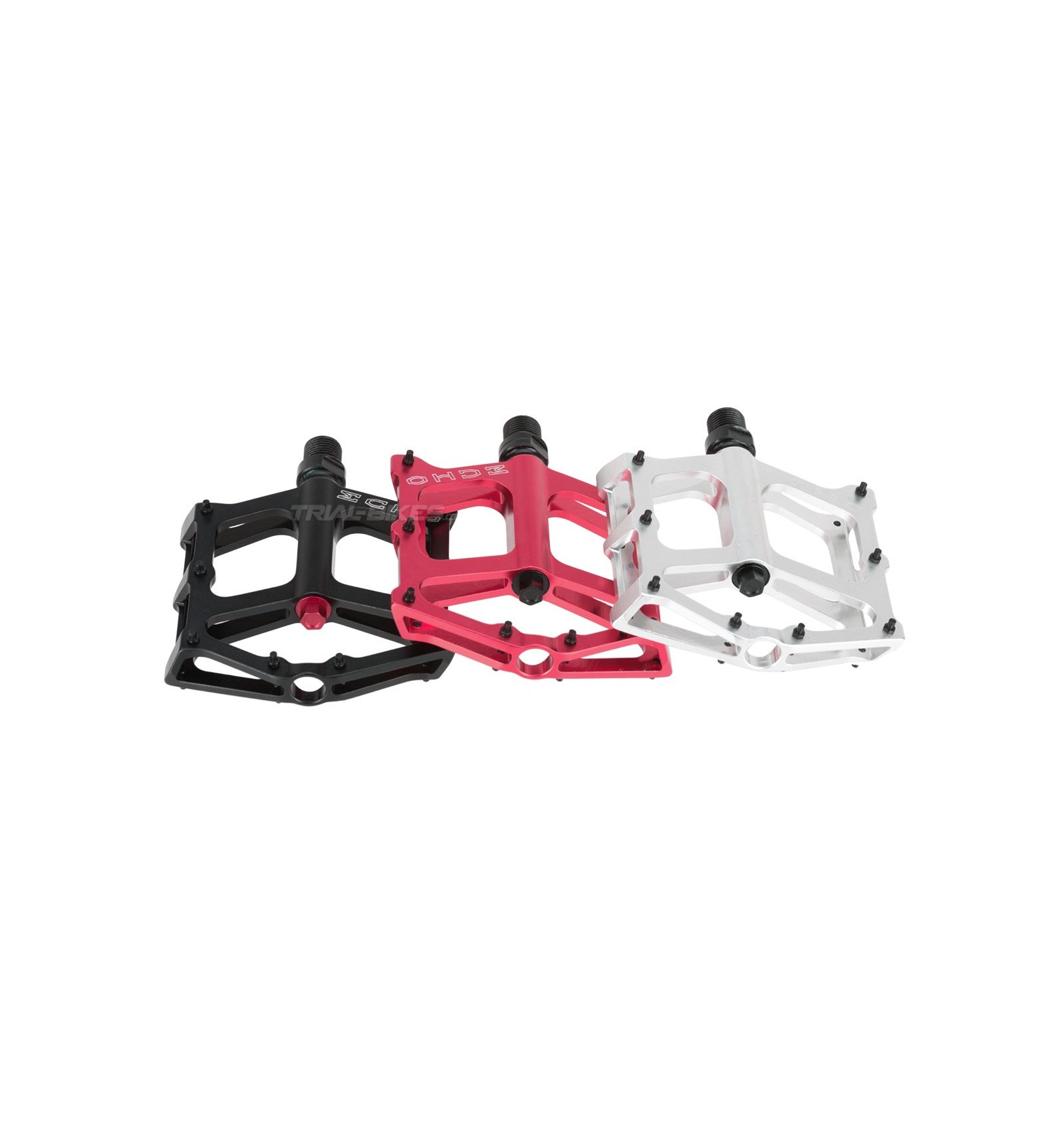

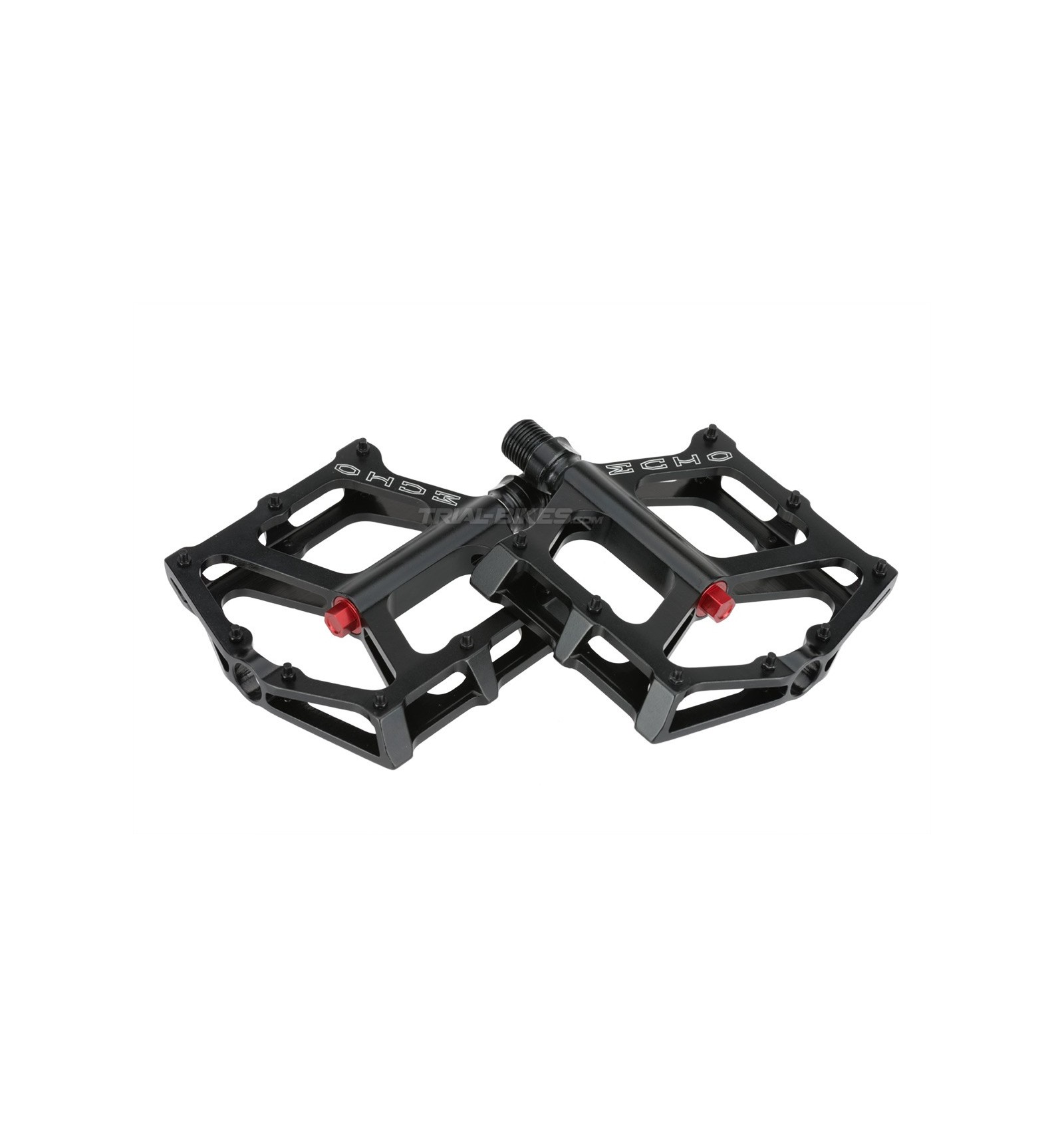

- 3 different finishes available: anodized red, silver or black, with grey laser etched Echo graphics.

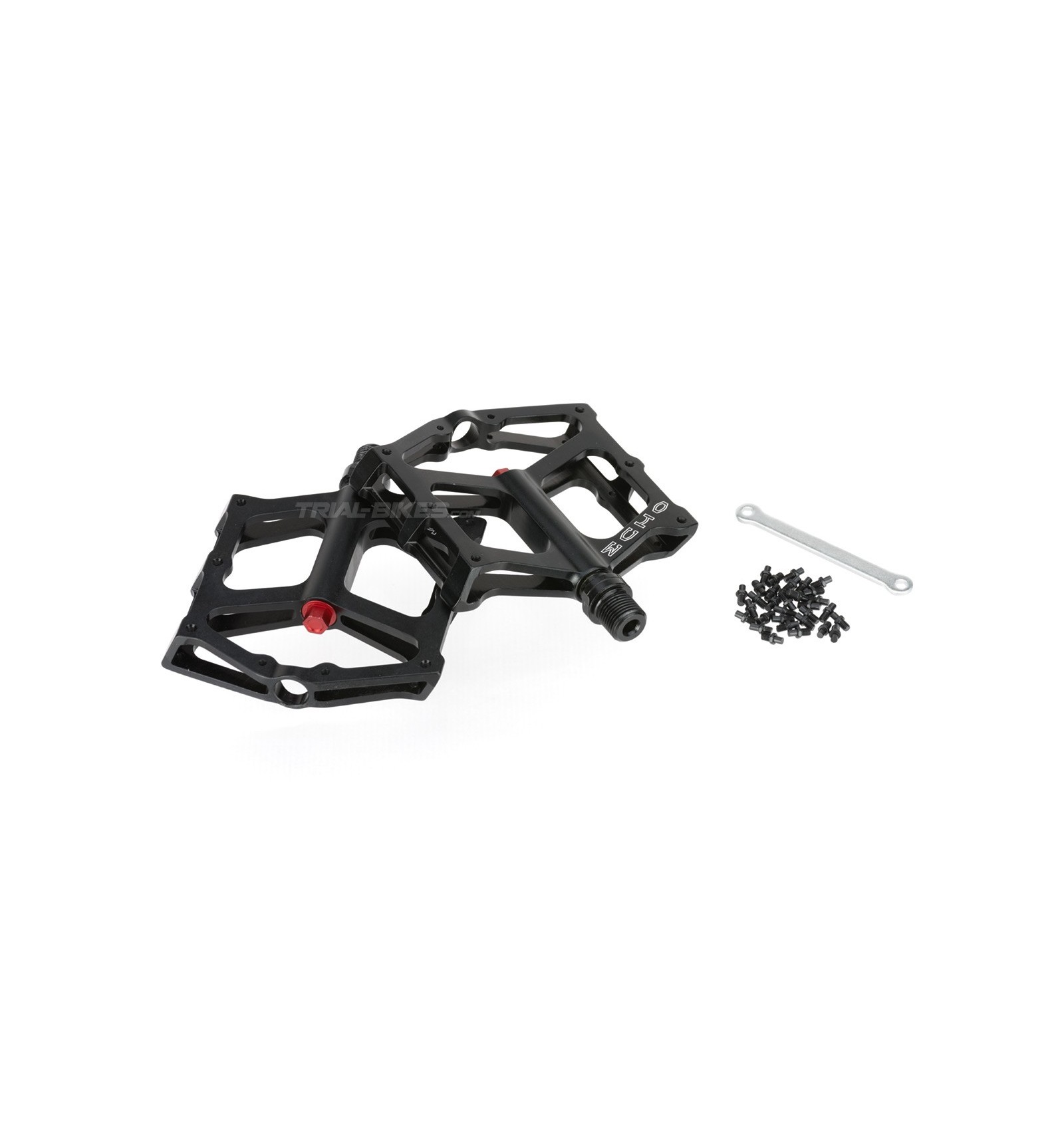

- Note: the pins in these pedals are not installed, they are supplied in a tiny bag with a special Echo tool to install them on the pedals.

Compatibility
- These pedals have a standard 9/16” thread, therefore they are compatible with all cranks with this pedal thread (most of them do!).

Dimensions
- Length: 94mm
- Width: 100mm
- Depth: 16mm

- Pins: M3x4mm (4mm spanner)

Finishes
- 3 different finishes available: anodized red, silver or black, with grey laser etched Echo graphics.

Weight
- 299.20g (pair) + 16 steel pins at 12.98g

Additional Information
Both pedals threads are tightened towards the front of the bike. The right pedal comes with an “R” on the axle, and the left one comes with an “L”.
