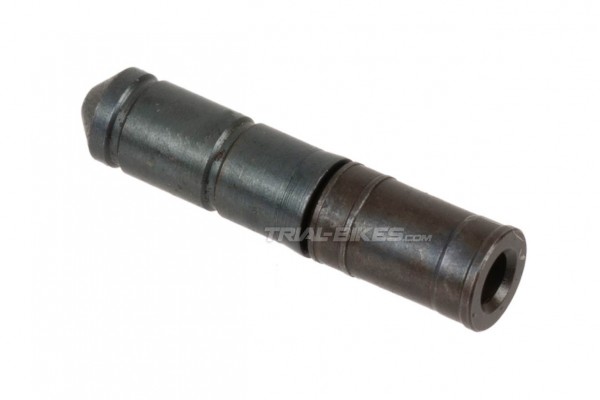

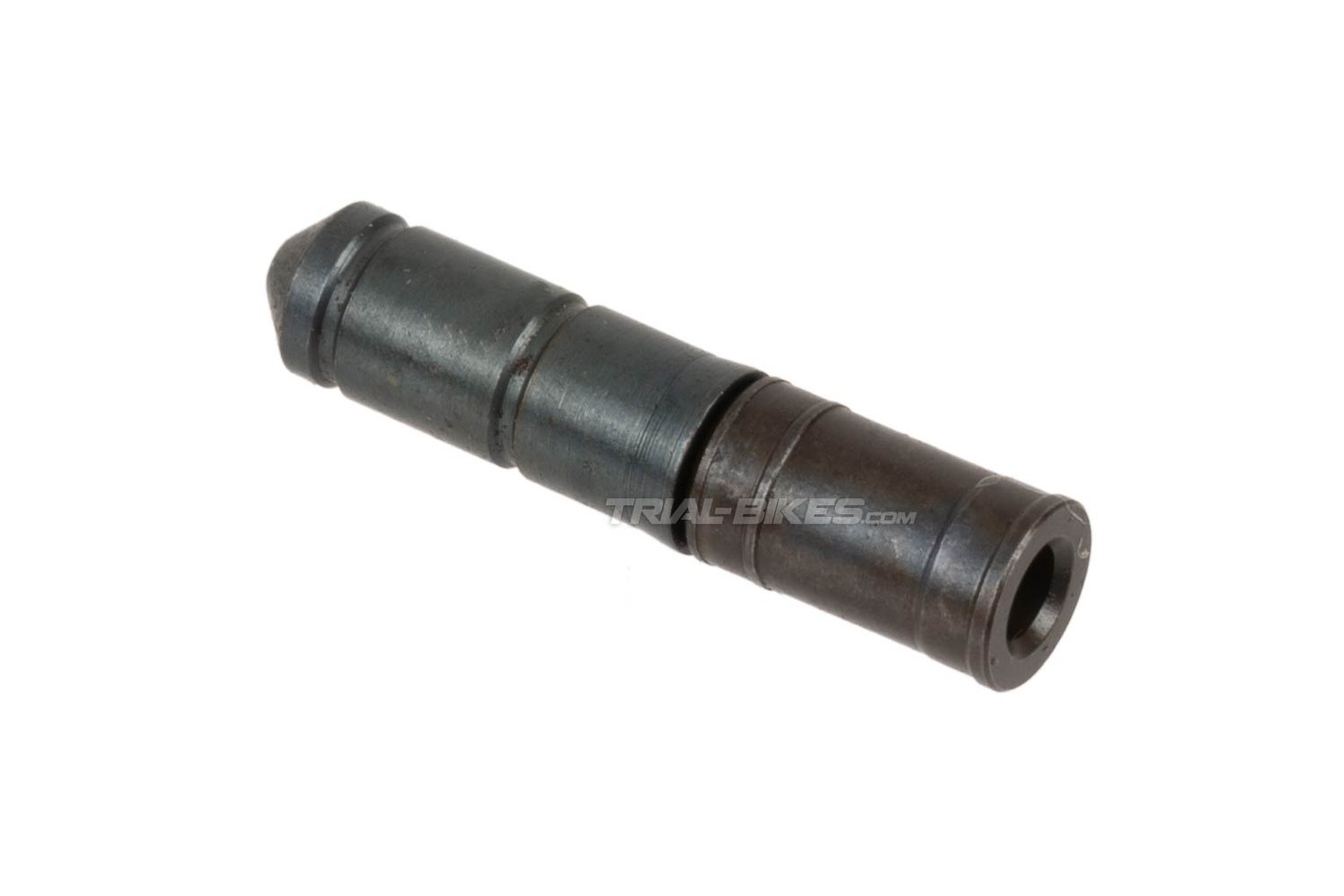

Locking Pin Chain from the prestigious KMC brand.
- Double length than ordinary pins
- Suitable for all KMC X9.73 chains, whose first section helps the pin fitting to the chain
- Sold individually.
Dimensions
- 6 mm long.
- Diameter: 3.5 mm.
Compatibility
- Only compatible with KMC X9.73 chains.
Finishes
- Black.
Weight
- 1.14 g.
Installation Instructions:
Step 1:Connect both ends of the chain with the Bullet Type connecting pin.(Fig.1)
Step 2:Put the chain on the Chain tool and tighten the adjustment nut.(Fig.2)
Step 3:Use a Chain tool and turn the rotating bar to advance the Bullet Type connecting pin into the chain. Next, loosen the adjustment nut and remove the chain. (Fig.3)
Step 4:Use pliers to break off the excess part . (Fig.4)
