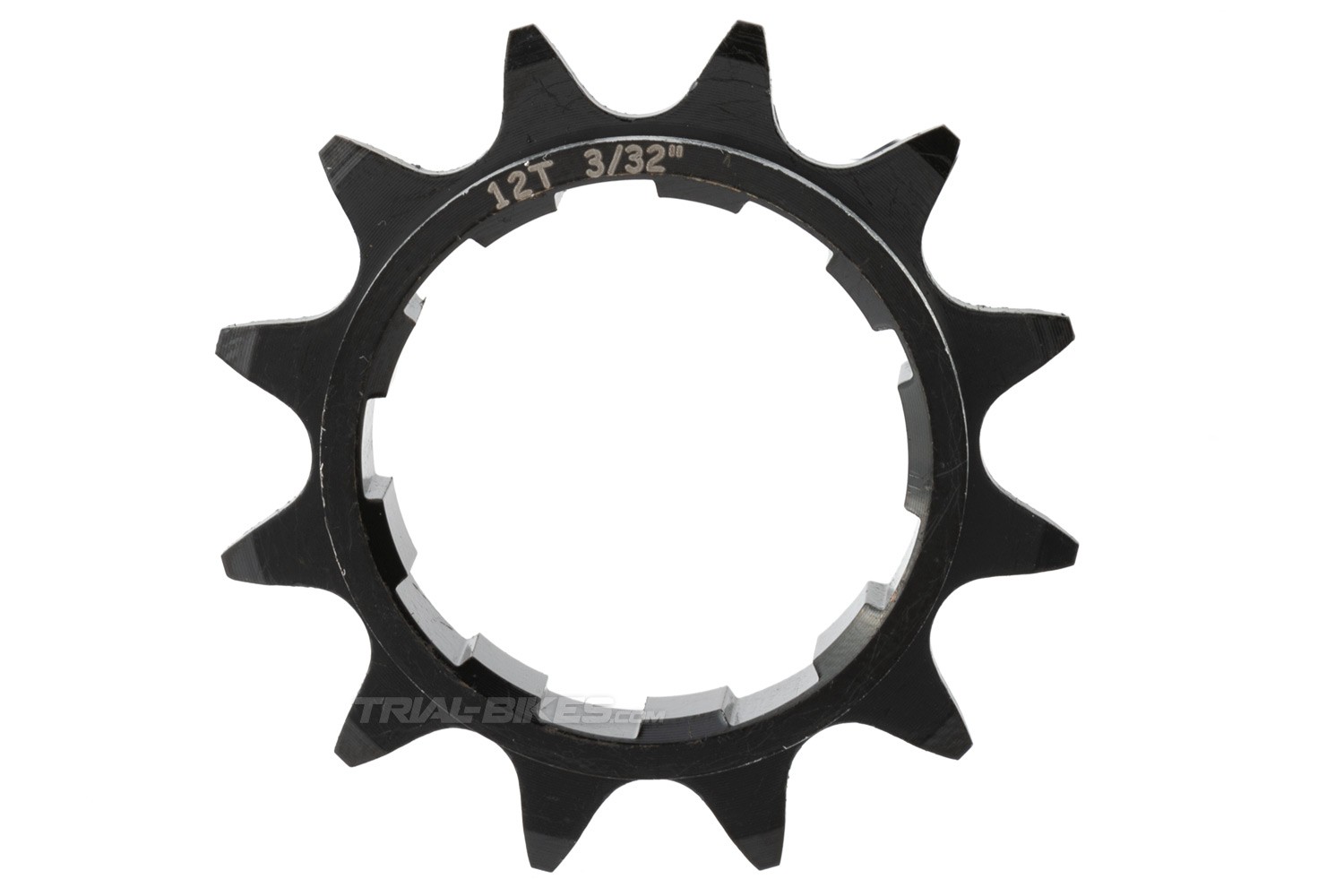

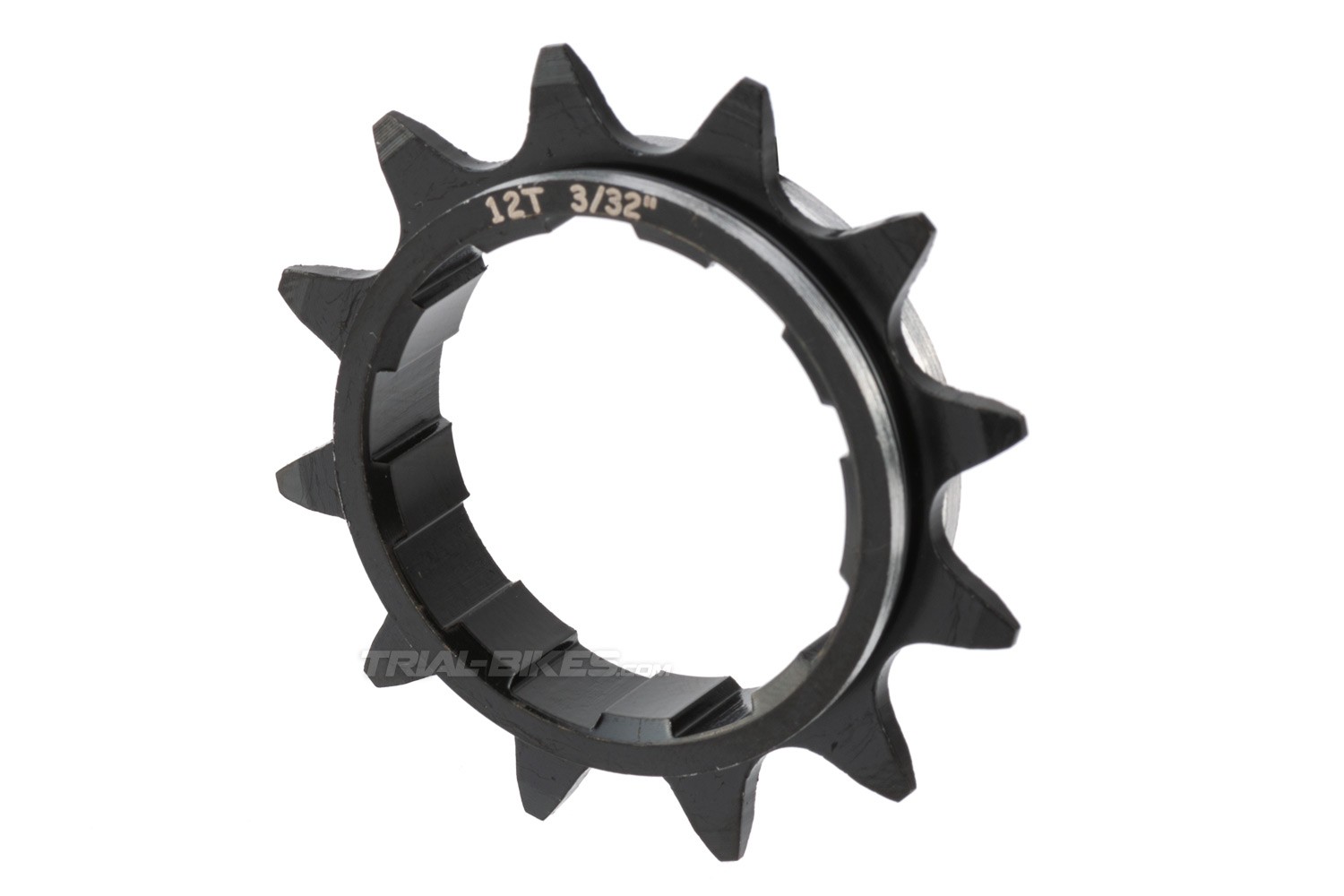

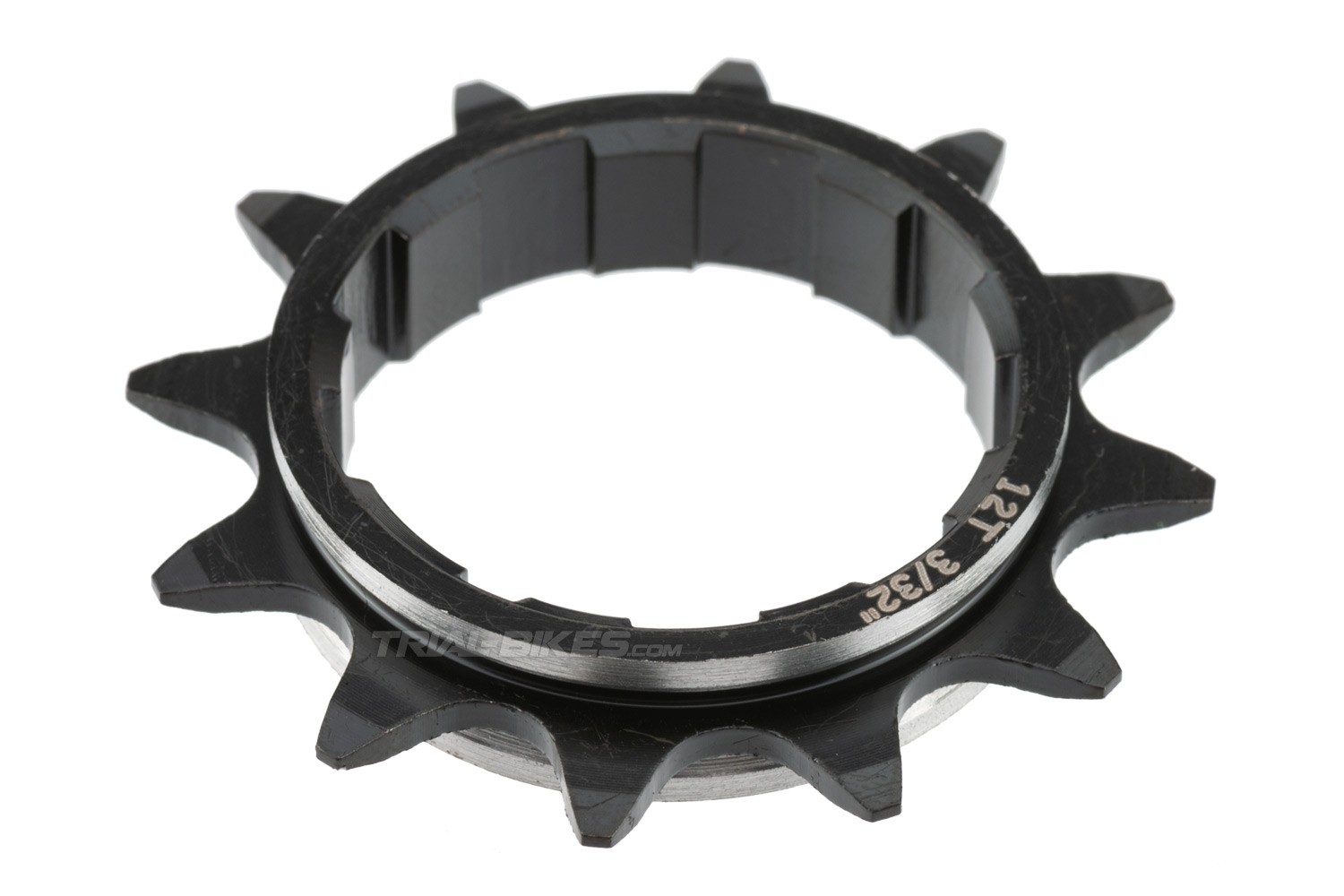

Clean splined sprocket, with Shimano HG standard splines. Available in 12T, 13T and 15T size. Made of super strong steel, and it’s compatible with narrow and wide chains.
Description and materials
- Clean splined sprocket, designed in Spain under the highest quality standards.
- Made of high-strength steel, which ensures much higher durability and reliability than aluminium sprockets.
- Features Shimano HG splines (sprocket is pressed onto the hub’s or crank’s splines, without threads).

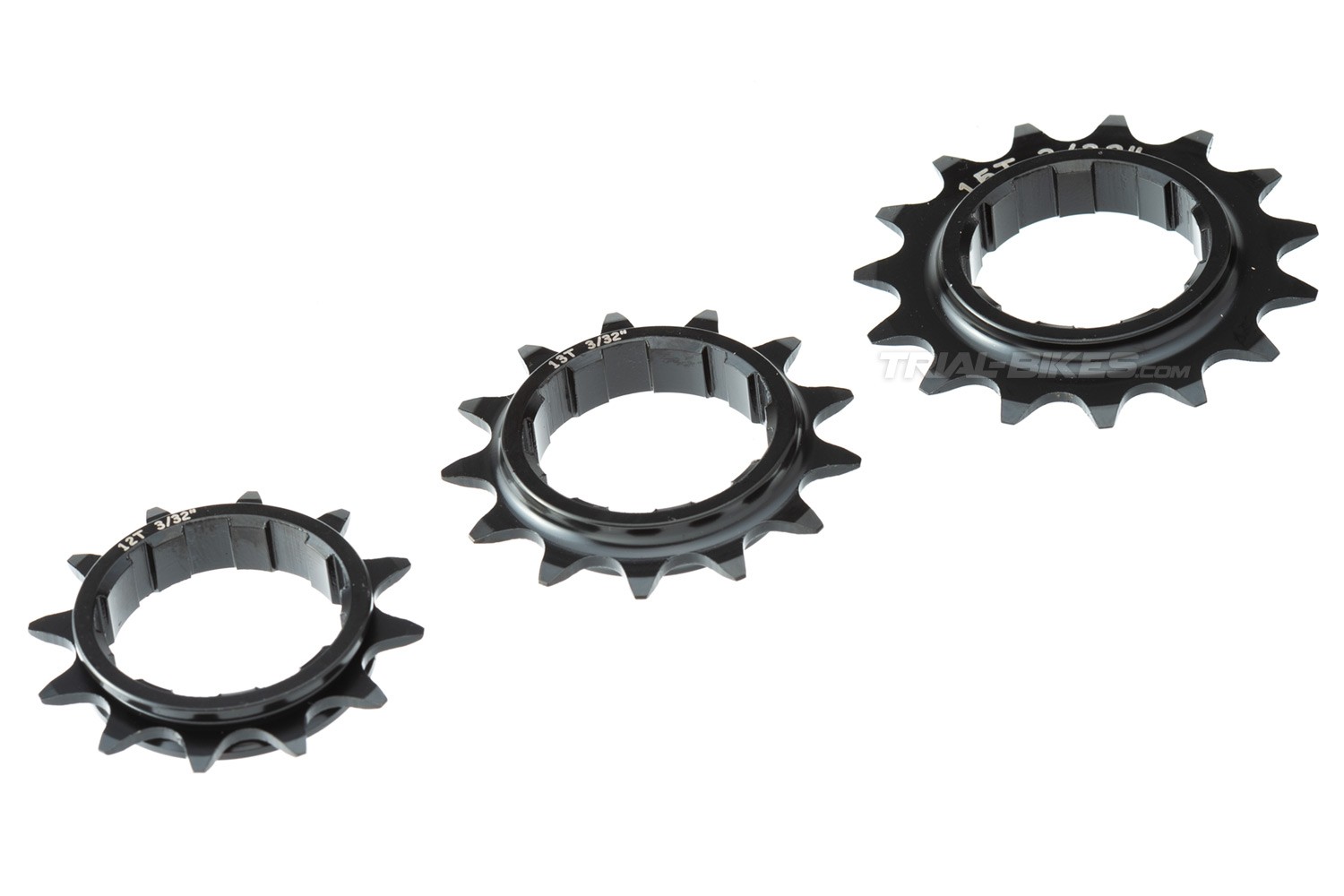

- Available in 12, 13 and 15 teeth.
- 10mm wide base, with the teeth on the centre of the base to ease chain alignment on most frames.
- Sold individually.
Compatible with:
- Cranks and hubs with Shimano HG splines.
- 1/2'' x 11/128'', 1/8’’ and 3/32’’. chains.
Note: The 12-tooth version is not compatible with 1/8’’ and 3/32’’ chains without prior modifications to the sprocket. This incompatibility specifically arises when using a sprung chain tensioner,. In such cases, the chain will skip and will not function properly unless the height of the sprocket where the chain sits is reduced.
Dimensions
- Number of teeth: 12 (12T), 13 (13T) and 15 (15T)
- Base width: 10mm
- Teeth position: Centre
Color
- Black, with white laser etched graphics
Weight
-Â 35.08g (12t), 48.24g (13t) and 58.82g (15T)
| TEETH | 12T |
| TEETH | 15T |
| TEETH | 13T |
