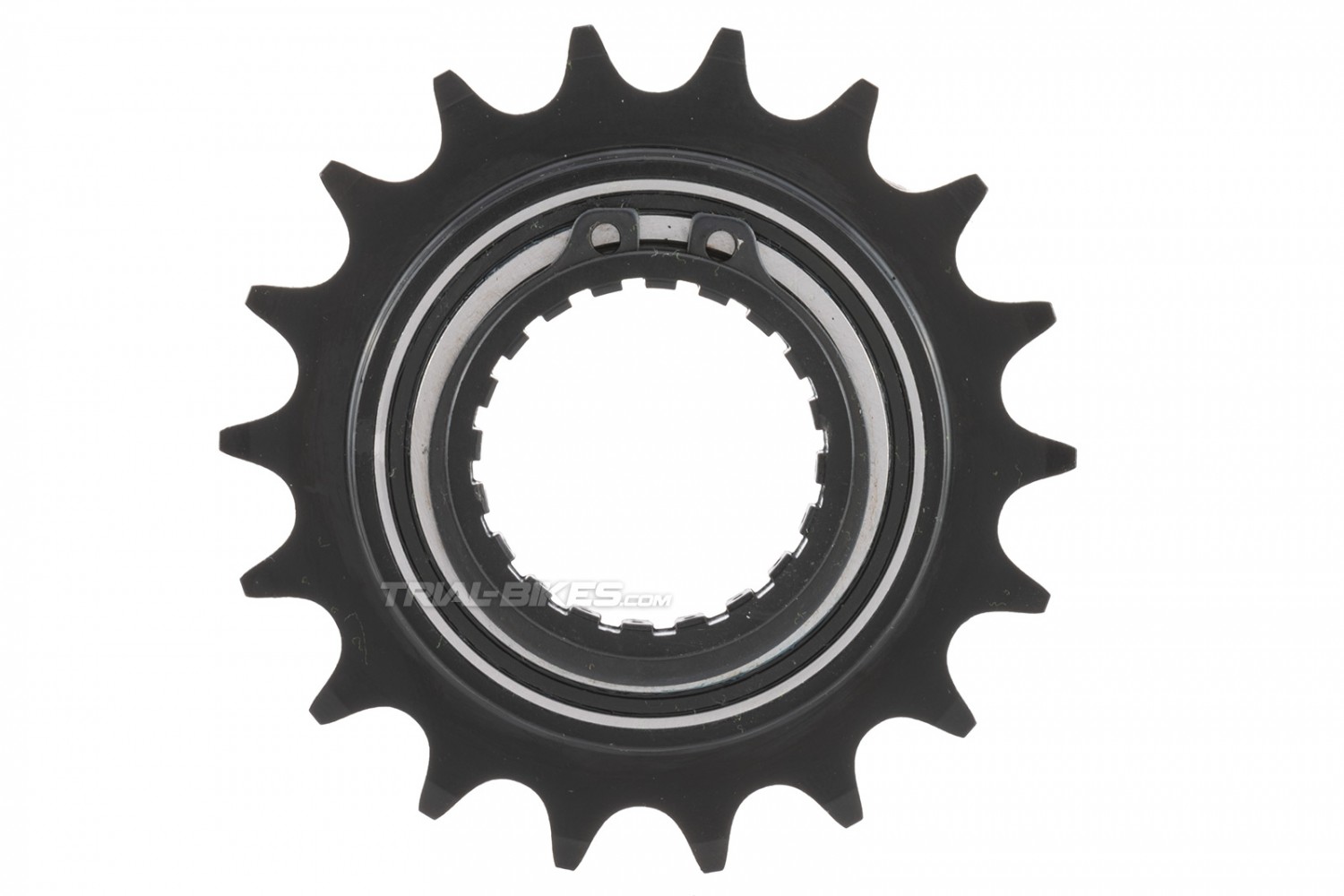

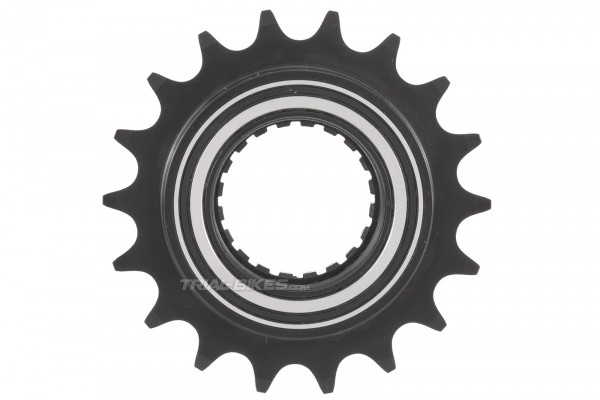

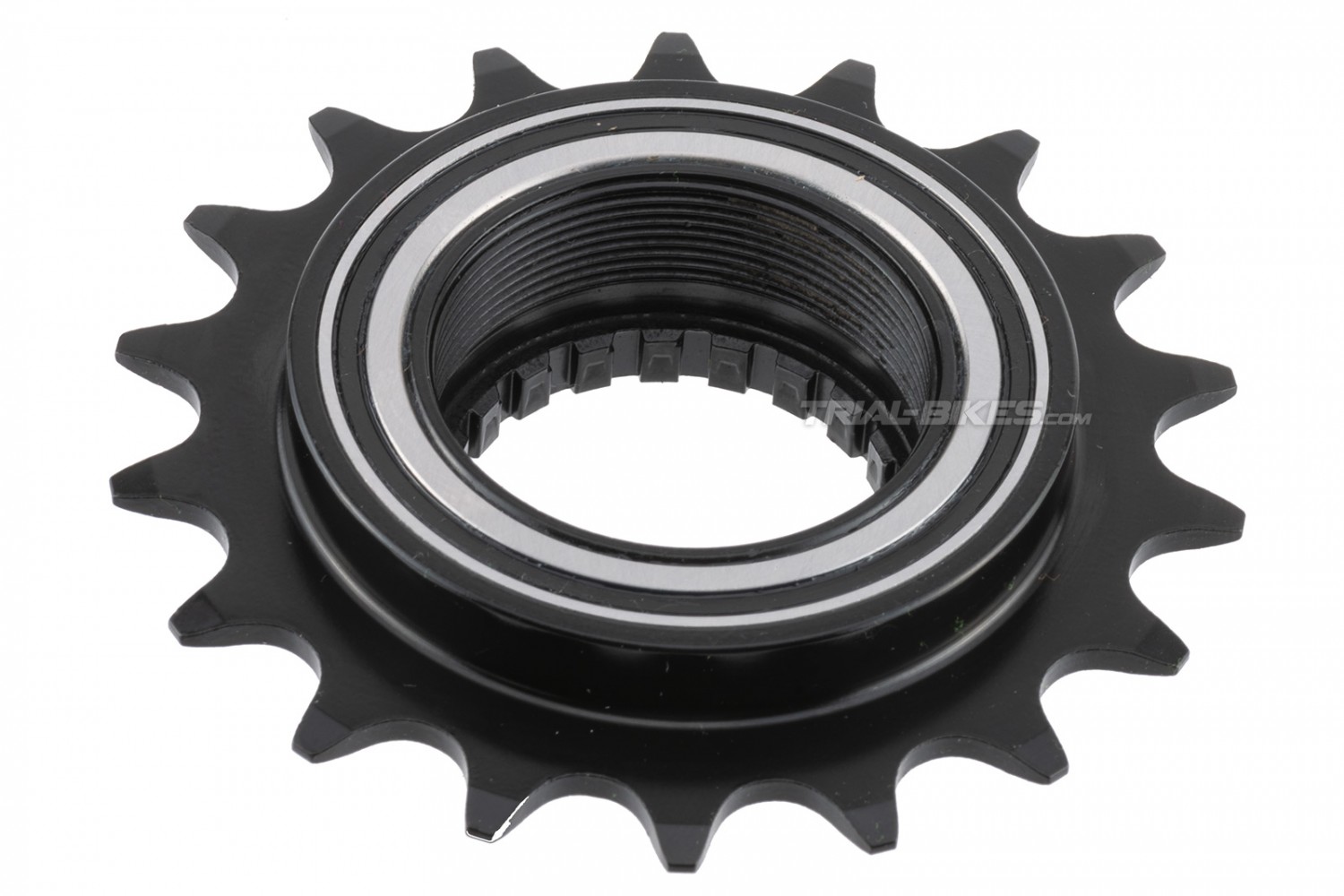

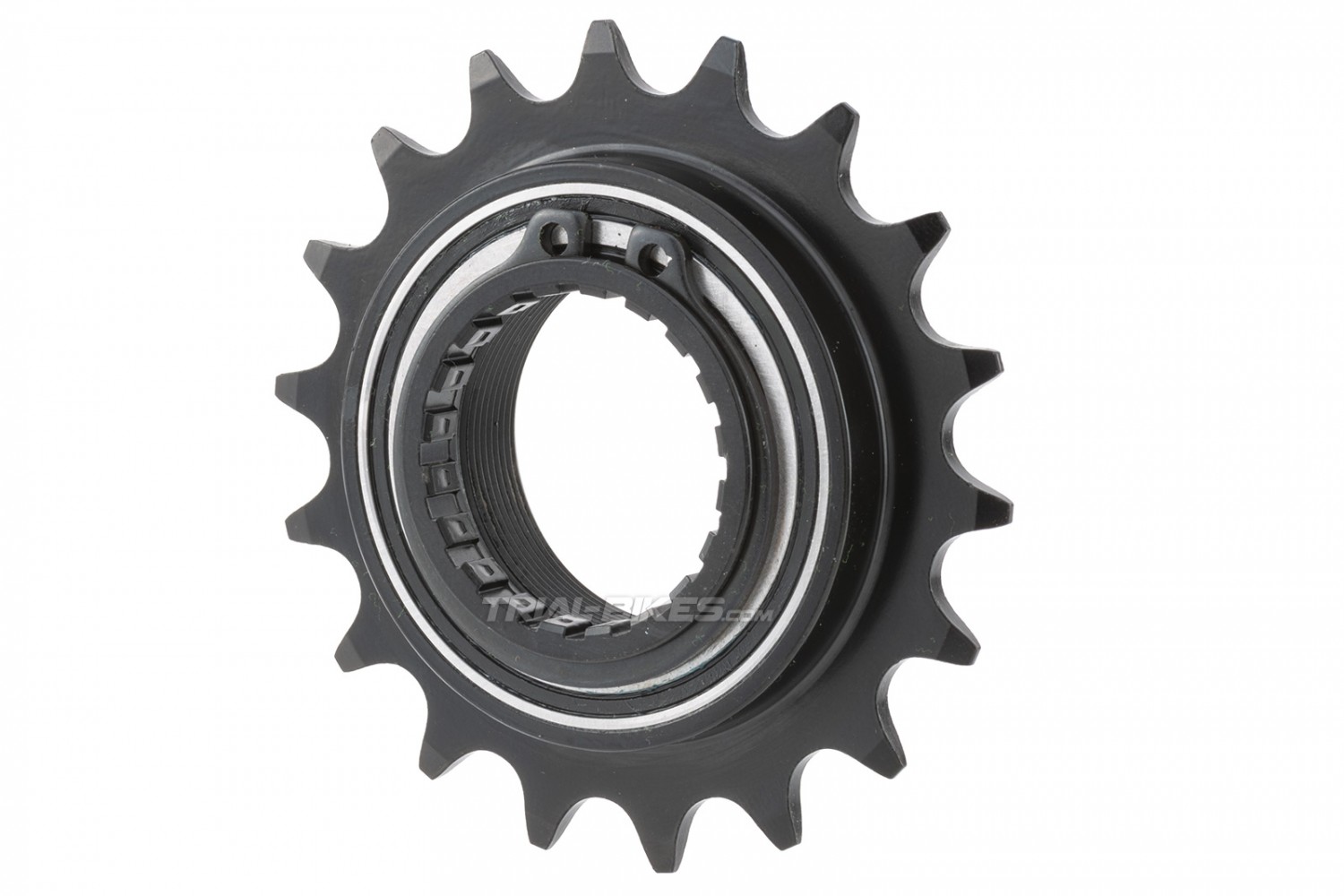

- High quality 135.9 freewheel, 100% developed for bike trials,
- Both the outer ring and body are made of high-strength forged steel.
- Dual sealed bearing design gives great drive shell stability. Please note that this produces more 'drag' than a regular single speed freewheel
- Reinforced springs ensure higher reliability and durability.
- It has 3 groups of 45 engagement points each, for a total of 135 engagement points per revolution.
- Can be removed with a standard ISIS BB tool.
- Standard 1.37"x24tpi thread, compatible with most screw-on cranks and rear hubs for bike trials.
- Sold individually.
Compatibility
- Compatible with both 1/8" and 3/32" chains.
- Standard 1.37"x24tpi screw-on cranks and hubs.
- Not compatible with BB30/AS30 or splined cranks or hubs.
- Note: You must use a freewheel spacer between the freewheel and the bashring (or crank arm if you aren't using a bashring), unless you are using a bashring with a wider section/lip at the base.
Dimensions
- Number of teeth: 18
- Number of pawls: 9
- Engagement points: 135
- Tooth width: 2.2mm
- Overall thickness: 16mm
Colour
-Black
Weight
- 175.72g
Additional Information
It is highly recommended to bed in the freewheel for a few hours before trials use to make sure any excess grease works away from the freewheel and the pawls work correctly.
If you want to speed up the process, just apply some oil between the outer teeth and the centre of the freewheel.
If you don’t bed in the freewheel before trials use, it won’t work correctly and will skip, therefore damaging the pawls and ratchet.
Damage occurred to the freewheel because of inappropriate use will void the guarantee.
| TYPE | Threaded |
| TEETH | 18T |
