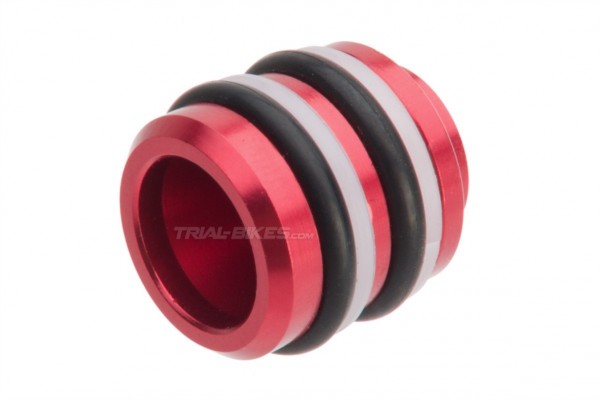

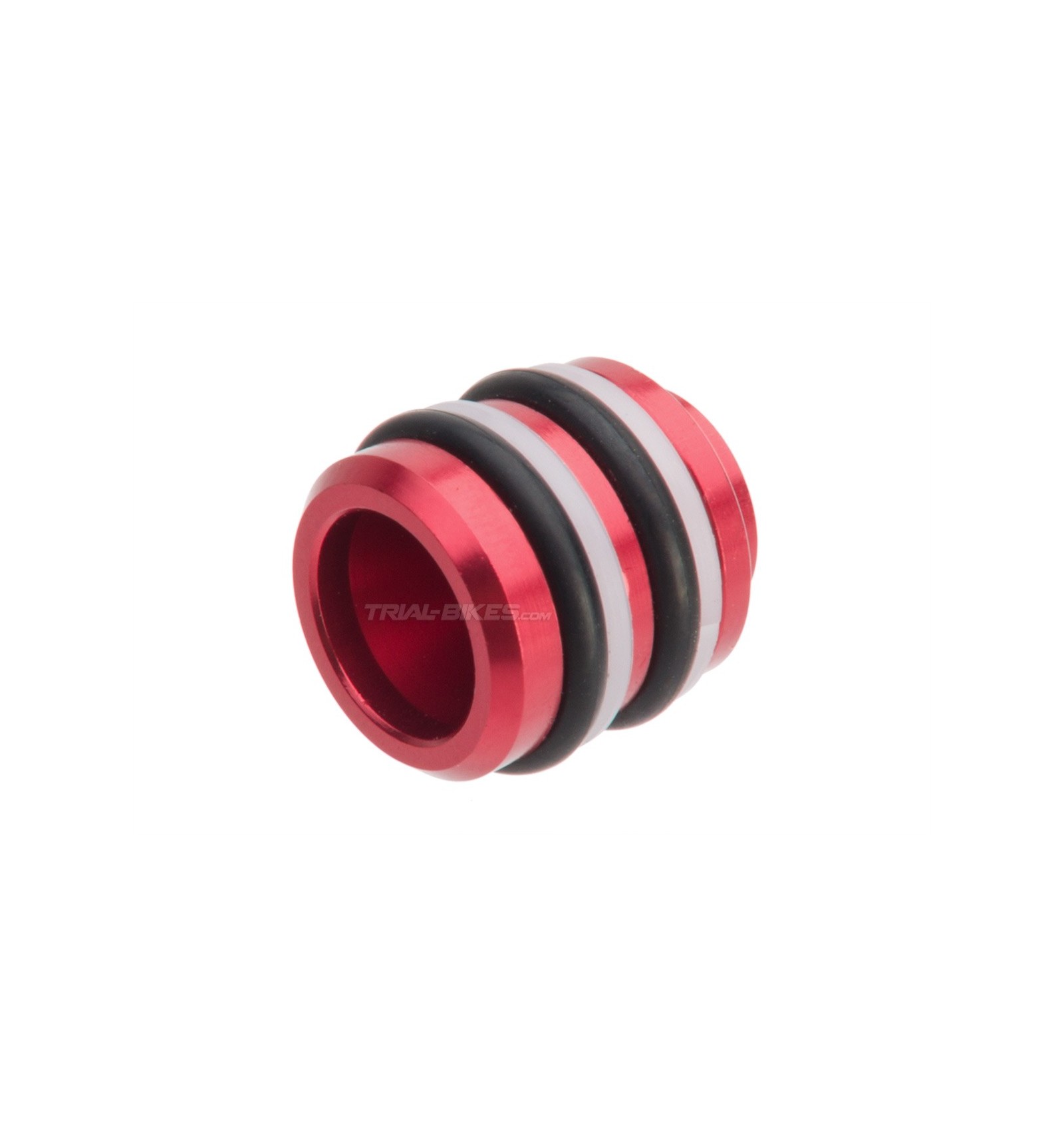

Racing Line 2015 Lever Piston

Description and materials
- New edition of the Racing Line aluminium lever piston, for the 2015 season.
- The piston body has been completely re-designed, now much  more compact and lightweight.
- Furthermore, optimum sealing is guaranteed with the new Nylon rings that sit next to the O-rings, so leaking will be a thing of the past!
- The body is CNC-machined from a single piece of 6061-T6 aluminium, which replaces the standard Nylon material from HS33 brakes.
- Ideal to replace a damaged piston, which can cause a significant loss of power and worsen the overall braking performance.
- Since it’s made from aluminium, the brake can now be water-bled without the previous ‘swelling’ issues in standard brakes.
- Features two O-rings, each one along with a Nylon ring to guarantee optimum sealing.
- Two options available: with a 13mm diameter (suitable for Racing Line Nano levers and those that require a Ø13mm piston) or with a 14mm diameter (suitable for Magura HS33, Racing Line and all those levers that require a Ø14mm piston).
- Anodized red finish.
- Sold singly.

Dimensions
- Length: 14.5mm
- Diameter: 13mm or 14mm

Finishes
- Anodized red

Weight
- 3g (13mm) and 4g(14mm)

Additional information
- Please note: it’s highly recommended to use a dab of grease or some oil when fitting.
