Clean Pro Trials Stem Expand

Clean Pro Trials Stem

CLEAN CLEAN

New

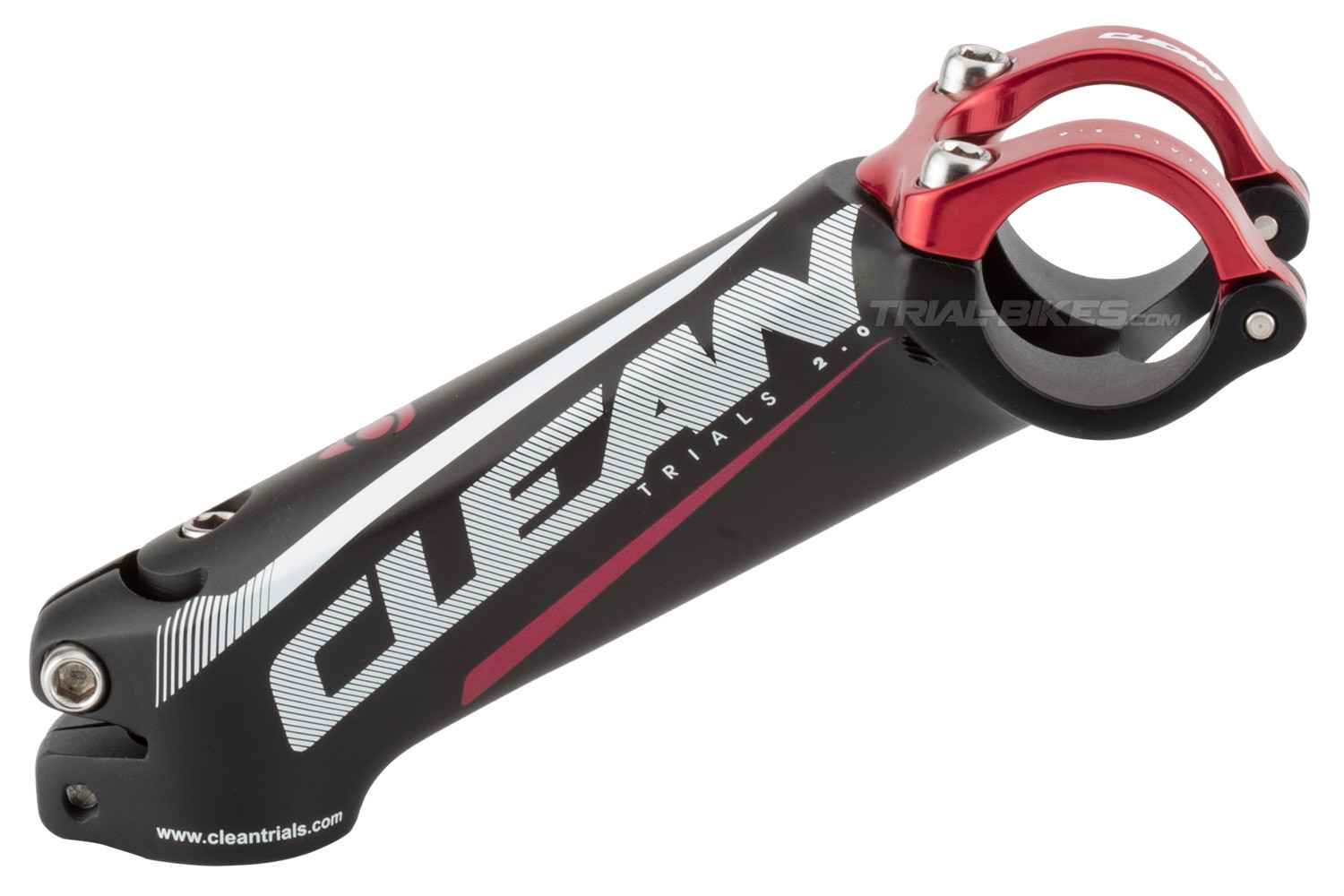

New-generation Clean Pro Trials stem. 100% exclusive, innovative design, with an integrated top cap and a new steel handlebar clamp, much stronger, with inner markings that ensure the handlebar stays in place while riding.

More details

This product is no longer in stock

40,50€

Fill in the quantity for the Length / Rise .
 27.6º
 130.6mm

 141.6mm

 152.6mm

 163.6mm

Ask a question
rating Ver la opinión
Valoración media: 10/10 - Nº valoraciones: 1

Clean Pro Trials Stem

Description and materials
- High-end Clean Pro Trials stem.
- 100% exclusive design by Clean, developed for months by Clean trials riders Abel Mustieles, Benito Ros, Sebas Ruiz and Ion Areitio.
- This stem features two main innovations:
· The top cap is integrated into the stem body, with a minimalistic design which helps save weight and ease installation.
· The handlebar clamp is made in a single piece of steel, much stronger and durable. Moreover, it has a new hinge design (just 2 screws) and inner markings that increase grip.
- The stem body is made in mold from 6061-T6 aluminium alloy with maximal dimensional accuracy, optimizing strength and stiffness.
- Sloping steerer clamp requires a flat steerer tube: this increases reliability and allows for a more secure grip.
- 4 different sizes available.

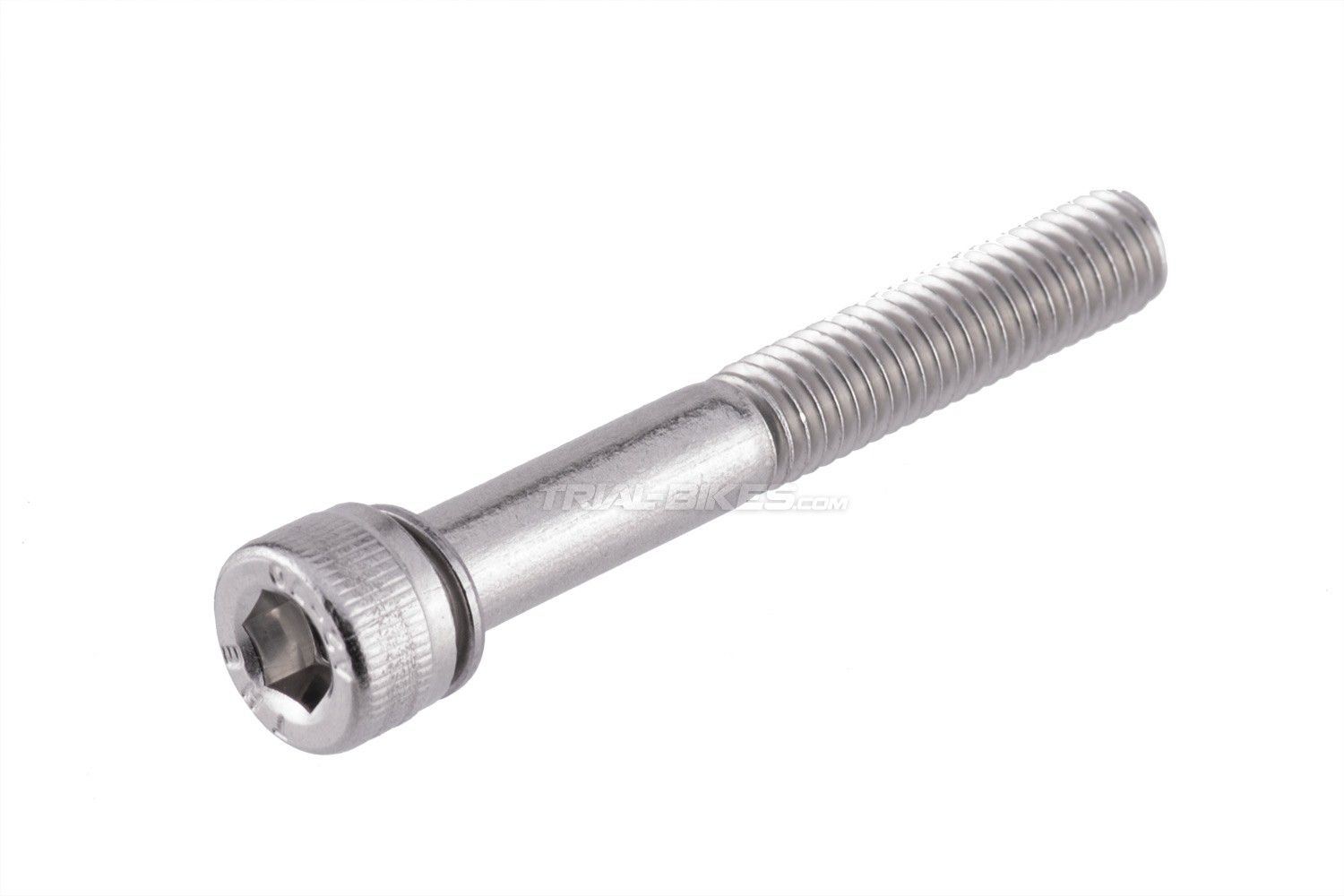

- Supplied with all 3 steel bolts: 2x M6x18mm bolts and 1x M6x45mm preload bolt.

Sizes
· 130.6mm x 27.6º.
· 141.6mm x 27.6º.
· 152.6mm x 27.6º.
· 163.6mm x 27.6º.

- Handlebar diameter: Ø 31.8mm
- Steerer clamp height: 34mm

Compatible with:

- Forks with steerer tube cut flat.
- 31.8mm Oversized handlebars (most trials handlebars).

Recommended use
- 130.6mm x 27.6º: ideal for kids bikes and 26” bikes.
- 141.6mm x 27.6º: ideal for 20” bikes and 26” bikes.
- 152.6mm x 27.6º: ideal for 20” bikes and 26” bikes.
- 163.6mm x 27.6º: ideal for 20” bikes.

Colour
- Anodized black stem body, with white and red Clean graphics.
- Red handlebar clamp, with white Clean logo.

Weight
- 240.12g (130.6mm x 27.6º), 246.04g (141.6mm x 27.6º), 246.58g (152.6mm x 27.6º) y 248.98g (163.6mm x 27.6º), + 11.50g M6x45mm steel bolt.

Additional Information
Maximum torque for the bolts is 12Nm. Any damage to the handlebar clamp or threads because of excessive tightening won’t be covered under warranty.

COLOR Black
LENGTH Greater than 160mm
LENGTH 120mm - 160mm
RISE 25º - 30º
