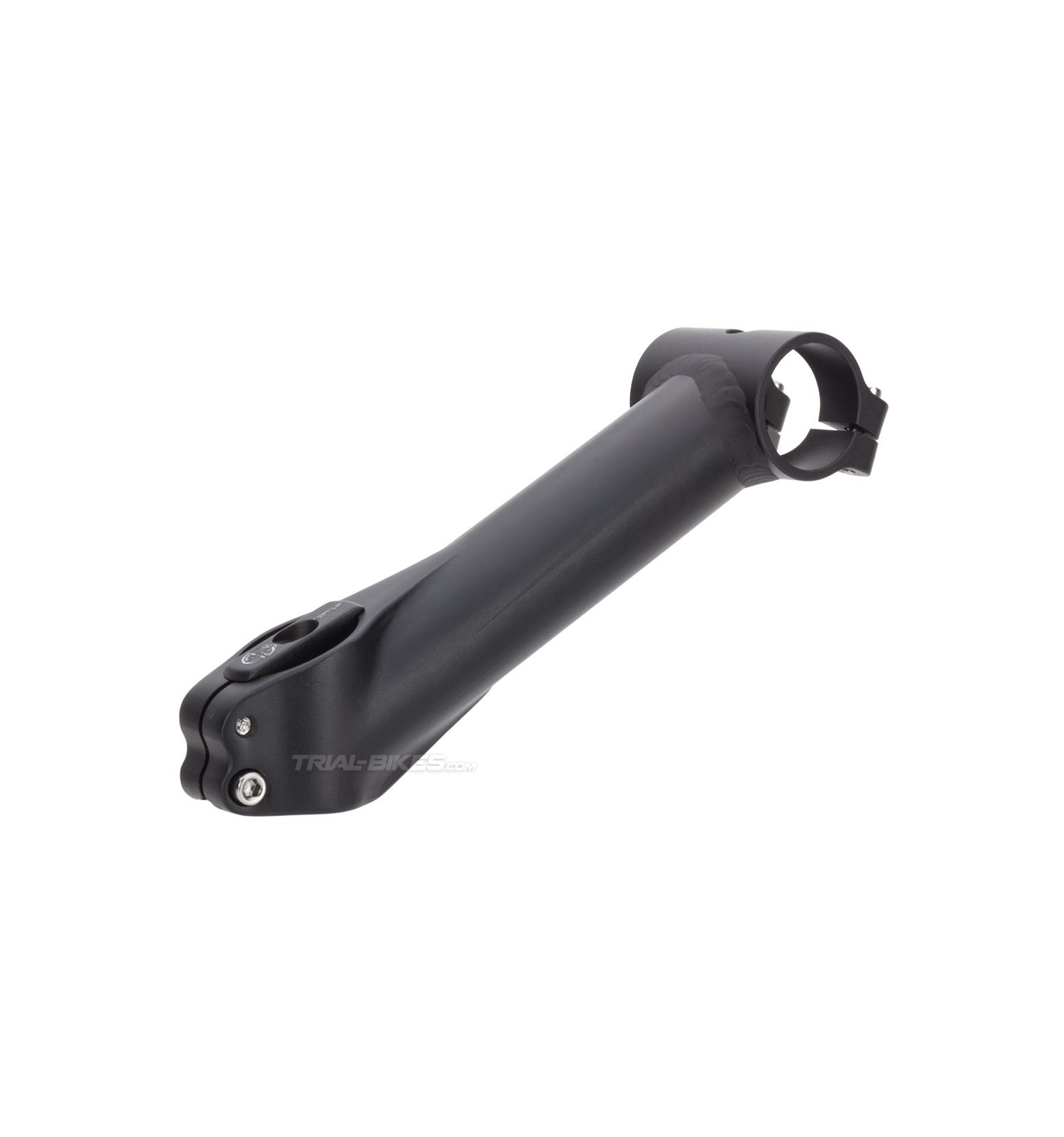

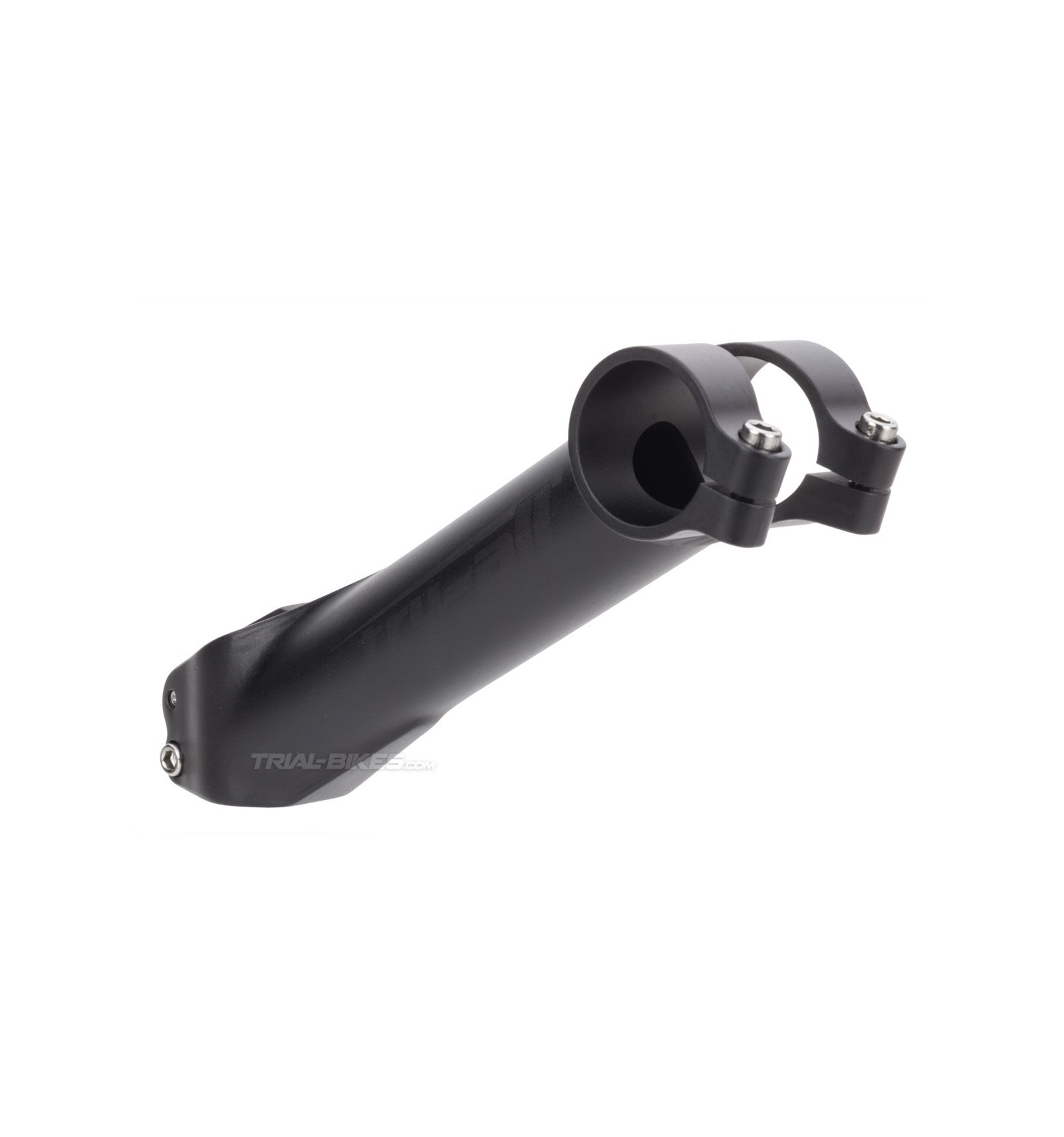

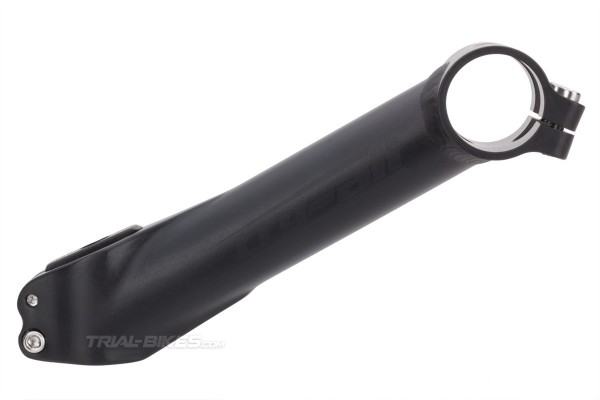

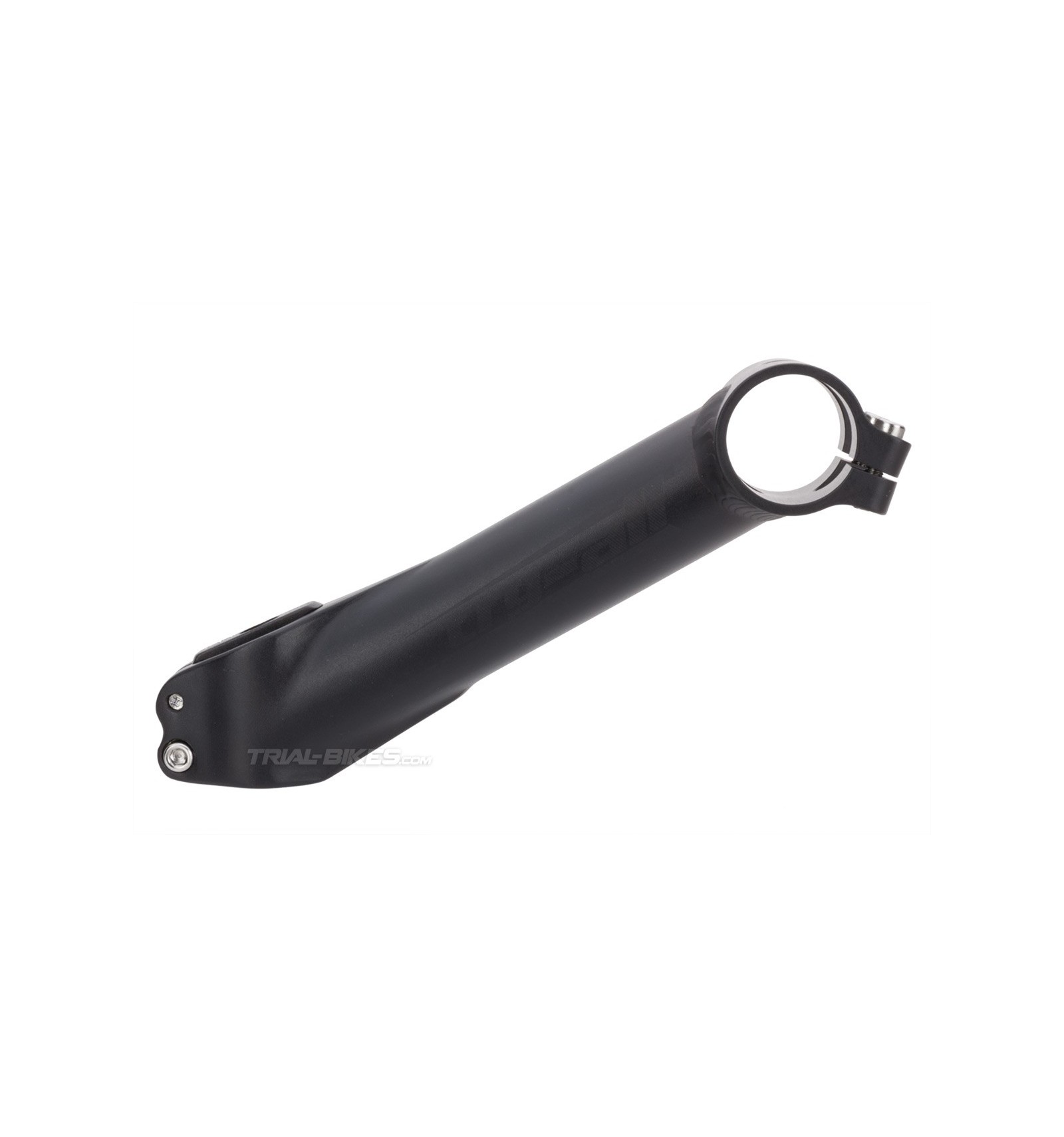

Try-All 3D Black Stem (with CNC Top Cap)

Description and materials
- Popular stem from French Biketrial component brand Try-All.
- This is the Try-All 3D 2013 150mmx30º stem, which originally had a silver finish, but we’ve anodized it in black colour in order to offer both finishes, that were no longer available.
- Due to the anodizing, the Try-All logo has now a darker tone.
- Forged in 6061-T6 aluminium alloy to achieve the perfect balance between low weight and high stiffness.
- The handlebar clamp is made from a single piece of aluminium, and uses 2 bolts to ensure the handlebar stays in place.
- 150mm long and a 30º angle, the ideal geometry for all 20” and 24” bikes, as well as 26” bikes with a high bottom bracket.
- Supplied with 4 M5x18mm titanium bolts (2x bar clamp and 2x steerer tube clamp).
- Suitable for all Ø31.8mm handlebars.

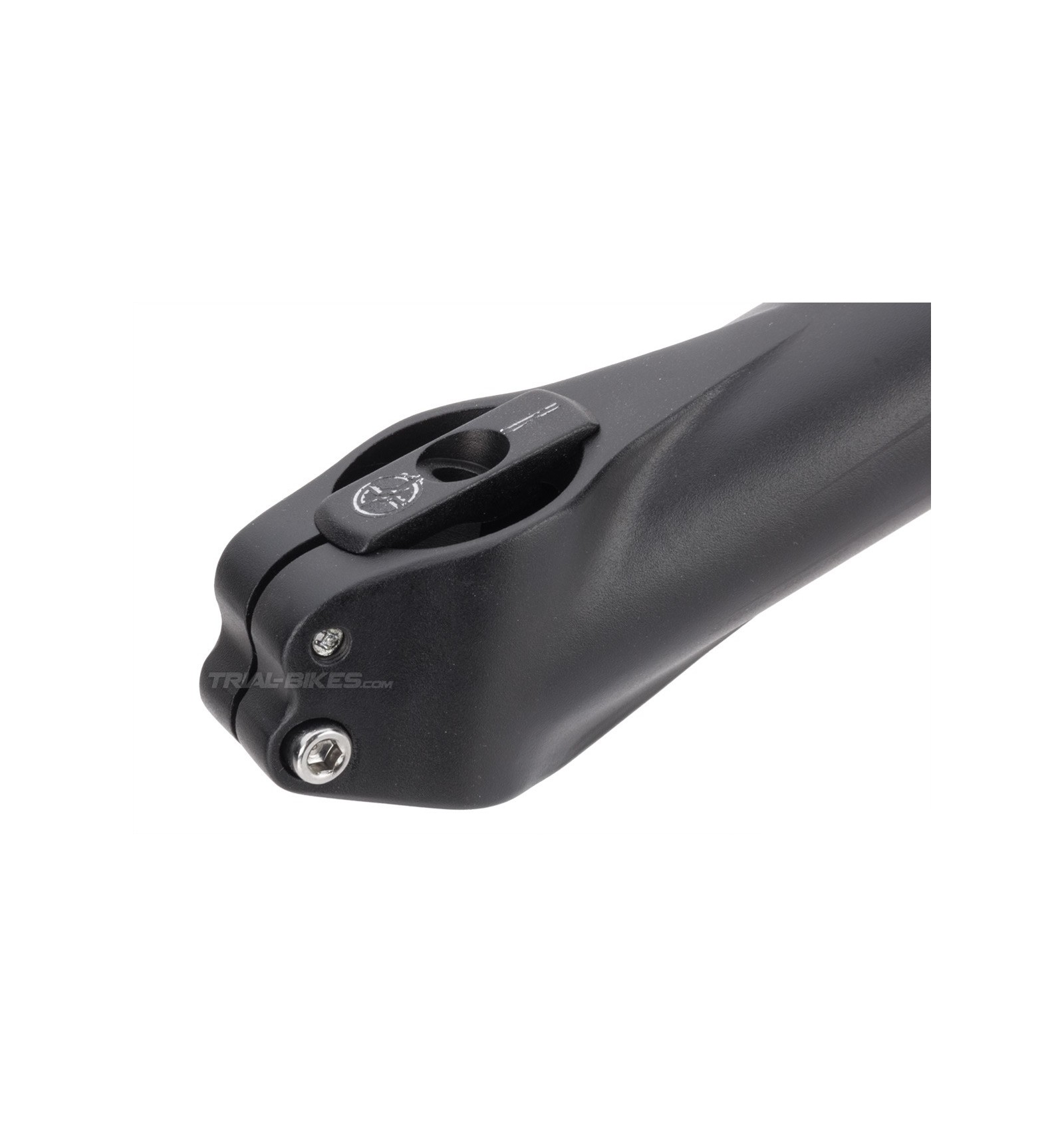

- Includes top cap and its titanium bolt, ready to set up!
- Sloping steerer clamp gives more clearance (only 44mm tall at the rear) and therefore helps prevent any knee injury.
- 150mm long and 30º angle (150mmx30º).
- Compatible with all Oversized (Ø31.8mm) handlebars.
- Supplied with top cap.
- Available in anodized black finish, with laser etched Try-All logo, in a dark tone due to the anodizing.

Length
- 150mm long
- Angle: 30º
- Steerer clamp length: 30mm (rear) and 44mm (front)
- Handlebar diameter: Ø 31.8mm
- 2+2 M5x18mm steel bolts

Finishes
- Available in anodized black finish, with laser etched Try-All logo, in a dark tone due to the anodizing.

Weight
- 202g (including steel bolts) + 5g (top cap)

Important tip for a correct setup
- Due to the bar clamps design, it’s recommended to insert a coin into each slot, then screw the bolts upside down to slowly open the slots and ease the handlebar setup. Please note! It’s very important to alternate each bolt to prevent the clamps from splitting, which would void the guarantee immediately.
