TrialBikes Headset Bearing

Reference:

Condition: New

Model:

7,44€

Add to Compare

Model .

A) 1- 1/8" - 30x41x6.5 - 36º/45º
B) 1/5" - 40x52x7 - 45º/45º
C) 1- 1/8" - 30x41.8x8 - 45º/45º
D) 1- 1/8" - 30x41x6.5 - 45º/45º
E) 1/5" - 40x52x8 - 45º/45º

Ask a question

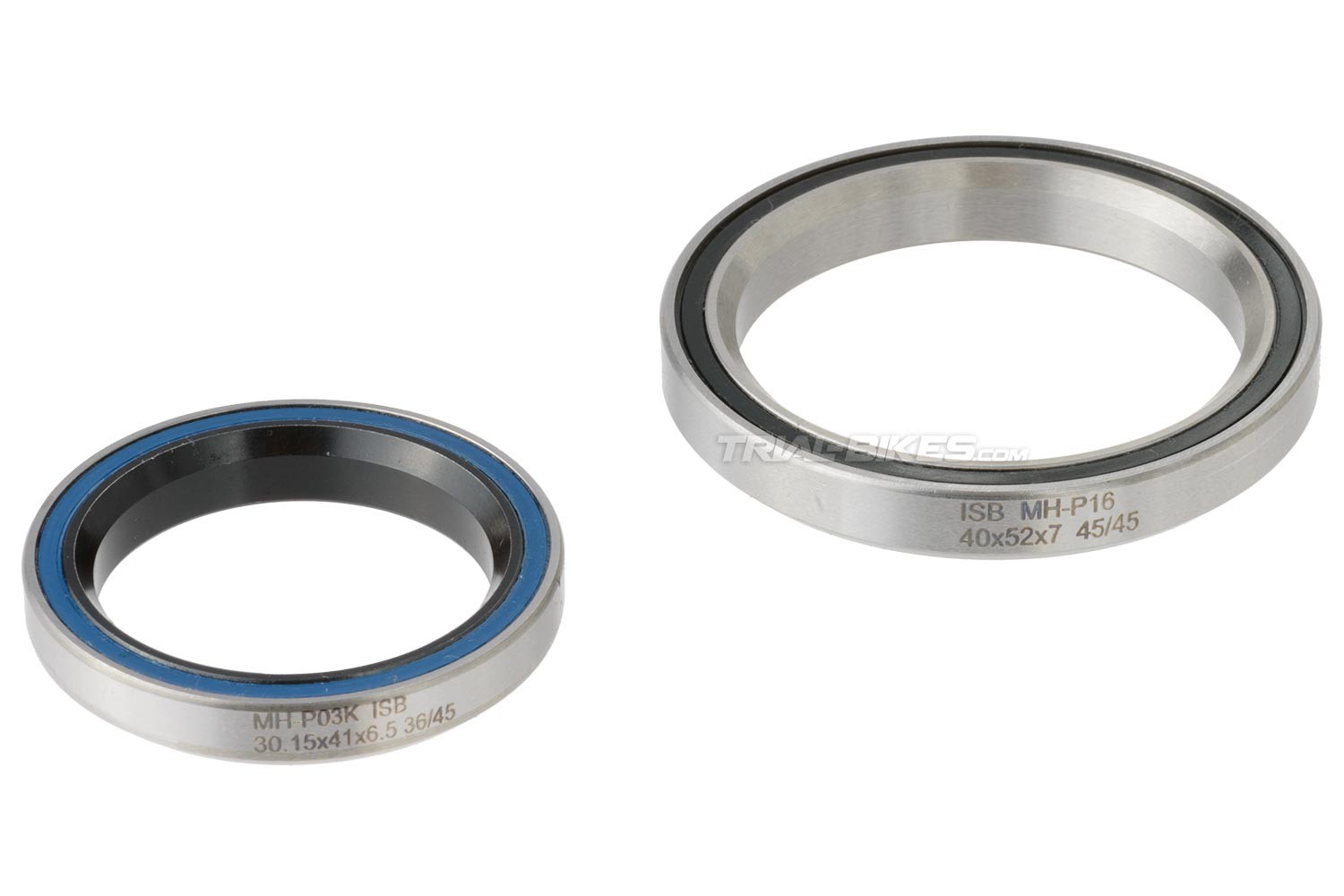

Trialbikes Headset Bearing

Description and materials
- New bearings for bicycle steering.
- Ideal to replace damaged or worn-out bearings.
- Manufactured from high quality chrome plated steel for increased durability.
- Double sealed construction ensures smooth spinning and durability.
- Non-contact rubber sealed bearing (LLB) reduces friction and prevents dirt from entering the bearing.
- Available in 2 models for 1-1/8" or 1.5" steering.
- Sold individually.

Dimensions
- Option A:

Inside diameter: 30.15 mm
Outside diameter: 41 mm
Thickness: 6.5 mm
Angles: 36º/45º

Medidas rodamiento dirección bicicleta

- Compatible with:

1-1/8" internal steering cups such as Clean, Crewkerz, Comas, Comas, Jitsie and all those with the same measurements.

- Option B:

Inside diameter: 40 mm.
Outside diameter: 52 mm.
Thickness: 7 mm.
Angles: 45º/45º.

Medidas rodamiento dirección bicicleta

- Compatible with:

1.5" internal steering cups such as Clean, Crewkerz, Comas, Comas, Jitsie and all those with the same measurements.

- Option C:

Inside diameter: 30.5 mm
Outside diameter: 41.8 mm
Thickness: 8 mm
Angles: 45º/45º

- Compatible with:

Play K1 frames, Hashtagg Headset and all those with the same measurements.

- Option D:

Inside diameter: 30.15 mm
Outside diameter: 41 mm
Thickness: 6.5 mm
Angles: 45º/45º

- Compatible with:

1-1/8" internal steering cups such as Clean, Crewkerz, Comas, Comas, Jitsie and all those with the same measurements.

- Option E:

Inside diameter: 40 mm.
Outside diameter: 52 mm.
Thickness: 8 mm.
Angles: 45º/45º.

Medidas rodamiento dirección bicicleta

- Compatible with:

1.5" internal steering cups such as Clean, Crewkerz, Comas, Comas, Jitsie and all those with the same measurements.

Finishes
- Blue (option A), black (option B and D) and red (option C and E).

Weight
- 19.60 g (Option D), 19.98 g (Option A), 31.36 g (Option B), 24.54 g (Option C) and 32.44 g (Option E).

Additional Information
Be sure to measure the outside diameter, inside diameter, width and angle of your current bearing to ensure you get the correct size.

If you are not sure which bearing you need, please contact us before ordering and we will be happy to assist you.
